EP82-AGHNU (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 4EF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )GI,GT,S,SI,SOL,SOLL,X,XLTD

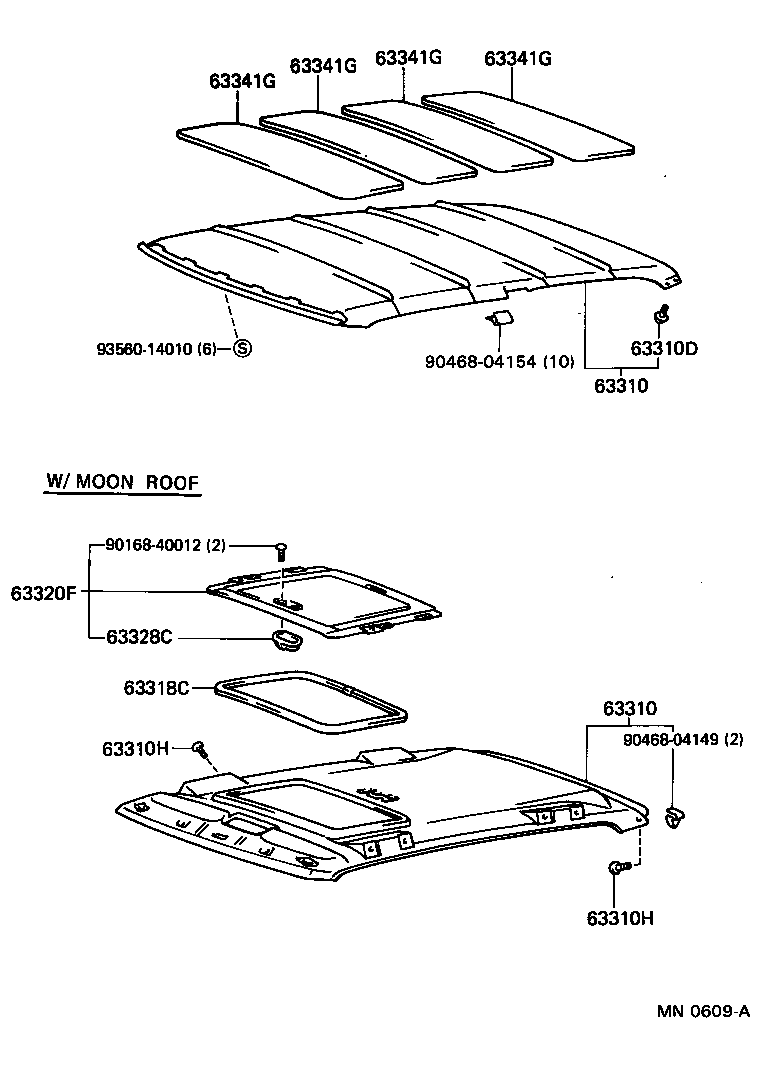

Click highlighted areas on diagram

diagram 63310 63310 63310D 63310H 63310H 63318C 63320F 63328C 63341G 63341G 63341G 63341G 9016840012 9046804149 9046804154 9356014010
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-1035003

EP8#,NP80..3D..(SOL,SOLL,XLTD)

GRAY,TRIM1#

 1
63310-1035003

EP82..3D..(GI,GT,S,SI)

GRAY,TRIM1#,8#

 1
63310-1026003

EP82,NP80..3D..(SOL,SOLL)

GRAY,TRIM1#

 1
63310-1026003

EP82..3D..(GI,GT,S,SI)

GRAY,TRIM1#,8#

 1
63310-1035003

EP85,NP80..3D;EP82..3D..SOL

GRAY,TRIM1#

 1
63310-1026006

EP82..3D..SOLL

SABLE,TRIM4#

 1
63310-1035003

EP82..3D..(GI,GT,S,SI)

GRAY,TRIM1#,8#

 1
63310-1035003

EP82..3D..(GI,GT,S,SI,SOLL)

GRAY,TRIM1#,8#

 1
63310-1031003

EP82..3D..(GI,GT,S,SI)

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),GRAY,TRIM1#,8#

 1
63310-1035006

EP8#..3D..(SOLL,XLTD)

SABLE,TRIM4#

 1
63310-1035003

EP8#,NP80..3D..(SOL,SOLL,XLTD)

GRAY,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-1035003

EP8#,NP80..3D..(SOL,SOLL,XLTD)

GRAY,TRIM1#

 1
63310-1035003

EP82..3D..(GI,GT,S,SI)

GRAY,TRIM1#,8#

 1
63310-1026003

EP82,NP80..3D..(SOL,SOLL)

GRAY,TRIM1#

 1
63310-1026003

EP82..3D..(GI,GT,S,SI)

GRAY,TRIM1#,8#

 1
63310-1035003

EP85,NP80..3D;EP82..3D..SOL

GRAY,TRIM1#

 1
63310-1026006

EP82..3D..SOLL

SABLE,TRIM4#

 1
63310-1035003

EP82..3D..(GI,GT,S,SI)

GRAY,TRIM1#,8#

 1
63310-1035003

EP82..3D..(GI,GT,S,SI,SOLL)

GRAY,TRIM1#,8#

 1
63310-1031003

EP82..3D..(GI,GT,S,SI)

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),GRAY,TRIM1#,8#

 1
63310-1035006

EP8#..3D..(SOLL,XLTD)

SABLE,TRIM4#

 1
63310-1035003

EP8#,NP80..3D..(SOL,SOLL,XLTD)

GRAY,TRIM1#

 1
63310D - CLIP, ROOF HEADLINING
90467-0616101

EP82,NP80..SOLL,X

BLACK,TRIM1#,4#

 4
90467-0616101

EP82..GI,GT,S,SI

BLACK,TRIM1#,8#

 4
90467-0616101

EP82,NP80..CAN,CANSI,SOL

BLACK,TRIM1#

 4
63310H - CLIP(FOR ROOF HEADLINING)
90467-06048B1

EP82..GI,GT,S,SI

LIGHT GRAY,TRIM1#,8#

 4
63310H - CLIP(FOR ROOF HEADLINING)
90467-06048B1

EP82..GI,GT,S,SI

LIGHT GRAY,TRIM1#,8#

 4
63318C - MOULDING, SUN ROOF OPENING TRIM
63318-1004003

EP82..GI,GT,S,SI

GRAY,TRIM1#,8#

 1
63320F - HEADLINING ASSY, SUN ROOF
63320-1003003

EP82..GI,GT,S,SI

GRAY,TRIM1#,8#

 1
63328C - KNOB, SUNSHADE TRIM
63328-2201013

EP82..GI,GT,S,SI

SHADOW GRAY,TRIM1#,8#

 1
63341G - PAD, ROOF SILENCER
63341-10060

EP8#,NP80..GI,GT,S,SI,SOL,SOLL,X,XLTD

 4
63341G - PAD, ROOF SILENCER
63341-10060

EP8#,NP80..GI,GT,S,SI,SOL,SOLL,X,XLTD

 4
63341G - PAD, ROOF SILENCER
63341-10060

EP8#,NP80..GI,GT,S,SI,SOL,SOLL,X,XLTD

 4
63341G - PAD, ROOF SILENCER
63341-10060

EP8#,NP80..GI,GT,S,SI,SOL,SOLL,X,XLTD

 4
Common parts
90168-40012
90468-04149
90468-04154
93560-14010
