EP82-AGHNU (1989)
Toyota Starlet
(8912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55311-1018004 |
EP82..GI,GT,S,SI BLUE,TRIM8# |
1 | ||
| 55311-1018003 |
EP8#,NP80 GRAY,TRIM1# |
1 | ||
| 55311-1018004 |
EP82..GI,GT,S,SI BLUE,TRIM8# |
1 | ||
| 55311-1018004 |
EP82..GI,GT,S,SI,SOLL BLUE,TRIM8# |
1 | ||
| 55311-1018006 |
EP8#,NP80..SOLL,X,XLTD SABLE,TRIM4# |
1 | ||
| 55303A - STAY SUB-ASSY, INSTRUMENT PANEL | ||||
| 55303-10100 |
EP82..SOL ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 55303-10090 |
EP82..SOL |
1 | ||
| 55303-10100 |
EP8#..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD |
1 | ||
| 55303A - STAY SUB-ASSY, INSTRUMENT PANEL | ||||
| 55303-10100 |
EP82..SOL ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 55303-10090 |
EP82..SOL |
1 | ||
| 55303-10100 |
EP8#..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD |
1 | ||
| 55304A - STAY SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55304-10050 |
EP82..SOL |
1 | ||
| 55304-10060 |
NP80;EP8#..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD |
1 | ||
| 55304-10060 |
EP82..SOL ｱﾘ(ｺﾝｿ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 55304A - STAY SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55304-10050 |
EP82..SOL |
1 | ||
| 55304-10060 |
NP80;EP8#..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD |
1 | ||
| 55304-10060 |
EP82..SOL ｱﾘ(ｺﾝｿ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-10070 |
EP8#,NP80 |
1 | ||
| 55321C - STAY, INSTRUMENT PANEL, NO.5 | ||||
| 55321-10140 |
EP82..SOL |
1 | ||
| 55322A - BRACKET, INSTRUMENT PANEL, NO.2 | ||||
| 55322-10070 |
EP8#,NP80 |
1 | ||
| 55325B - BRACKET, INSTRUMENT PANEL, NO.5 | ||||
| 55325-10090 |
EP8#,NP80 |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-10030 |
EP8#,NP80 |
1 | ||
| 55329B - STAY, INSTRUMENT PANEL, NO.4 | ||||
| 55329-10020 |
EP82..SOL |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-10080 |
EP82 |
1 | ||
| 55330-10080 |
EP8# |
1 | ||
| 55366A - BRACKET, RADIO MOUNTING, NO.1 | ||||
| 55366-10030 |
EP8#,NP80 |
1 | ||
| 55368A - BRACKET, RADIO MOUNTING, NO.2 | ||||
| 55368-10030 |
EP8#,NP80 |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-10020 |
EP8#,NP80 |
1 | ||
| 55381B - BRACKET, FINISH PANEL MOUNTING, NO.1 | ||||
| 55381-10050 |
EP82..SOL |
1 | ||
| 55381-10050 |
NP80;EP8#..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD |
1 | ||
| 55382 - BRACKET, FINISH PANEL MOUNTING, NO.2 | ||||
| 55382-10040 |
NP80;EP8#..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD |
1 | ||
| 55382-10040 |
EP82..SOL |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-1023004 |
EP82..GI,GT,S,SI BLUE,TRIM8# |
1 | ||
| 55401-1023006 |
EP8#,NP80..SOLL,X,XLTD SABLE,TRIM4# |
1 | ||
| 55401-1023004 |
EP82..GI,GT,S,SI BLUE,TRIM8# |
1 | ||
| 55401-1023004 |
EP82..GI,GT,S,SI,SOLL BLUE,TRIM8# |
1 | ||
| 55401-1023003 |
EP8#,NP80 GRAY,TRIM1# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-10300 |
EP8#,NP80 |
1 | ||
| 55422A - PANEL, INSTRUMENT CLUSTER FINISH, LOWER | ||||
| 55422-10090 |
EP85..SOLL;EP82,NP80..CBR,DSL;EP82..(SOL,SOLL)..EFI |
1 | ||
| 55422-10100 |
EP82..S,X ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-1004004 |
EP82..S BLUE,TRIM8# |
1 | ||
| 55432-1005003 |
EP82..S,X ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),GRAY,TRIM1# |
1 | ||
| 55432-1004006 |
EP8#,NP80..SOLL,X SABLE,TRIM4# |
1 | ||
| 55432-1004004 |
EP82..S BLUE,TRIM8# |
1 | ||
| 55432-1004004 |
EP82..S,SOLL BLUE,TRIM8# |
1 | ||
| 55432-1004003 |
EP85..SOLL;EP82,NP80..CBR,DSL;EP82..(SOL,SOLL)..EFI GRAY,TRIM1# |
1 | ||
| 55432-1005004 |
EP82..S ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),BLUE,TRIM8# |
1 | ||
| 55449D - BASE, SWITCH | ||||
| 55449-10070 |
EP8#,NP80 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-1007006 |
EP8#,NP80..SOLL,X,XLTD SABLE,TRIM4# |
1 | ||
| 55550-1007004 |
EP82..GI,GT,S,SI,SOLL BLUE,TRIM8# |
1 | ||
| 55550-1007004 |
EP82..GI,GT,S,SI BLUE,TRIM8# |
1 | ||
| 55550-1007004 |
EP82..GI,GT,S,SI BLUE,TRIM8# |
1 | ||
| 55550-1007003 |
EP8#,NP80 GRAY,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
NP80;EP8#..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD |
1 | ||
| 55521-16030 |
EP82..SOL |
1 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-10010 |
EP8#,NP80..CBR,DSL,EFI |
1 | ||
| 55524B - COVER, SWITCH BASE HOLE | ||||
| 55524-10010 |
EP82,NP80..SOL |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-1004003 |
EP82,NP80..SOL GRAY,TRIM1# |
1 | ||
| 55536B - COVER, LIGHT CONTROL SWITCH HOLE | ||||
| 55536-10010 |
EP8#,NP80 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-1004006 |
EP8#,NP80..SOLL,X,XLTD SABLE,TRIM4# |
1 | ||
| 55539-1004004 |
EP82..S,SI,SOLL BLUE,TRIM8# |
1 | ||
| 55539-1004003 |
EP85..CBR;EP8#..(CANSI,SI,SOL,SOLL)..EFI;EP82,NP80..(CAN,S,SOL,SOLL,X)..(CBR,DSL) GRAY,TRIM1# |
1 | ||
| 55539-1004004 |
EP82..S,SI BLUE,TRIM8# |
1 | ||
| 55539-1004004 |
EP82..S,SI BLUE,TRIM8# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-1004004 |
EP82..GI,GT,S,SI BLUE,TRIM8# |
1 | ||
| 55539-1004004 |
EP82..GI,GT,S,SI,SOLL BLUE,TRIM8# |
1 | ||
| 55539-1004004 |
EP82..GI,GT,S,SI BLUE,TRIM8# |
1 | ||
| 55539-1004006 |
EP8#,NP80..SOLL,X,XLTD SABLE,TRIM4# |
1 | ||
| 55539-1004003 |
EP8#,NP80 GRAY,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-1004004 |
EP82..GI,GT,S,SI BLUE,TRIM8# |
1 | ||
| 55539-1004003 |
EP8#,NP80 GRAY,TRIM1# |
1 | ||
| 55539-1004004 |
EP82..GI,GT,S,SI,SOLL BLUE,TRIM8# |
1 | ||
| 55539-1004006 |
EP8#,NP80..SOLL,X,XLTD SABLE,TRIM4# |
1 | ||
| 55539-1004004 |
EP82..GI,GT,S,SI BLUE,TRIM8# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55617-1001011 |
EP8#,NP80..SOLL,X,XLTD BLACK,TRIM1#,4# |
1 | ||
| 55617-1001011 |
EP82..GI,GT,S,SI BLACK,TRIM1#,8# |
1 | ||
| 55617-1001011 |
EP82,NP80..CAN,CANSI,SOL BLACK,TRIM1# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-1006004 |
EP82..GI,GT,S,SI BLUE,TRIM8# |
1 | ||
| 55545-1006006 |
EP8#..SOLL,X,XLTD SABLE,TRIM4# |
1 | ||
| 55545-1006003 |
EP8# GRAY,TRIM1# |
1 | ||
| 55545-1006004 |
EP82..GI,GT,S,SI,SOLL BLUE,TRIM8# |
1 | ||
| 55545-1006004 |
EP82..GI,GT,S,SI BLUE,TRIM8# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-10030 |
EP8#,NP80 |
1 | ||
| 55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR | ||||
| 55558-10010 |
EP8#,NP80 |
1 | ||
| 55562A - LINK, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55562-10010 |
EP8#,NP80 |
2 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-1001004 |
EP82..GI,GT,S,SI,SOLL BLUE,TRIM8# |
1 | ||
| 55565-1001004 |
EP82..GI,GT,S,SI BLUE,TRIM8# |
1 | ||
| 55565-1001006 |
EP8#,NP80..SOLL,X,XLTD SABLE,TRIM4# |
1 | ||
| 55565-1001004 |
EP82..GI,GT,S,SI BLUE,TRIM8# |
1 | ||
| 55565-1001003 |
EP8#,NP80 SHADOW GRAY,TRIM1# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-1011004 |
EP82..GI,GT,S,SI BLUE,TRIM8# |
1 | ||
| 55650-1011003 |
EP8#,NP80 GRAY,TRIM1# |
1 | ||
| 55650-1011004 |
EP82..GI,GT,S,SI,SOLL BLUE,TRIM8# |
1 | ||
| 55650-1011004 |
EP82..GI,GT,S,SI BLUE,TRIM8# |
1 | ||
| 55650-1011006 |
EP8#,NP80..SOLL,X,XLTD SABLE,TRIM4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-1004004 |
EP82..GI,GT,S,SI,SOLL BLUE,TRIM8# |
1 | ||
| 55660-1004003 |
EP8#,NP80 GRAY,TRIM1# |
1 | ||
| 55660-1004004 |
EP82..GI,GT,S,SI BLUE,TRIM8# |
1 | ||
| 55660-1004006 |
EP8#,NP80..SOLL,X,XLTD SABLE,TRIM4# |
1 | ||
| 55660-1004004 |
EP82..GI,GT,S,SI BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90119-06106 | ||||
| 90119-08650 | ||||
| 90159-60307 | ||||
| 90159-60425 | ||||
| 90167-50002 | ||||
| 90179-06009 | ||||
| 90179-08102 | ||||
| 90183-05009 | ||||
| 90183-05094 | ||||
| 90467-14036 | ||||
| 90468-04157 | ||||
| 90468-07019 | ||||
| 90508-09012 | ||||
| 90540-04008 | ||||
| 90541-03015 | ||||
| 90541-05020 | ||||
| 91651-60816 | ||||
| 91656-60820 | ||||
| 93530-55016 | ||||
| 93567-15014 | ||||
| 93567-55014 | ||||
| 93568-55018 | ||||

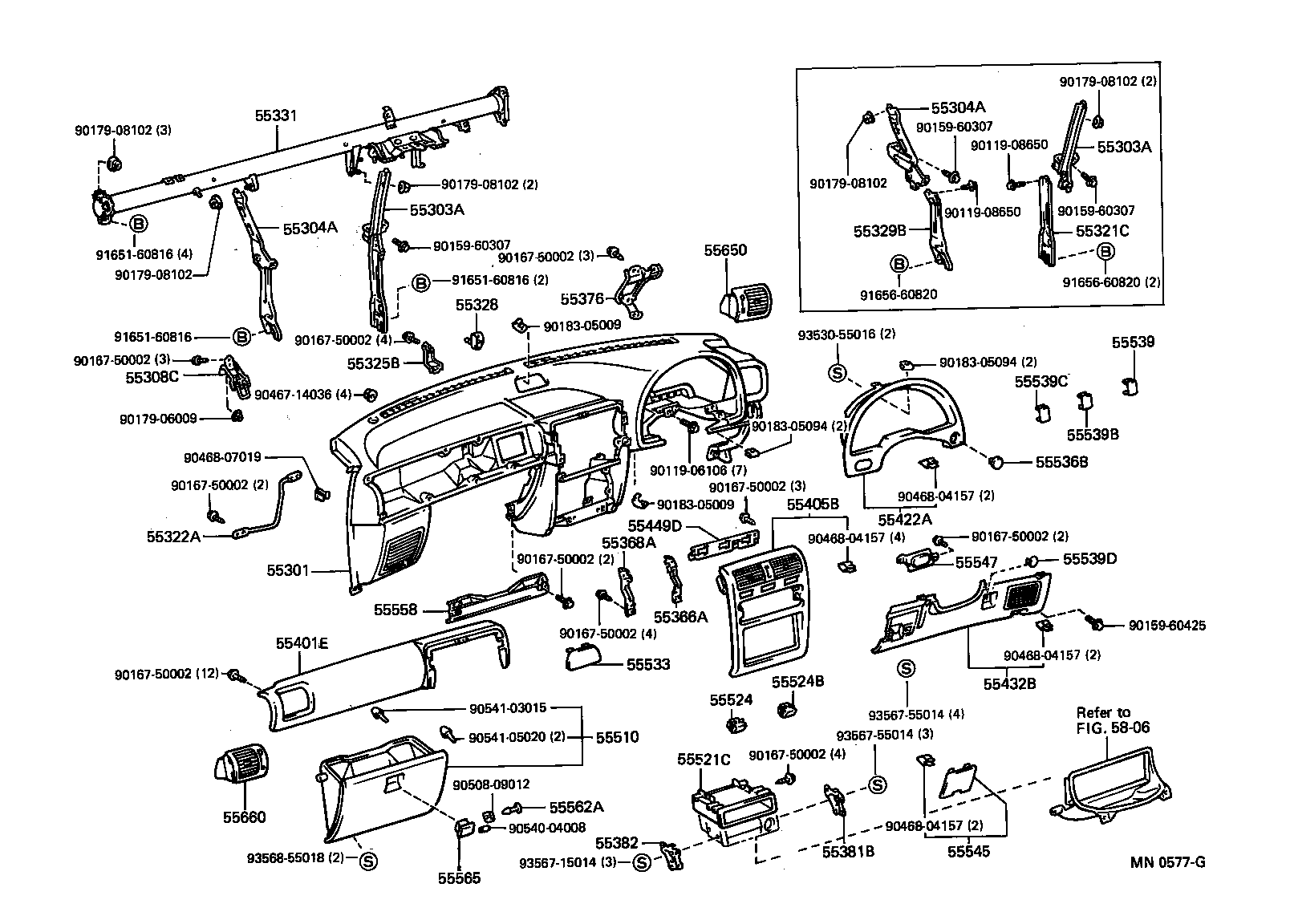

| Linked diagrams | ||||
| 5806 | ||||
