EP82-AGHNU (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 4EF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8912-9201)4EF

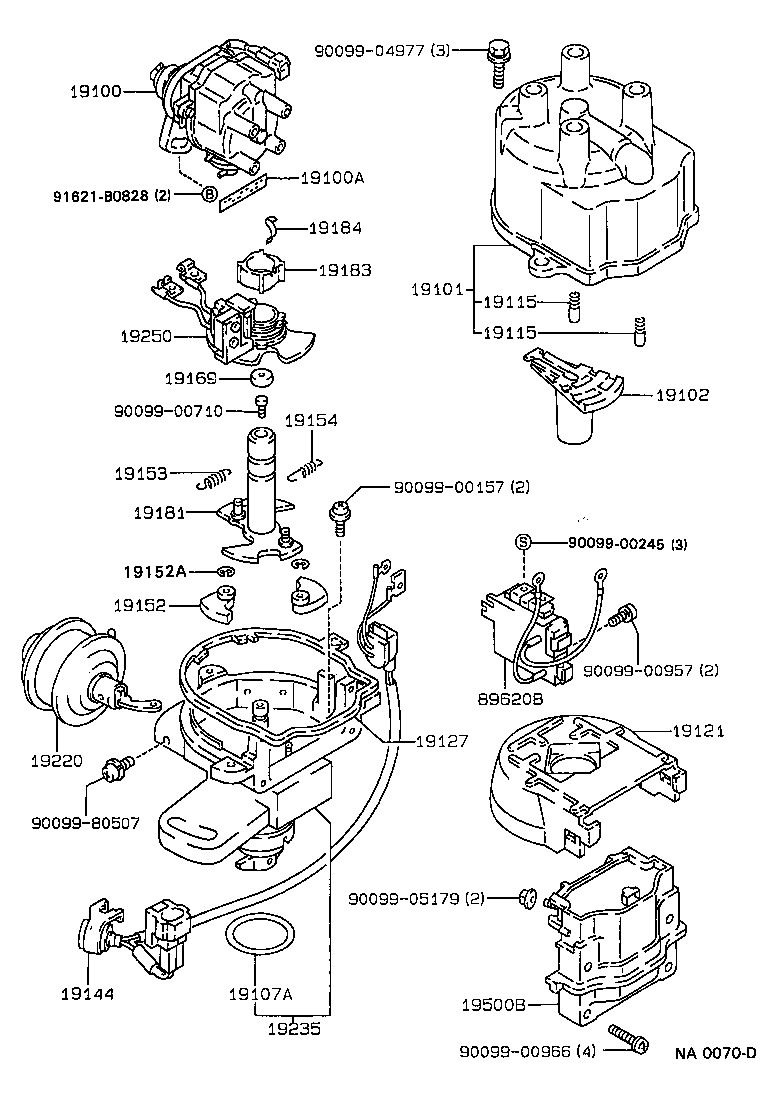

Click highlighted areas on diagram

diagram 19100 19100A 19101 19102 19107A 19115 19115 19121 19127 19144 19152 19152A 19153 19154 19169 19181 19183 19184 19220 19235 19250 19500B 89620B 9009900157 9009900245 9009900710 9009900957 9009900966 9009904977 9009905179 9009980507 91621B0828
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19020-11260

4EF..EP82

 1
19100A - TAPE, SEALING
90919-24004

4EF#..EP8#

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-11260

4EF..EP8#

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-11031

4EF,4EFE..EP8#

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14088

4EF#..EP8#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

4EF,4EFE..EP8#

 2
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

4EF,4EFE..EP8#

 2
19121 - COVER, DUST PROOF
19121-11080

4EF,4EFE..EP8#

 1
19127 - PACKING, DUST PROOF
19127-15120

4EF,4EFE..EP8#

 1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-11260

4EF..EP8#

 1
19152 - WEIGHT, GOVERNOR
19152-15160

4EF..EP8#

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07122

4EF..EP82

 2
19153 - SPRING, GOVERNOR, A
19153-11260

4EF..EP8#

 1
19154 - SPRING, GOVERNOR, B
19154-11260

4EF..EP8#

 1
19169 - STOPPER, CAM GREASE
19169-63011

4EF..EP8#

 1
19181 - ROTOR, DISTRIBUTOR, SIGNAL
19181-11034

4EF..EP8#

 1
19183 - ROTOR, SIGNAL
19183-15010

4EF..EP8#

 1
19184 - SPRING, ROTOR SET
19184-63010

4EF..EP8#

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-11260

4EF..EP82

 1
19235 - HOUSING, DISTRIBUTOR
19235-11260

4EF..EP8#

 1
19250 - GENERATOR ASSY, SIGNAL
19251-16100

4EF..EP8#

 1
19500B - COIL ASSY, IGNITION
90919-02164

4EF,4EFE..EP8#

 1
89620B - IGNITER ASSY
89620-12340

EP8#..CBR

 1
Common parts
90099-00157
90099-00245
90099-00710
90099-00957
90099-00966
90099-04977
90099-05179
90099-80507
91621-B0828
