EP82-AGHDU (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 4EF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8912-9601)

Click highlighted areas on diagram

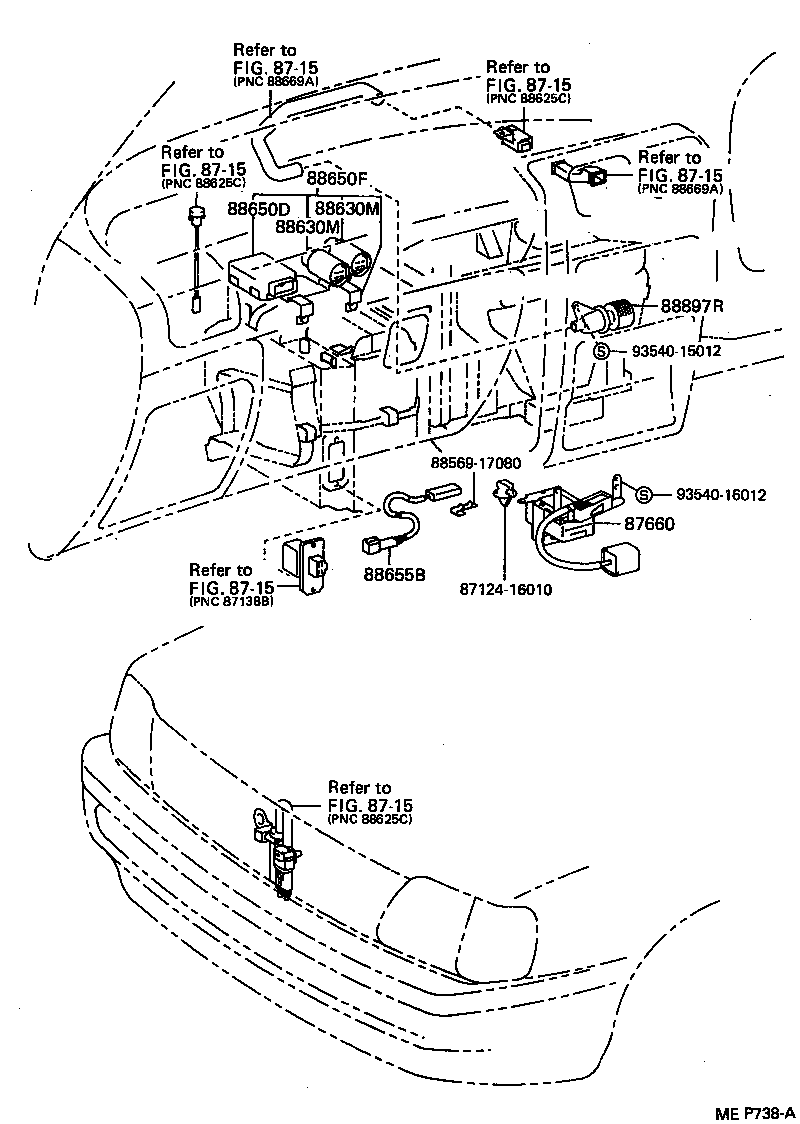

AUTO AIR CONDITIONER PARTS

diagram 8712416010 8715 8715 8715 8715 8715 8715 87660 8856917080 88630M 88630M 88650D 88650F 88655B 88897R 9354015012 9354016012
Part # Description Qty Price
87660 - SERVO ASSY, AIR CONDITIONER
88660-10030

EP8#..(CAN,SOLL)..EFI;EP8#..CANSI,GI,GT,S,SI,X,XLTD

 1
88630M - RELAY ASSY, COOLER
88630-95702

EP8#..(3FC,5F)..(GI,S,SI,X,XLTD)

 2
88630M - RELAY ASSY, COOLER
88630-95702

EP8#..(3FC,5F)..(GI,S,SI,X,XLTD)

 2
88650D - AMPLIFIER ASSY
88650-10340

EP8#..(CAN,SOLL)..EFI;EP8#,NP80..CANSI,GI,GT,S,SI,X,XLTD

 1
88650F - AMPLIFIRE & ACCESSORY ASSY, AIR CONDITIONER
88650-10320

EP8#..CANSI,GI,GT,S,SI,X,XLTD

 1
88655B - SWITCH, WATER TEMPERATURE
88625-10070

EP8#..(CAN,SOLL)..EFI;EP8#..CANSI,GI,GT,S,SI,X,XLTD

 1
88897R - ASPIRATOR
88897-20110

EP8#..(CAN,SOLL)..EFI;EP8#..CANSI,GI,GT,S,SI,X,XLTD

 1
Common parts
87124-16010
88569-17080
93540-15012
93540-16012
Linked diagrams
8715

ILLUST NO. 1 OF 2(8912-9601)

Click highlighted areas on diagram

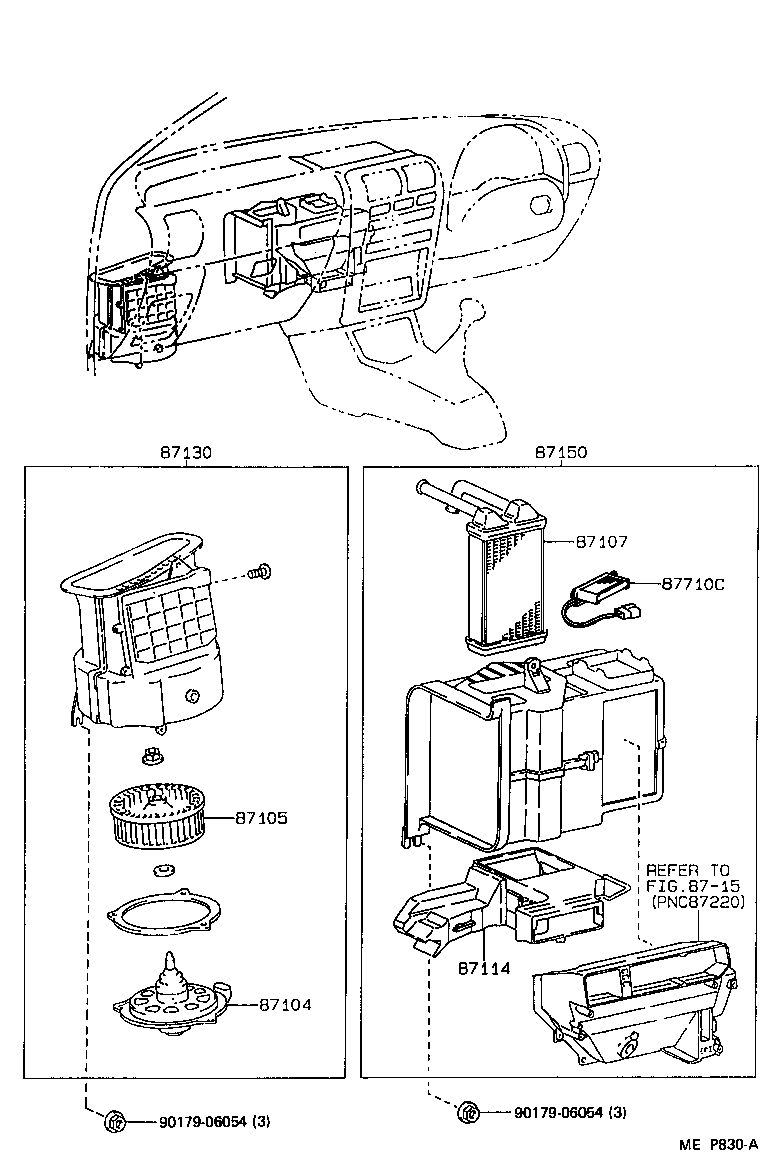

LEVER TYPE

diagram 87104 87105 87107 87114 87130 8715 87150 87710C 9017906054 9017906054
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-10210

EP8#,NP80

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030

EP8#,NP80

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-10240

EP8#

 1
87107-10250

EP8#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87114 - COVER, HEATER
87114-10060

EP8#,NP80

 1
87114-10070

EP8#,NP80

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-10230

EP8#,NP80..CAN,GI,S,SI,SOL,SOLL,X

 1
87150 - RADIATOR ASSY, HEATER
87150-10320

EP8#..CAN,GI,S,SI,SOL,SOLL,X

 1
87150-10330

EP8#..CAN,GI,S,SI,SOL,SOLL,X

ｶﾝﾚｲﾁ ｼﾖｳ

 1
Common parts
90179-06054
Linked diagrams
8715

ILLUST NO. 1 OF 2(8912-9601)

Click highlighted areas on diagram

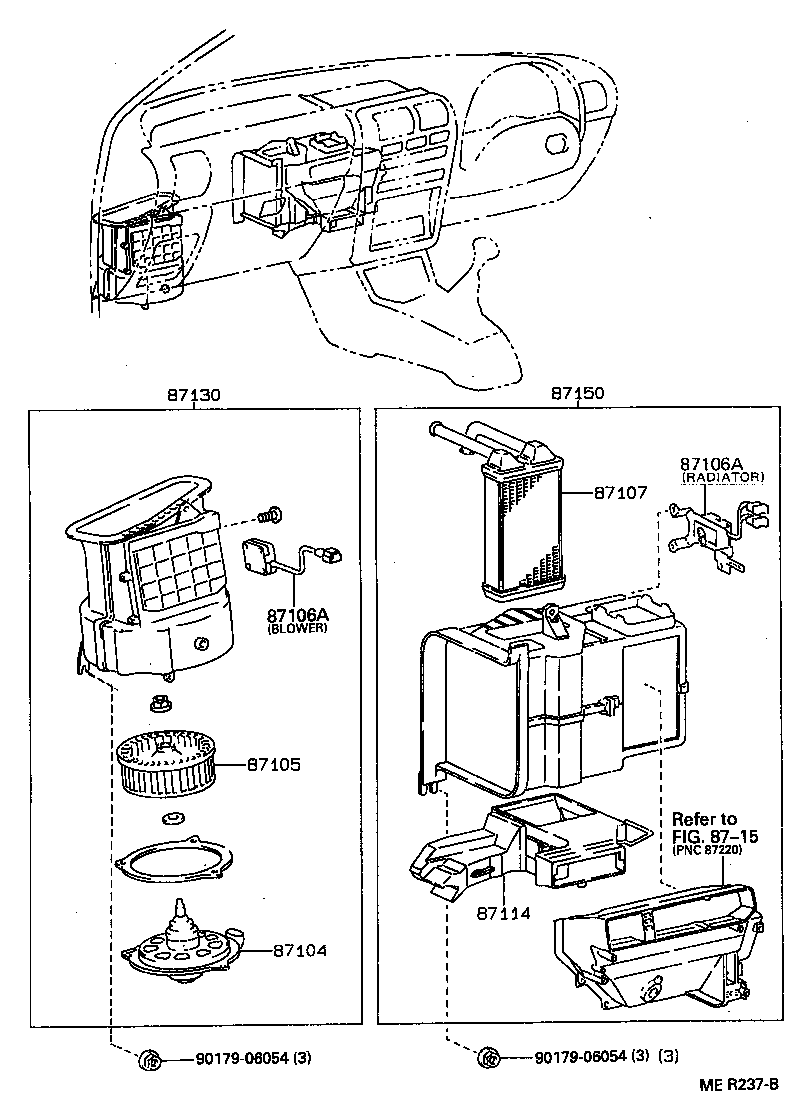

PUSH TYPE

diagram 87104 87105 87106A 87106A 87107 87114 87130 8715 87150 9017906054 9017906054
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-10210

EP8#,NP80

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030

EP8#,NP80

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-10240

EP8#

 1
87107-10250

EP8#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87114 - COVER, HEATER
87114-10060

EP8#,NP80

 1
87114-10070

EP8#,NP80

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-10230

EP8#,NP80..CAN,GI,S,SI,SOL,SOLL,X

 1
87150 - RADIATOR ASSY, HEATER
87150-10320

EP8#..CAN,GI,S,SI,SOL,SOLL,X

 1
87150-10330

EP8#..CAN,GI,S,SI,SOL,SOLL,X

ｶﾝﾚｲﾁ ｼﾖｳ

 1
Common parts
90179-06054
Linked diagrams
8715
