EP82-AGHDU (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 4EF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8912-9405)

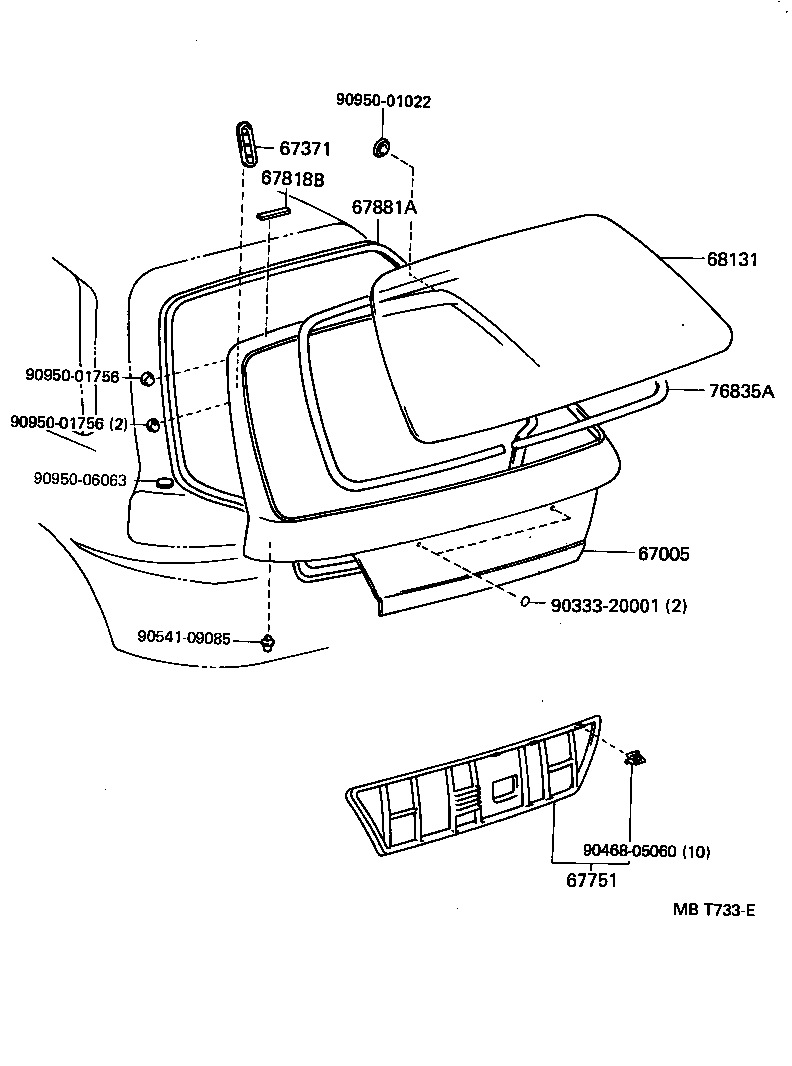

Click highlighted areas on diagram

diagram 67005 67371 67751 67818B 67881A 68131 76835A 9033320001 9046805060 9054109085 9095001022 9095001756 9095001756 9095006063
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-10830

EP82..GI,S,SI

 1
67005-1C100

EP82,NP80..CANSI,GI,S,SI,X

 1
67005-1C090

EP82..S,SI

ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ)

 1
67005-10890

EP82,NP80..SOL,SOLL

ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ)

 1
67005-1C080

EP82..SOL..EFI;EP82,NP80..(SOL,SOLL)..(CBR,DSL)

ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ)

 1
67005-1C020

EP82,NP80..SOL,SOLL

ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ & ﾘﾔ ｳｲﾝﾄﾞｳ ﾜｲﾊﾟ)

 1
67005-1C070

EP82..SOL..EFI;EP82,NP80..(SOL,SOLL)..(CBR,DSL)

 1
67371 - DUCT, BACK DOOR VENTILATOR
67371-10010

EP8#,NP80

 4
67371-10020

EP8#,NP80

ﾎﾞｳｼﾞﾝ ﾀｲｻｸ ﾖｳ

 4
67751 - BOARD, BACK DOOR TRIM
67751-1006003

EP8#,NP80..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD

ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),GRAY,TRIM1#

 1
67751-1003004

EP82..GI,GT,S,SI

BLUE,TRIM8#

 1
67751-1006004

EP82..S,SI

ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),BLUE,TRIM8#

 1
67751-1006004

EP82..S,SI

ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),BLUE,TRIM8#

 1
67751-1003004

EP82..GI,GT,S,SI,SOLL

BLUE,TRIM8#

 1
67751-1006004

EP82..S,SI,SOLL

ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),BLUE,TRIM8#

 1
67751-1003003

EP8#,NP80

GRAY,TRIM1#

 1
67751-1003004

EP82..GI,GT,S,SI

BLUE,TRIM8#

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-10070

EP8#,NP80

 1
68131 - GLASS, BACK DOOR
68131-10370

EP82,NP80..SOL

*EHT,厚さ=3.1,ｸﾘｱ,ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ ﾃﾞﾌｵﾂｶﾞ)

 1
68131-10390

EP82..3D..SI;EP8#,NP80..CAN,GI,GT,S,SOLL,X

*EHTT,厚さ=3.1,ﾌﾞﾛﾝｽﾞ

 1
68131-10370

EP82..3D..SI;EP8#,NP80..CAN,GI,GT,S,SOLL,X

*EHT,厚さ=3.1,ｸﾘｱ

 1
68131-10350

EP82,NP80..SOL

*TEM,厚さ=3.1,ｸﾘｱ

 1
76835A - PROTECTOR, BACK DOOR FINISH PANEL, NO.1
76835-10010

EP8#,NP80

 1
Common parts
90333-20001
90468-05060
90541-09085
90950-01022
90950-01756
90950-06063
