EP76V-PYKRS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

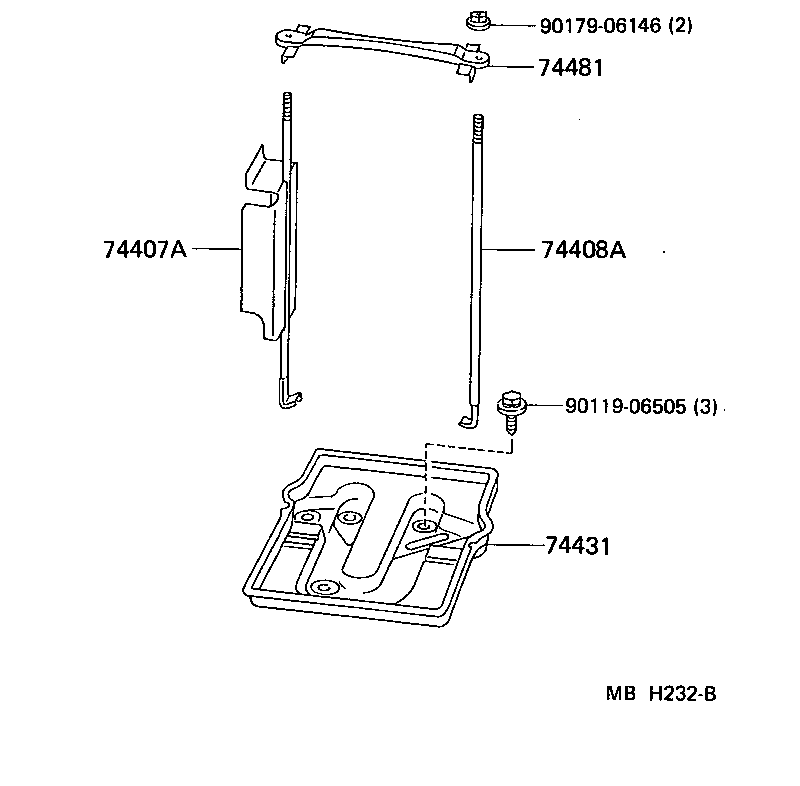

Click highlighted areas on diagram

diagram 74407A 74408A 74431 74481 9011906505 9017906146
Part # Description Qty Price
74407A - BOLT SUB-ASSY, BATTERY CLAMP
74407-10040

EP7#

 1
74408A - BOLT SUB-ASSY, BATTERY CLAMP, NO.2
74408-10010

EP7#

 1
74431 - TRAY, BATTERY
74431-10010

EP7#

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-10110

EP7#

 1
74481-10110

EP7#

 1
Common parts
90119-06505
90179-06146
