EP76V-PYKRS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

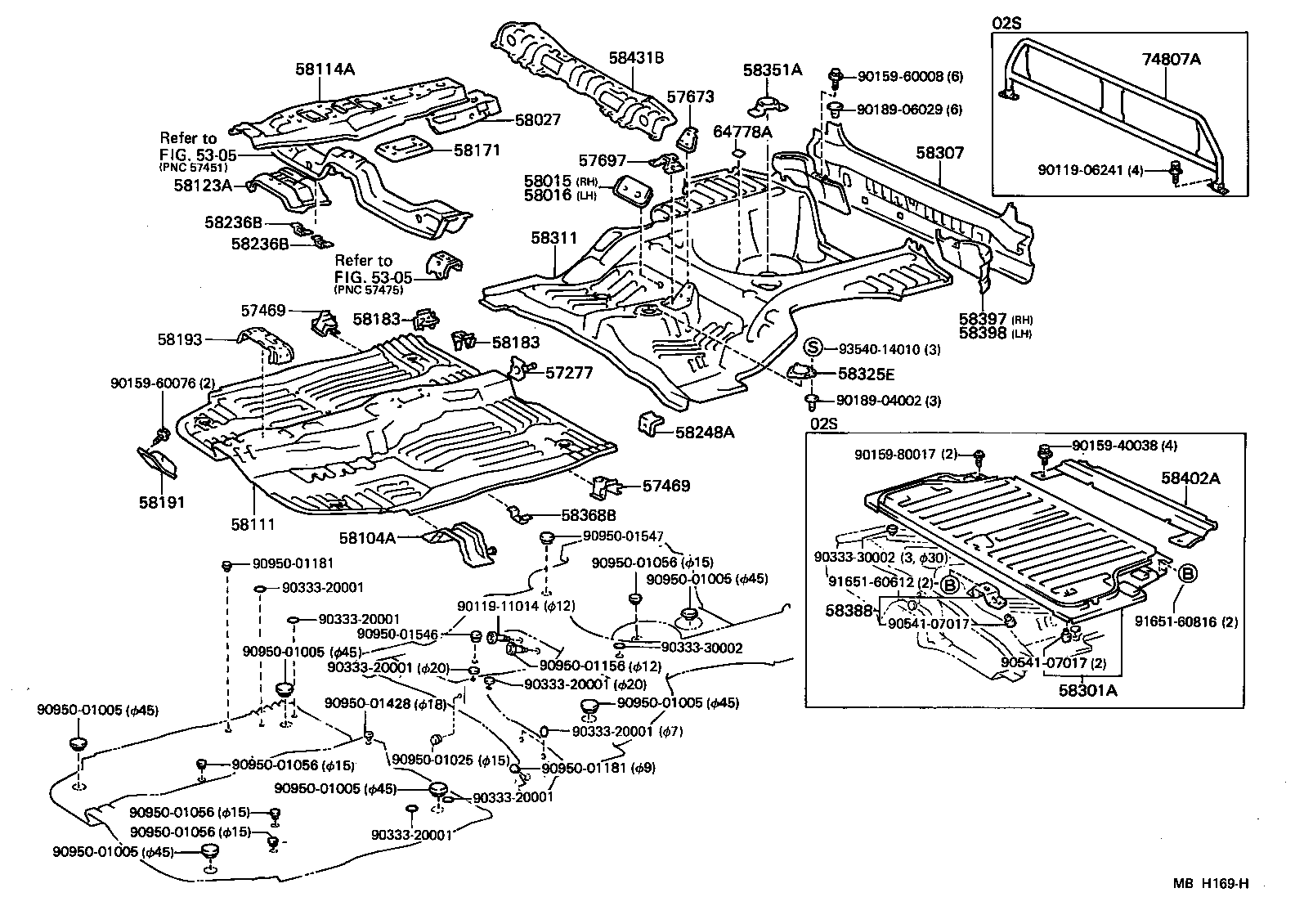

Click highlighted areas on diagram

diagram 5305 5305 57277 57469 57469 57673 57697 58015 58016 58027 58104A 58111 58114A 58123A 58171 58183 58183 58191 58193 58236B 58236B 58248A 58301A 58307 58311 58325E 58351A 58368B 58388 58397 58398 58402A 58431B 64778A 74807A 9011906241 9011911014 9015940038 9015960008 9015960076 9015980017 9018904002 9018906029 9033320001 9033320001 9033320001 9033320001 9033320001 9033320001 9033320001 9033330002 9033330002 9054107017 9054107017 9095001005 9095001005 9095001005 9095001005 9095001005 9095001005 9095001025 9095001056 9095001056 9095001056 9095001056 9095001156 9095001181 9095001181 9095001428 9095001546 9095001547 9165160612 9165160816 9354014010
Part # Description Qty Price
57277 - BRACKET, CATALYTIC CONVERTER SUPPORT, RH
57027-10010

EP7#,NP7#

 1
57469 - BRACKET, FRONT SEAT, OUTSIDE
57468-10020

EP7#,NP7#

RH

 1
57469-10020

EP7#,NP7#

LH

 1
57469 - BRACKET, FRONT SEAT, OUTSIDE
57468-10020

EP7#,NP7#

RH

 1
57469-10020

EP7#,NP7#

LH

 1
57673 - BRACKET, REAR SEAT BACK HINGE MOUNTING
57607-10020

EP76,NP76..02S;EP71,NP70..SE,SI,XL

 1
57673-10010

EP76,NP76..02S;EP71,NP70..SE,SI,XL

 1
57697 - RETAINER, REAR SEAT CUSHION
57697-16010

EP7#,NP7#

 1
58015 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH
58015-10010

EP7#,NP7#

 1
58016 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH
58015-10010

EP7#,NP7#

 1
58027 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.1
58027-10010

EP7#

 1
58027-10011

EP7#,NP7#

 1
58111 - PAN, FRONT FLOOR
58111-10100

EP7#,NP7#

 1
58114A - REINFORCEMENT, FRONT FLOOR PANEL
58114-10030

EP7#,NP7#

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58123-10030

EP7#,NP7#

 1
58171 - REINFORCEMENT, PARKING BRAKE BASE
58171-10030

EP7#,NP7#

 1
58183 - BRACKET, FRONT SEAT MOUNTING, INNER
58183-10040

EP7#,NP7#

 2
58183 - BRACKET, FRONT SEAT MOUNTING, INNER
58183-10040

EP7#,NP7#

 2
58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58247-10010

EP7#,NP7#

 1
58301A - PANEL SUB-ASSY, REAR FLOOR
58300-11010

EP76,NP76..02S

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-10260

EP7#,NP7#..CBR,DSL,EFI

 1
58307-10220

EP7#..CBR,EFI

 1
58311 - PAN, REAR FLOOR
58311-11100

EP76..02S

 1
58311-10130

EP76,NP76..02S

 1
58311-10131

EP76,NP76..02S

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-16020

EP7#,NP7#

 1
58351A - BRACKET, SPARE WHEEL CARRIER
58351-10020

EP7#,NP7#

 1
58368B - BRACKET, FUEL TUBE, NO.2
58368-10010

EP7#,NP7#

 2
58388 - RETAINER, REAR BUMPER MUDGUARD
58388-11030

EP76,NP76..02S

 1
58397 - COVER, LOWER BACK, OUTER RH
58397-10010

EP7#..CBR,EFI

 1
58398 - COVER, LOWER BACK, OUTER LH
58398-10010

EP7#,NP7#..CBR,DSL,EFI

 1
58402A - BOARD SUB-ASSY, REAR FLOOR, NO.2
58402-11010

EP76,NP76..02S

 1
64778A - PROTECTOR, SPARE WHEEL
64778-10020

EP76,NP76

 2
74807A - BAR SUB-ASSY, REAR SEPARATOR
74807-11010

EP76,NP76..02S

 1
Common parts
90119-06241
90119-11014
90159-40038
90159-60008
90159-60076
90159-80017
90189-04002
90189-06029
90333-20001
90333-30002
90541-07017
90950-01005
90950-01025
90950-01056
90950-01156
90950-01181
90950-01428
90950-01546
90950-01547
91651-60612
91651-60816
93540-14010
Linked diagrams
5305
