EP76V-PYKRS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

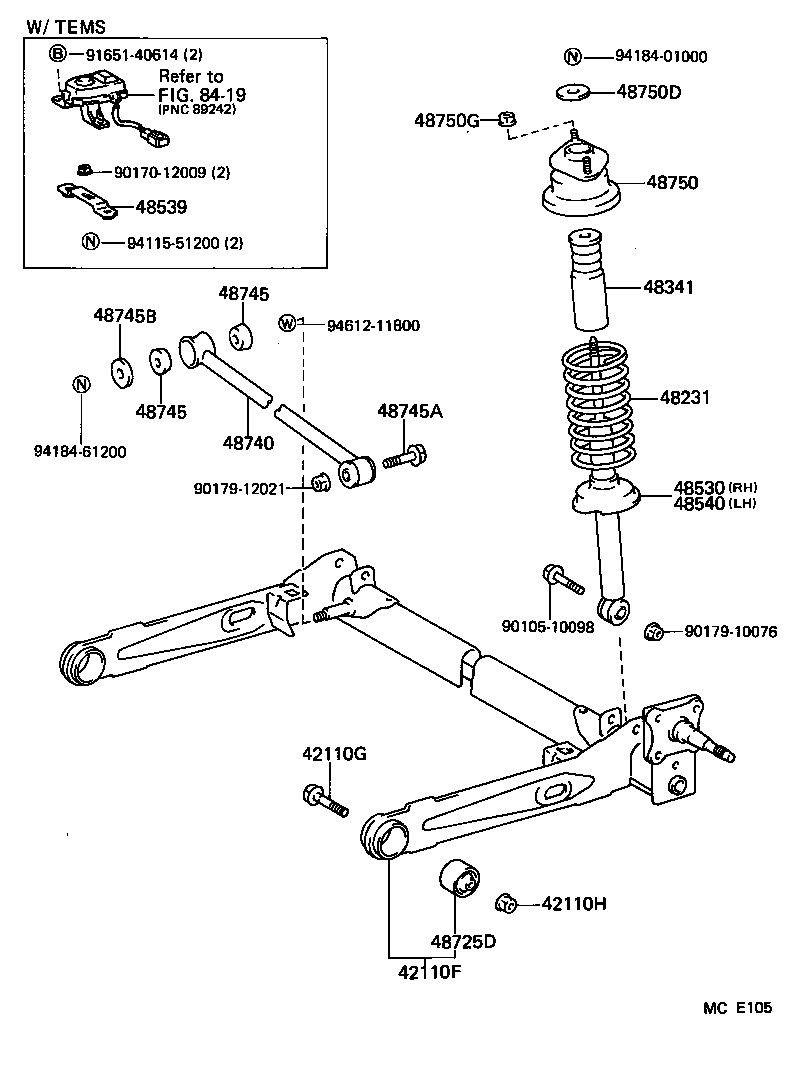

Click highlighted areas on diagram

diagram 42110F 42110G 42110H 48231 48341 48530 48539 48540 48725D 48740 48745 48745 48745A 48745B 48750 48750D 48750G 8419 9010510098 9017012009 9017910076 9017912021 9165140614 9411551200 9418401000 9418461200 9461211800
Part # Description Qty Price
42110F - BEAM ASSY, REAR AXLE
42110-10030

EP7#

 1
42110-10050

EP7#,NP7#

 1
42110G - BOLT (FOR REAR AXLE BEAM)
90105-12088

EP7#,NP7#

 2
42110H - NUT (FOR REAR AXLE BEAM)
90179-12041

EP7#,NP7#

 2
48231 - SPRING, COIL, REAR
48231-10140

EP7#,NP7#..CBR,DSL

 2
48341 - BUMPER, REAR SPRING
48341-10080

EP76,NP76

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-10010

EP7#,NP7#..CBR,DSL

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-10010

EP7#,NP7#..CBR,DSL

 1
48725D - BUSH, REAR SUSPENSION ARM, NO.3
48725-10010

EP7#

 2
48725-16110

EP7#,NP7#

 2
48740 - ROD ASSY, REAR LATERAL CONTROL
48740-10010

EP7#,NP7#

 1
48745 - BUSH, LATERAL CONTROL ROD
90385-18010

EP7#,NP7#

 2
48745 - BUSH, LATERAL CONTROL ROD
90385-18010

EP7#,NP7#

 2
48745A - BOLT, HEXAGON(FOR LATERAL CONTROL ROD)
90105-12037

EP7#,NP7#

 1
48745B - WASHER, LATERAL CONTROL ROD CUSHION
90201-12037

EP7#,NP7#

 1
48750 - SUPPORT ASSY, REAR SUSPENSION
48750-10010

EP7#,NP7#

 2
48750D - RETAINER(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
90948-02082

EP7#,NP7#

 2
48750G - NUT(FOR REAR SUSPENSION SUPPORT)
90179-08087

EP7#,NP7#

 4
Common parts
90105-10098
90170-12009
90179-10076
90179-12021
91651-40614
94115-51200
94184-01000
94184-61200
94612-11800
Linked diagrams
8419
