EP76V-PYKDS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )EP7#

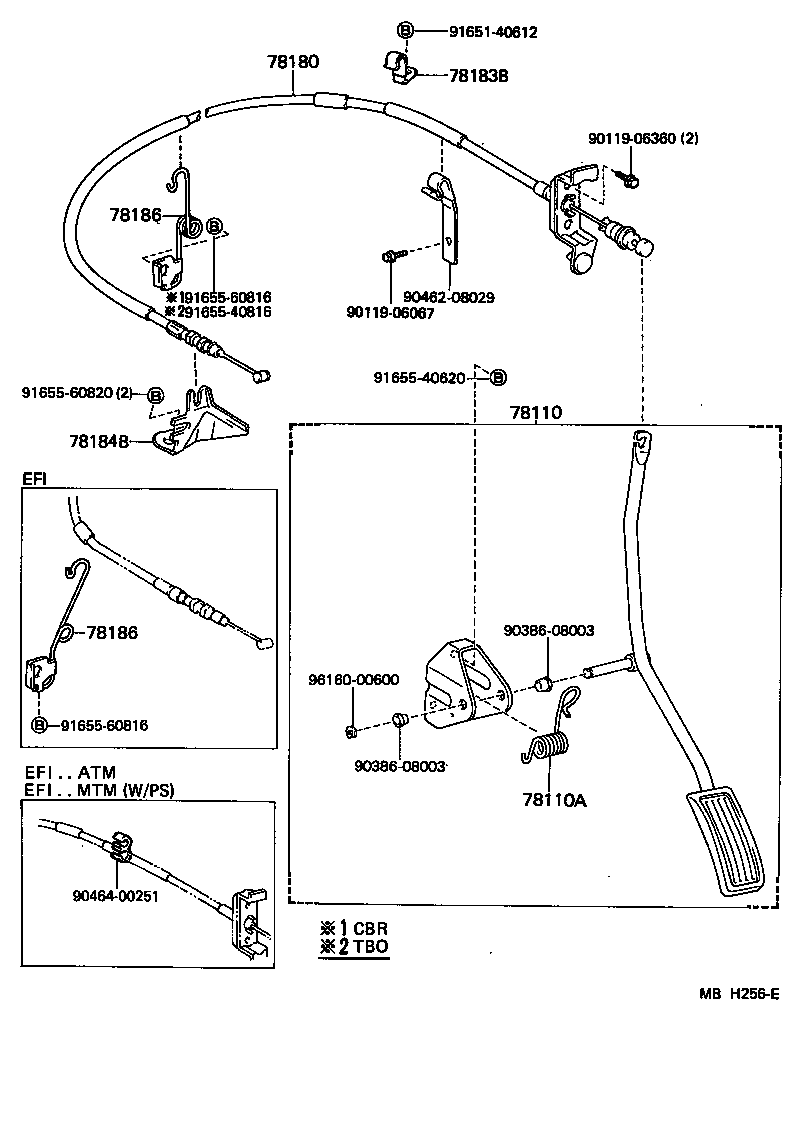

Click highlighted areas on diagram

diagram 78110 78110A 78180 78183B 78184B 78186 78186 9011906067 9011906360 9038608003 9038608003 9046208029 9046400251 9165140612 9165540620 9165540816 9165560816 9165560816 9165560820 9616000600
Part # Description Qty Price
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-10030

EP7#,NP7#..MTM

 1
78120-10010

EP7#

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18057

EP7#

 1
90508-21004

EP7#,NP7#

 1
78180 - WIRE ASSY, ACCELERATOR
78180-10230

EP7#..CBR

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-10070

EP7#..CBR

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-10040

EP7#..CBR

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-10040

EP7#..CBR

 1
Common parts
90119-06067
90119-06360
90386-08003
90462-08029
90464-00251
91651-40612
91655-40620
91655-40816
91655-60816
91655-60820
96160-00600
