EP76V-PYKDS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

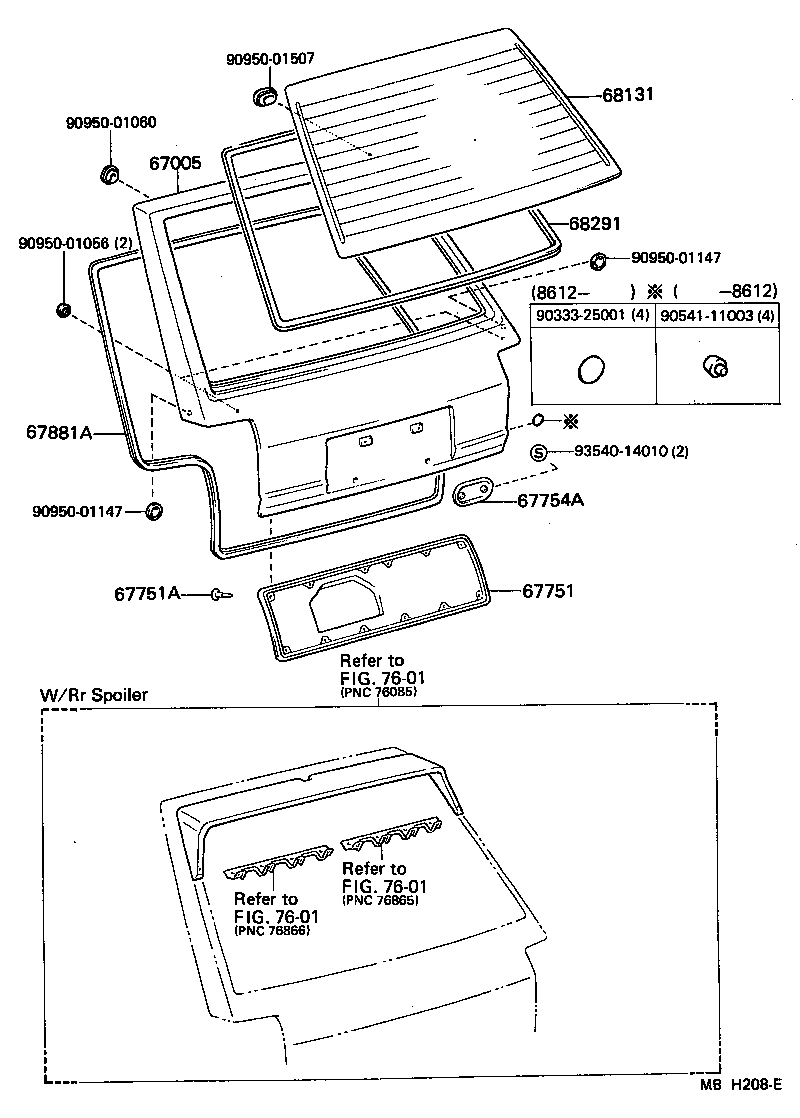

Click highlighted areas on diagram

diagram 67005 67751 67751A 67754A 67881A 68131 68291 7601 7601 7601 9033325001 9054111003 9095001056 9095001060 9095001147 9095001147 9095001507 9354014010
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-10430

EP7#..CD,CS,DX,RI,STD

W/O RR *DEF

 1
67005-10450

EP7#..CD,CS,DX,RI,STD,XL

W/RR *DEF,W/O *RW,RR SPOILER

 1
67005-10420

EP7#..CD,DX,RI,SE,SI,XL

W/RR *DEF,*RW,W/O RR SPOILER

 1
67005-10421

EP7#..CD,DX,RI,SE,SI,XL

W/RR *DEF,*RW,W/O RR SPOILER

 1
67005-10422

EP7#,NP7#..CD,DX,SE,SI,XL

W/RR *DEF,*RW,W/O RR SPOILER

 1
67005-10451

EP7#..CD,CS,DX,RI,STD,XL

W/RR *DEF,W/O *RW,RR SPOILER

 1
67005-10432

EP7#,NP7#..CD,CS,DX,RI,STD

W/O RR *DEF

 1
67005-10452

EP7#,NP7#..CD,CS,DX,RI,STD,XL

W/RR *DEF,W/O *RW,RR SPOILER

 1
67751 - BOARD, BACK DOOR TRIM
67751-1002003

EP7#,NP7#

GRAY,GRAY,TRIM1#

 1
67751-1002004

EP7#..CD,DX,SE,XL

BLUE,BLUE,TRIM8#

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-0704114

EP7#..CD,DX,SE,XL

BLUE,BLUE,TRIM8#

 12
90467-0704103

EP7#,NP7#

GRAY,GRAY,TRIM1#

 12
67754A - COVER, BACK DOOR HOLE
67754-10040

EP7#,NP7#

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-10060

EP7#,NP7#

 1
67881-10050

EP7#

 1
68131 - GLASS, BACK DOOR
68105-10150

EP7#..CD,CS,DX,RI,STD,XL

*EHT,厚さ=3.5,*EHT,T=3.5

 1
68131-10220

EP7#,NP7#..CD,CS,DX,RI,STD,TOR

*TEM,厚さ=3.5,*TEM,T=3.5

 1
68105-10150

EP7#,NP7#

*EHT,厚さ=3.5,*EHT,T=3.5

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-10030

EP7#

 1
68291-10050

EP7#,NP7#

 1
Common parts
90333-25001
90541-11003
90950-01056
90950-01060
90950-01147
90950-01507
93540-14010
Linked diagrams
7601
