EP76V-PYKDS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

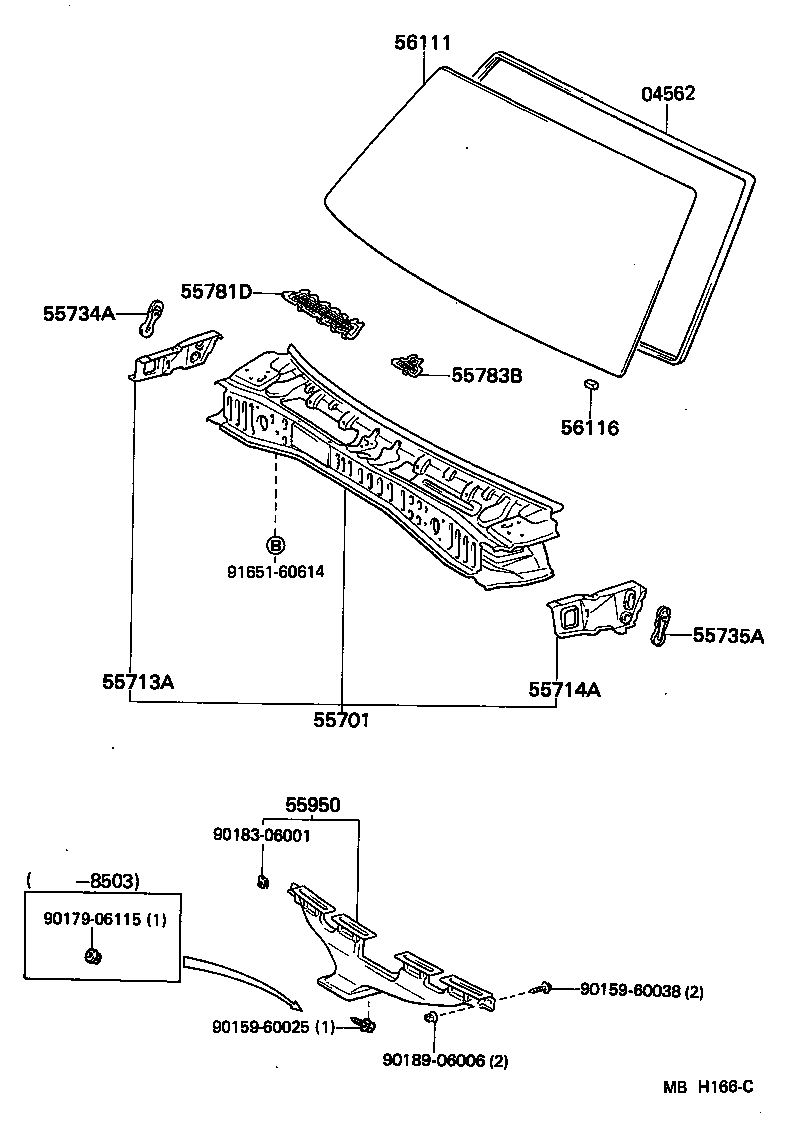

Click highlighted areas on diagram

diagram 04562 55701 55713A 55714A 55734A 55735A 55781D 55783B 55950 56111 56116 9015960025 9015960038 9017906115 9018306001 9018906006 9165160614
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-30040

EP7#,NP7#

 1
55701 - PANEL SUB-ASSY, COWL
55700-10140

EP7#,NP7#..CBR,DSL

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-10040

EP7#,NP7#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-10030

EP7#,NP7#

 1
55734A - PLATE, WATER GUARD, RH
55734-10040

EP7#,NP7#

 1
55735A - PLATE, WATER GUARD, LH
55734-10040

EP7#,NP7#

 1
55781D - LOUVER, COWL TOP VENTILATOR, RH
55781-10020

EP7#,NP7#

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55783-10020

EP7#,NP7#

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-10030

EP7#,NP7#

 1
56111 - GLASS, WINDSHIELD
56111-10240

EP7#

*LAM,T=5.3,*LAM,T=5.3

 1
56111-10200

EP7#..CD,CS,DX,RI,STD,XL

*ZT,T=5.0,*TEM,T=5.0

 1
56111-10240

EP7#..CD,CS,DX,RI,STD,XL

*LAM,T=5.3,*LAM,T=5.3

 1
56111-10240

EP7#,NP7#

*LAM,T=5.3,*LAM,T=5.3

 1
56116 - SPACER, WINDSHIELD GLASS
56116-24010

EP7#,NP7#

 2
Common parts
90159-60025
90159-60038
90179-06115
90183-06001
90189-06006
91651-60614
