EP76V-PYKDS (1984)
Toyota Starlet
Production
Oct 1984
-
Dec 1989
Engine
2ELJ
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8410- )

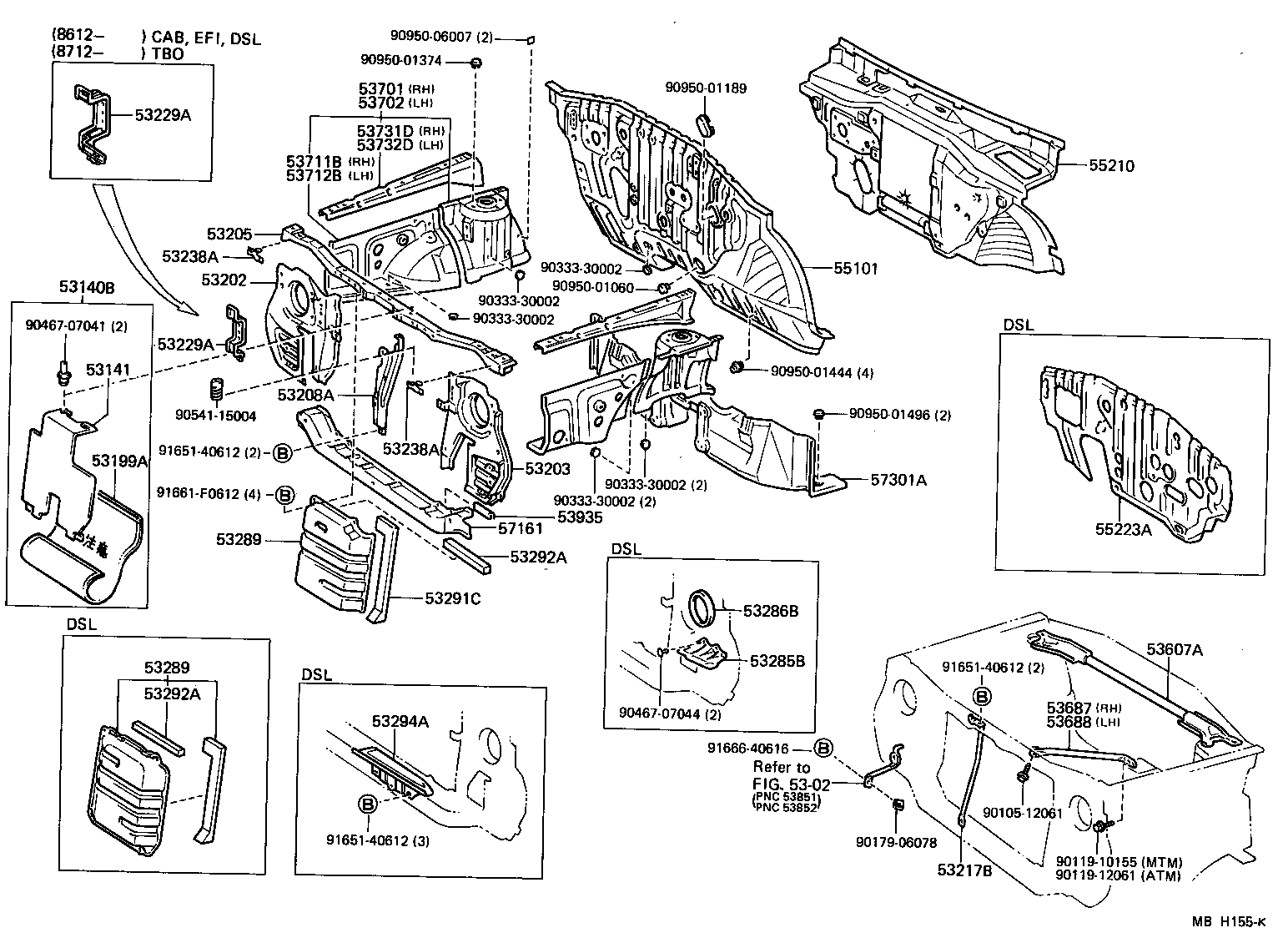

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-10090 |
EP7#..CBR,EFI |
1 | ||
| 53202-10110 |
EP7#..CBR,EFI |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-10130 |
EP7# |
1 | ||
| 53203-10150 |
EP7#..CBR,EFI |
1 | ||
| 53203-10131 |
EP7#..CBR,EFI |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53216-10903 |
EP7#,NP7# |
1 | ||
| 53216-10900 |
EP7# |
1 | ||
| 53216-10902 |
EP7#..CBR,EFI |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-10050 |
EP7#,NP7#..CBR,DSL,EFI |
1 | ||
| 53208-10040 |
EP7# |
1 | ||
| 53208-10030 |
EP7# |
1 | ||
| 53229A - BRACKET, RADIATOR GRILLE MOUNTING | ||||
| 53223-10050 |
EP7# RH |
1 | ||
| 53224-10020 |
EP7# LH |
1 | ||
| 53106-10010 |
EP7#,NP7#..CBR,DSL,EFI LH |
1 | ||
| 53105-10010 |
EP7#,NP7#..CBR,DSL,EFI RH |
1 | ||
| 53229A - BRACKET, RADIATOR GRILLE MOUNTING | ||||
| 53223-10050 |
EP7# RH |
1 | ||
| 53224-10020 |
EP7# LH |
1 | ||
| 53106-10010 |
EP7#,NP7#..CBR,DSL,EFI LH |
1 | ||
| 53105-10010 |
EP7#,NP7#..CBR,DSL,EFI RH |
1 | ||
| 53238A - BRACKET, HOOD BUMPER MOUNTING | ||||
| 53238-10030 |
EP7#,NP7#..CBR,DSL,EFI RH |
1 | ||
| 53239-10020 |
EP7#,NP7#..CBR,DSL,EFI LH |
1 | ||
| 53238A - BRACKET, HOOD BUMPER MOUNTING | ||||
| 53238-10030 |
EP7#,NP7#..CBR,DSL,EFI RH |
1 | ||
| 53239-10020 |
EP7#,NP7#..CBR,DSL,EFI LH |
1 | ||
| 53289 - COVER, RADIATOR SIDE BAFFLE | ||||
| 53289-10030 |
EP7#..CBR,EFI |
1 | ||
| 53289 - COVER, RADIATOR SIDE BAFFLE | ||||
| 53289-10030 |
EP7#..CBR,EFI |
1 | ||
| 53291C - SEAL, RADIATOR SUPPORT TO FRAME | ||||
| 53291-10040 |
EP7#..CBR,EFI |
1 | ||
| 53292A - SEAL, RADIATOR SUPPORT, UPPER | ||||
| 53292-10020 |
EP7#,NP7# |
1 | ||
| 53292A - SEAL, RADIATOR SUPPORT, UPPER | ||||
| 53292-10020 |
EP7#,NP7# |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-10290 |
EP7# |
1 | ||
| 53701-10310 |
EP7# |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-10330 |
EP7# |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-10120 |
EP7#,NP7# |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-10190 |
EP7#,NP7# |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-10040 |
EP7#,NP7# |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-10040 |
EP7#,NP7# |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-10929 |
EP76 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-10110 |
EP7#..MTM |
1 | ||
| 57161 - CROSSMEMBER, FRONT | ||||
| 57161-10901 |
EP7#..CBR,EFI |
1 | ||
| 57161-10900 |
EP7# |
1 | ||
| 57301A - MEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT | ||||
| 57301-10032 |
EP7#,NP7#..CBR,DSL,EFI |
1 | ||
| 57301-10031 |
EP7# |
1 | ||
| 57301-10030 |
EP7# |
1 | ||
| Common parts | ||||
| 90105-12061 | ||||
| 90119-10155 | ||||
| 90119-12061 | ||||
| 90179-06078 | ||||
| 90333-30002 | ||||
| 90467-07041 | ||||
| 90467-07044 | ||||
| 90541-15004 | ||||
| 90950-01060 | ||||
| 90950-01189 | ||||
| 90950-01374 | ||||
| 90950-01444 | ||||
| 90950-01496 | ||||
| 90950-06007 | ||||
| 91651-40612 | ||||
| 91661-F0612 | ||||
| 91666-40616 | ||||
| Linked diagrams | ||||
| 5302 | ||||
