EP76V-PYKDS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )MTM

Click highlighted areas on diagram

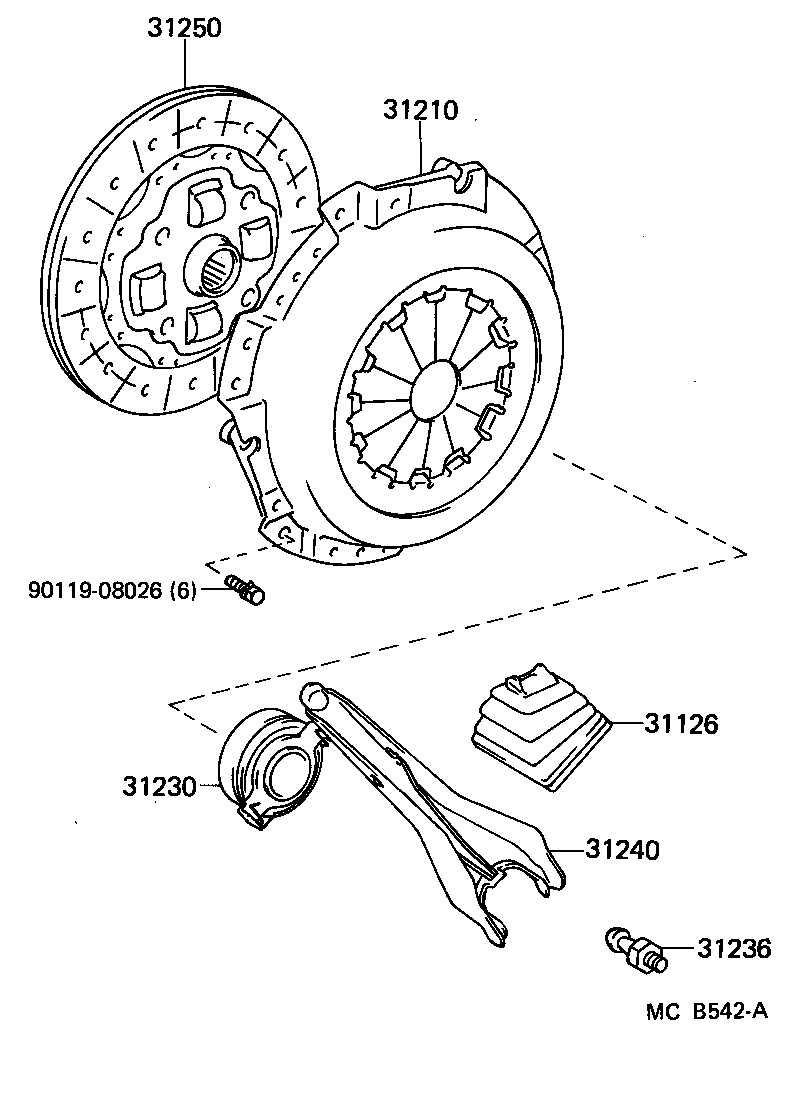

diagram 31126 31210 31230 31236 31240 31250 9011908026
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-12050

EP7#,NP7#..MTM

 1
31126-12051

EP7#,NP7#..MTM

 1
31210 - COVER ASSY, CLUTCH
31210-10060

EP7#..MTM..(CBR,EFI)

*AXC=-672,-552,-542,-522

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-12140

EP7#..MTM

 1
31230-12140

EP7#..MTM

 1
31230-12100

EP7#..MTM

 1
31236 - BALL, RELEASE FORK
31236-12011

EP7#,NP7#..MTM

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-12050

EP7#,NP7#..MTM

 1
31250 - DISC ASSY, CLUTCH
31250-10060

EP7#..MTM..(CBR,EFI)

*AXC=-672,-552,-542,-522

 1
31250-10062

EP7#..MTM..(CBR,EFI)

*AXC=-672,-552,-542,-522

 1
31250-10061

EP7#..MTM..(CBR,EFI)

*AXC=-672,-552,-542,-522

 1
Common parts
90119-08026
