EP76V-PYKDS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )2E#

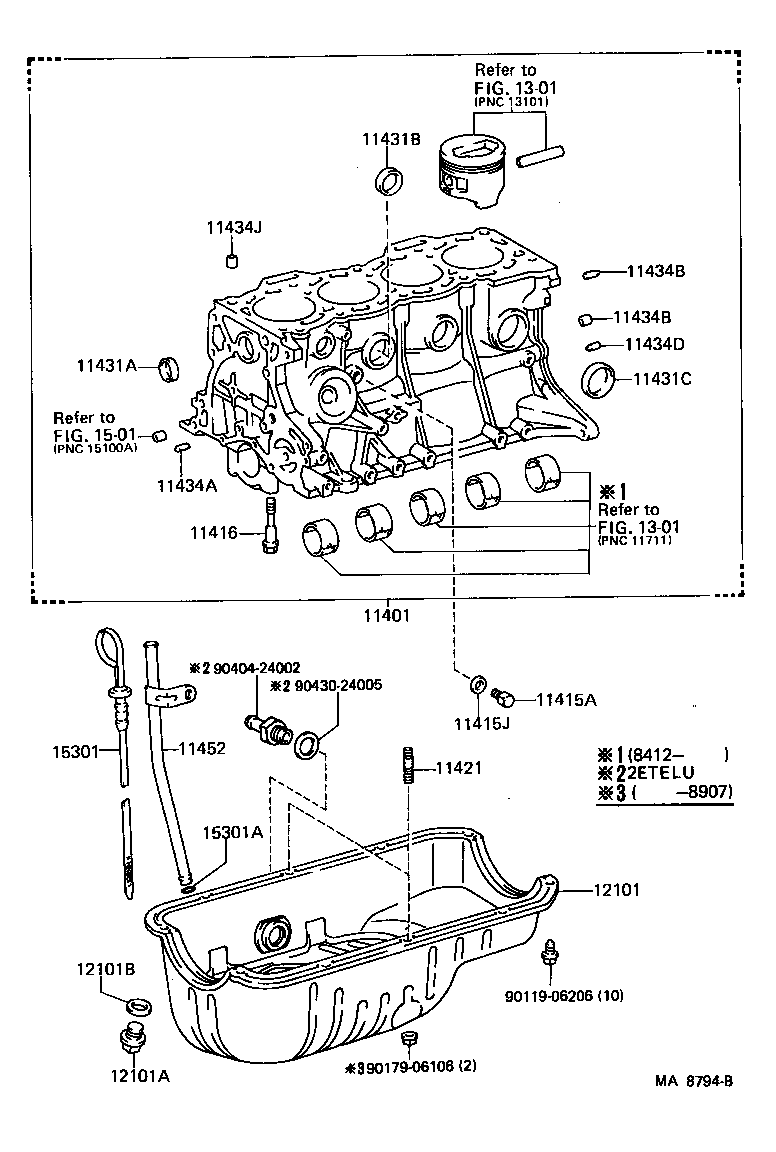

Click highlighted areas on diagram

diagram 11401 11415A 11415J 11416 11421 11431A 11431B 11431C 11434A 11434B 11434B 11434D 11434J 11452 12101 12101A 12101B 1301 1301 1501 15301 15301A 9011906206 9017906106 9040424002 9043024005
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-19296

2EELU,2EL#..EP7#

 1
11401-19297

2EELU,2EL#..EP7#

 1
11401-19295

2EELU,2EL#..EP7#

 1
11401-19298

2EELU,2EL#..EP7#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90341-12012

2E#..EP7#

 2
11415J - GASKET(FOR DRAIN COCK)
90430-13002

2E#..EP7#

 2
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02019

2E#..EP7#

 10
11421 - BOLT, STUD(FOR OIL PAN)
90116-06014

2E#..EP7#

 2
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-42500

2E#..EP7#

OD=25

 2
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43000

2E#..EP7#

OD=30

 6
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-43500

2E#..EP7#

OD=35

 5
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-06068

2E#..EP7#

長さ=11,外径=6

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10052

2E#..EP7#

長さ=20,外径=10,L=20,OD=10

 1
90253-15001

2E#..EP7#

長さ=14,外径=15,L=14,OD=15

 1
90250-10017

2E#..EP7#

長さ=20,外径=10

 1
90253-15003

2E#..EP7#

長さ=17,外径=15,L=14,OD=15

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10052

2E#..EP7#

長さ=20,外径=10,L=20,OD=10

 1
90253-15001

2E#..EP7#

長さ=14,外径=15,L=14,OD=15

 1
90250-10017

2E#..EP7#

長さ=20,外径=10

 1
90253-15003

2E#..EP7#

長さ=17,外径=15,L=14,OD=15

 1
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06068

2E#..EP7#

長さ=11,外径=6

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-12001

2E#..EP7#

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-10010

2E#..EP7#

 1
12101 - PAN SUB-ASSY, OIL
12101-10010

2EELU,2EL#..EP7#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

2E#..EP7#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12011

2E#..EP7#

 1
90430-12019

2E#..EP7#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-10021

2E#..EP7#

 1
15301-10022

2E#..EP7#

 1
15301-10020

2E#..EP7#

 1
15301A - RING, O(FOR OIL LEVEL GAGE)
96711-19010

2E#..EP7#

 1
Common parts
90119-06206
90179-06106
90404-24002
90430-24005
Linked diagrams
1301
1501
