EP76V-PVKRS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )EP76,NP76

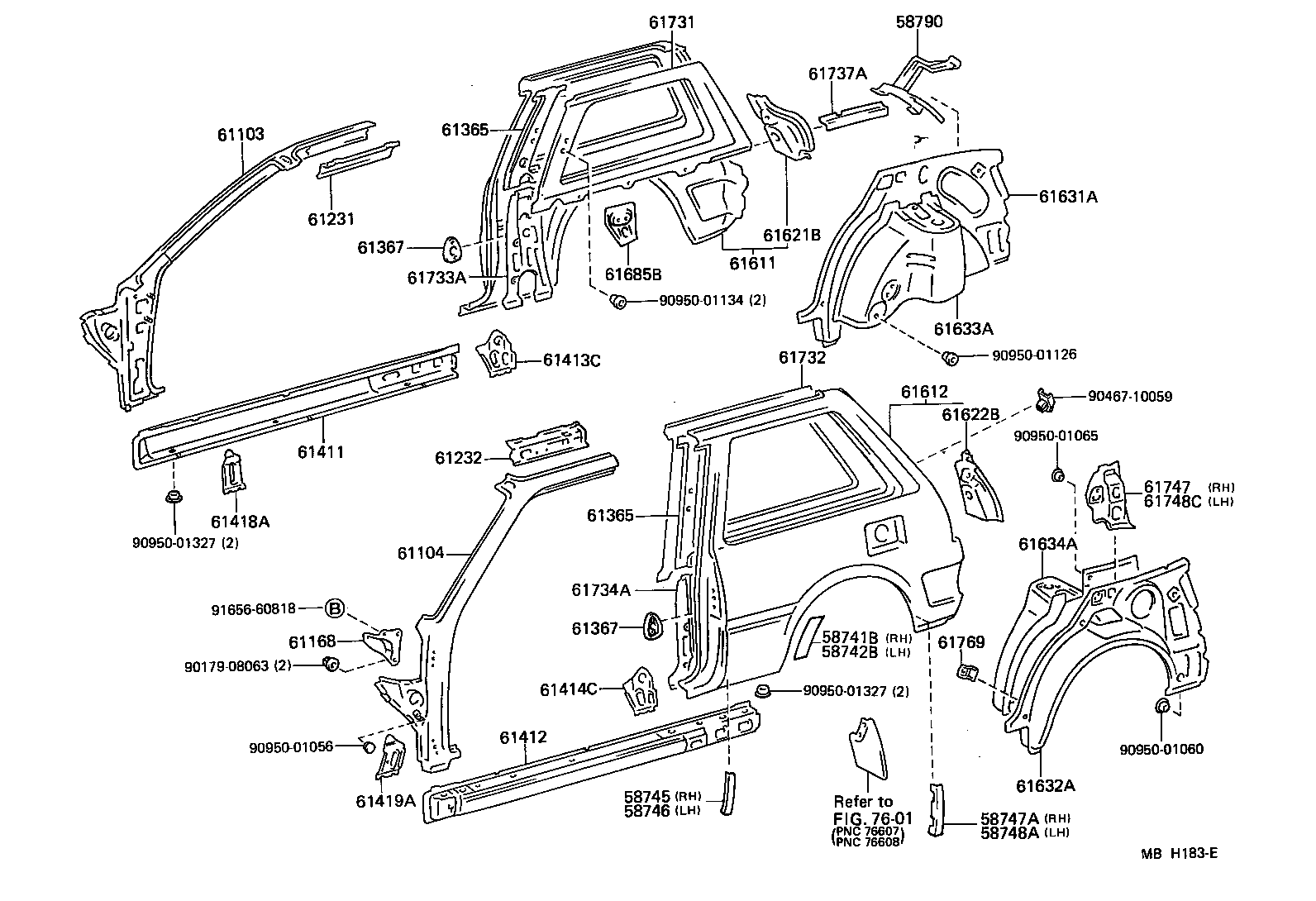

Click highlighted areas on diagram

diagram 58741B 58742B 58745 58746 58747A 58748A 58790 61103 61104 61168 61231 61232 61365 61365 61367 61367 61411 61412 61413C 61414C 61418A 61419A 61611 61612 61621B 61622B 61631A 61632A 61633A 61634A 61685B 61731 61732 61733A 61734A 61737A 61747 61748C 61769 7601 9017908063 9046710059 9095001056 9095001060 9095001065 9095001126 9095001134 9095001327 9095001327 9165660818
Part # Description Qty Price
58741B - PROTECTOR, QUARTER PANEL, RH
58741-10020

EP7#,NP7#..2D,3D

 1
58741-12060

EP7#,NP7#..2D,3D

 1
58742B - PROTECTOR, QUARTER PANEL, LH
58741-12060

EP7#,NP7#..2D,3D

 1
58742-10020

EP7#,NP7#..2D,3D

 1
58745 - PROTECTOR, QUARTER PANEL, FRONT RH
58745-10010

EP7#,NP7#..2D,3D

 1
58746 - PROTECTOR, QUARTER PANEL, FRONT LH
58746-10010

EP7#,NP7#..2D,3D

 1
58747A - PROTECTOR, QUARTER PANEL, REAR RH
58747-10010

EP7#,NP7#

 1
58748A - PROTECTOR, QUARTER PANEL, REAR LH
58748-10010

EP7#,NP7#

 1
58790 - CARRIER ASSY, JACK
58790-10030

EP7#,NP7#

 1
58790-10020

EP7#

 1
61103 - PILLAR SUB-ASSY, FRONT BODY, RH
61021-10100

EP7#,NP7#..2D,3D

 1
61104 - PILLAR SUB-ASSY, FRONT BODY, LH
61022-10150

EP7#,NP7#..(2D,3D)..(CD,CS,DX,RI,STD,TOR,XL)

 1
61022-10160

EP7#,NP7#..(2D,3D)..(CD,CS,DX,RI,SI,TBS,TOR,XL)

W/FENDER MIRROR

 1
61168 - BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH
61166-10030

EP7#,NP7#

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-10090

EP7#,NP7#..2D,3D

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-10080

EP7#,NP7#..2D,3D

 1
61365 - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR
61347-10040

EP7#,NP76..CD,CS,RI,STD,TOR

RH

 1
61348-10040

EP7#,NP76..CD,CS,RI,STD,TOR

LH

 1
61365 - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR
61347-10040

EP7#,NP76..CD,CS,RI,STD,TOR

RH

 1
61348-10040

EP7#,NP76..CD,CS,RI,STD,TOR

LH

 1
61367 - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER
61367-14010

EP7#,NP7#..2D,3D

 2
61367 - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER
61367-14010

EP7#,NP7#..2D,3D

 2
61411 - PANEL, ROCKER, OUTER RH
61411-10120

EP7#,NP7#..(2D,3D)..(CD,CS,DX,RI,SI,STD,TOR,XL)

 1
61412 - PANEL, ROCKER, OUTER LH
61412-10120

EP7#,NP7#..(2D,3D)..(CD,CS,DX,RI,SI,STD,TOR,XL)

 1
61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH
61413-10010

EP7#,NP7#

 1
61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH
61414-10010

EP7#,NP7#

 1
61418A - REINFORCEMENT, ROCKER PANEL, RH
61418-10020

EP7#,NP7#

 1
61419A - REINFORCEMENT, ROCKER PANEL, LH
61419-10010

EP7#,NP7#

 1
61611 - PANEL, QUARTER, RH
61601-1C060

EP7#..2D,3D

 1
61601-1C150

EP7#..(2D,3D)..(CBR,EFI)

 1
61601-1C150

EP7#..2D,3D

 1
61601-1C220

EP7#,NP7#..(2D,3D)..(CBR,DSL,EFI)

 1
61612 - PANEL, QUARTER, LH
61602-1C030

EP7#..2D,3D

 1
61602-1C120

EP7#..(2D,3D)..(CD,CS,DX,RI,STD)

 1
61602-1C260

EP7#,NP7#..(2D,3D)..(CD,CS,DX,RI,STD)

 1
61621B - TROUGH, BACK DOOR OPENING, FRONT RH
61621-10020

EP7#,NP7#

 1
61622B - TROUGH, BACK DOOR OPENING, FRONT LH
61622-10020

EP7#,NP7#

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-10040

EP7#,NP7#

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-10040

EP7#,NP7#

 1
61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH
61607-10020

EP7#,NP7#

 1
61607-10021

EP7#,NP7#

 1
61607-10020

EP76,NP76

 1
61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH
61608-10020

EP7#,NP7#

 1
61685B - BRACKET, REAR SEAT BACK STOPPER
61685-10010

EP76,NP76..05S

RH

 1
61686-10010

EP76,NP76..05S

LH

 1
61731 - PANEL, ROOF SIDE, INNER UPPER RH
61731-10300

EP76,NP76

 1
61732 - PANEL, ROOF SIDE, INNER UPPER LH
61732-10300

EP76,NP76

 1
61733A - PANEL, ROOF SIDE, INNER FRONT RH
61733-10030

EP7#,NP7#..2D,3D

 1
61734A - PANEL, ROOF SIDE, INNER FRONT LH
61734-10030

EP7#,NP7#..2D,3D

 1
61737A - PLATE, ROOF SIDE INNER RAIN PROOF, RH
61737-10040

EP7#,NP7#..2D,3D

 1
61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
61747-10020

EP7#,NP7#..2D,3D

 1
61748C - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
61748-10020

EP7#,NP7#..2D,3D

 1
61769 - RETAINER, QUARTER TRIM, LOWER
61753-16010

EP7#,NP7#..2D,3D

 6
Common parts
90179-08063
90467-10059
90950-01056
90950-01060
90950-01065
90950-01126
90950-01134
90950-01327
91656-60818
Linked diagrams
7601
