EP76V-PVKRS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410-8612)

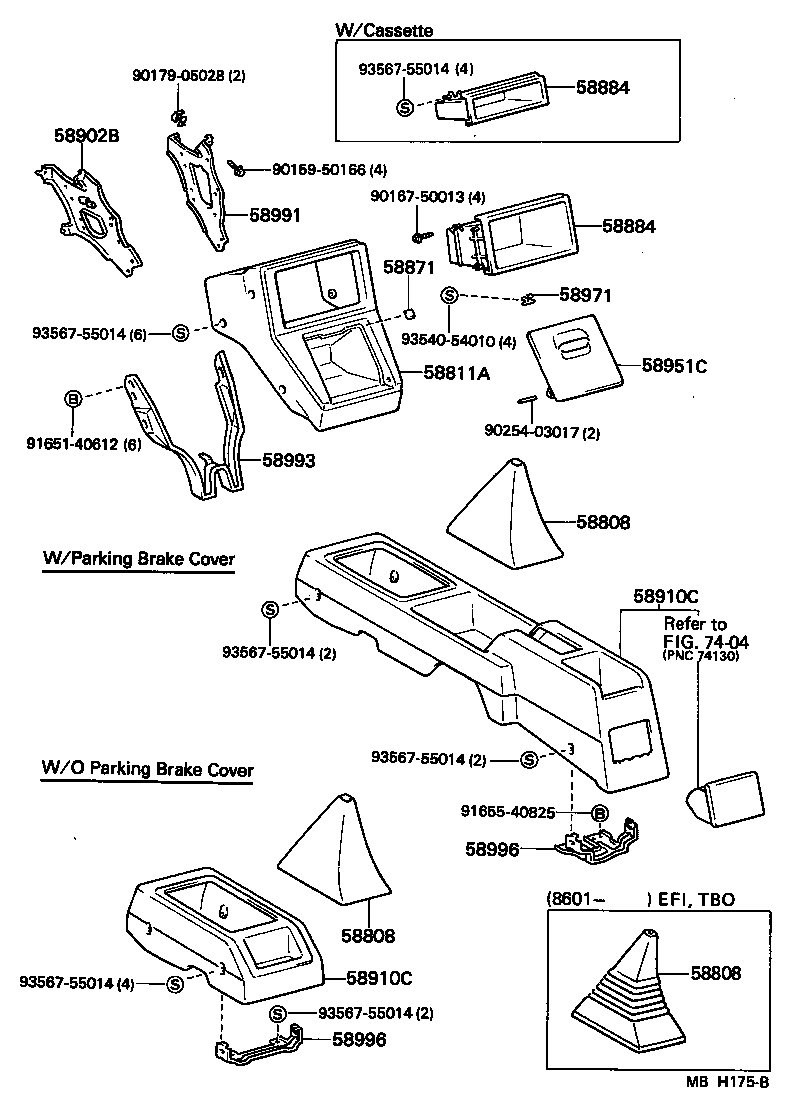

Click highlighted areas on diagram

diagram 58808 58808 58808 58811A 58871 58884 58884 58902B 58910C 58910C 58951C 58971 58991 58993 58996 58996 7404 9015950166 9016750013 9017905028 9025403017 9165140612 9165540825 9354054010 9356755014 9356755014 9356755014 9356755014 9356755014 9356755014
Part # Description Qty Price
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-1005001

EP7#..MTM

BLACK,BLACK,TRIM1#,8#

 1
58808-1007001

EP7#,NP7#..MTM..(CBR,DSL)

BLACK,BLACK,TRIM1#,8#

 1
58808-1005001

EP7#..MTM..CBR

BLACK,BLACK,TRIM1#,8#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-1005001

EP7#..MTM

BLACK,BLACK,TRIM1#,8#

 1
58808-1007001

EP7#,NP7#..MTM..(CBR,DSL)

BLACK,BLACK,TRIM1#,8#

 1
58808-1005001

EP7#..MTM..CBR

BLACK,BLACK,TRIM1#,8#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-1005001

EP7#..MTM

BLACK,BLACK,TRIM1#,8#

 1
58808-1007001

EP7#,NP7#..MTM..(CBR,DSL)

BLACK,BLACK,TRIM1#,8#

 1
58808-1005001

EP7#..MTM..CBR

BLACK,BLACK,TRIM1#,8#

 1
58884 - COVER, STEREO OPENING
55521-16010

EP7#..CD,CS,DX,SE,SI,TBS,TOR,XL

W/CASSETTE

 1
58884 - COVER, STEREO OPENING
55521-16010

EP7#..CD,CS,DX,SE,SI,TBS,TOR,XL

W/CASSETTE

 1
58910C - BOX ASSY, CONSOLE, REAR
58911-1003003

EP7#,NP7#..CD,CS,DX,RI,STD,TOR

W/O PARKING BRAKE COVER,GRAY,GRAY,TRIM1#

 1
58910C - BOX ASSY, CONSOLE, REAR
58911-1003003

EP7#,NP7#..CD,CS,DX,RI,STD,TOR

W/O PARKING BRAKE COVER,GRAY,GRAY,TRIM1#

 1
58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-10040

EP7#,NP7#..CD,CS,DX,RI,STD,TOR

W/O PARKING BRAKE COVER

 1
58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-10040

EP7#,NP7#..CD,CS,DX,RI,STD,TOR

W/O PARKING BRAKE COVER

 1
Common parts
90159-50166
90167-50013
90179-05028
90254-03017
91651-40612
91655-40825
93540-54010
93567-55014
Linked diagrams
7404

(8612- )

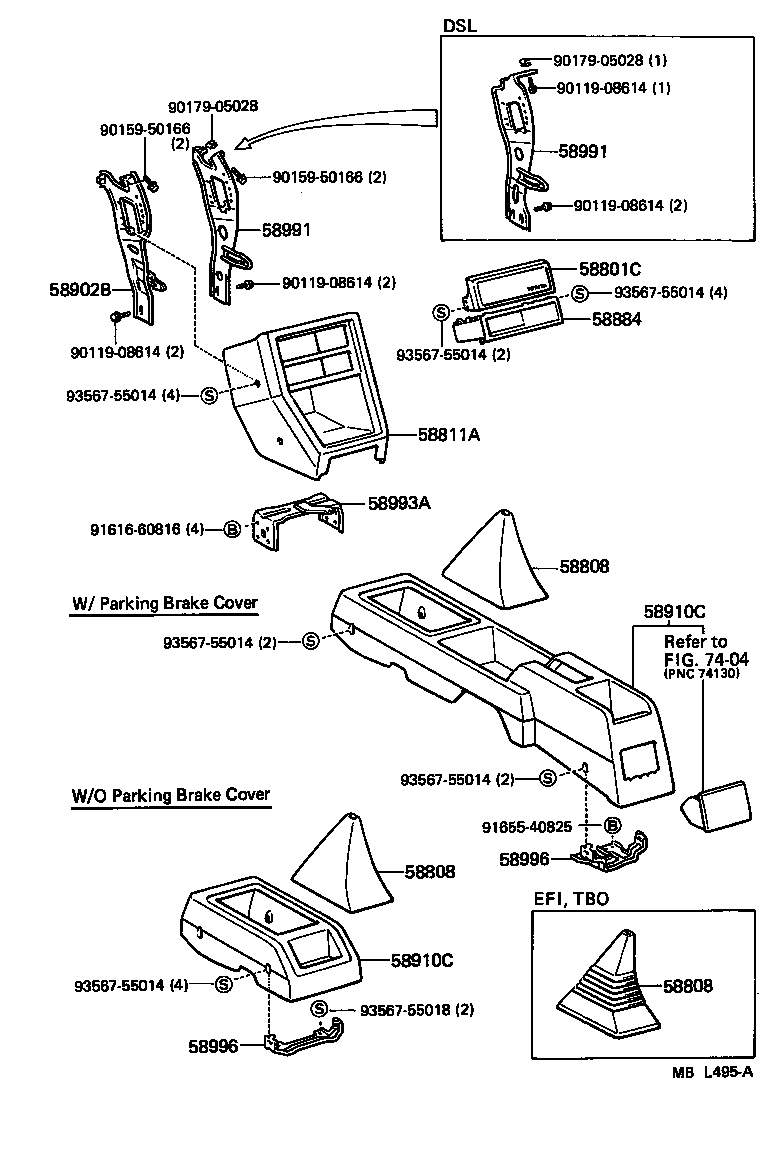

Click highlighted areas on diagram

diagram 58801C 58808 58808 58808 58811A 58884 58902B 58910C 58910C 58991 58991 58993A 58996 58996 7404 9011908614 9011908614 9011908614 9011908614 9015950166 9015950166 9017905028 9017905028 9161660816 9165540825 9356755014 9356755014 9356755014 9356755014 9356755014 9356755014 9356755018
Part # Description Qty Price
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-1005001

EP7#..MTM

BLACK,BLACK,TRIM1#,8#

 1
58808-1007001

EP7#,NP7#..MTM..(CBR,DSL)

BLACK,BLACK,TRIM1#,8#

 1
58808-1005001

EP7#..MTM..CBR

BLACK,BLACK,TRIM1#,8#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-1005001

EP7#..MTM

BLACK,BLACK,TRIM1#,8#

 1
58808-1007001

EP7#,NP7#..MTM..(CBR,DSL)

BLACK,BLACK,TRIM1#,8#

 1
58808-1005001

EP7#..MTM..CBR

BLACK,BLACK,TRIM1#,8#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-1005001

EP7#..MTM

BLACK,BLACK,TRIM1#,8#

 1
58808-1007001

EP7#,NP7#..MTM..(CBR,DSL)

BLACK,BLACK,TRIM1#,8#

 1
58808-1005001

EP7#..MTM..CBR

BLACK,BLACK,TRIM1#,8#

 1
58884 - COVER, STEREO OPENING
55521-16010

EP7#..CD,CS,DX,SE,SI,TBS,TOR,XL

W/CASSETTE

 1
58910C - BOX ASSY, CONSOLE, REAR
58911-1003003

EP7#,NP7#..CD,CS,DX,RI,STD,TOR

W/O PARKING BRAKE COVER,GRAY,GRAY,TRIM1#

 1
58910C - BOX ASSY, CONSOLE, REAR
58911-1003003

EP7#,NP7#..CD,CS,DX,RI,STD,TOR

W/O PARKING BRAKE COVER,GRAY,GRAY,TRIM1#

 1
58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-10040

EP7#,NP7#..CD,CS,DX,RI,STD,TOR

W/O PARKING BRAKE COVER

 1
58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-10040

EP7#,NP7#..CD,CS,DX,RI,STD,TOR

W/O PARKING BRAKE COVER

 1
Common parts
90119-08614
90159-50166
90179-05028
91616-60816
91655-40825
93567-55014
93567-55018
Linked diagrams
7404
