EP76V-PVKRS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )EP7#..MTM

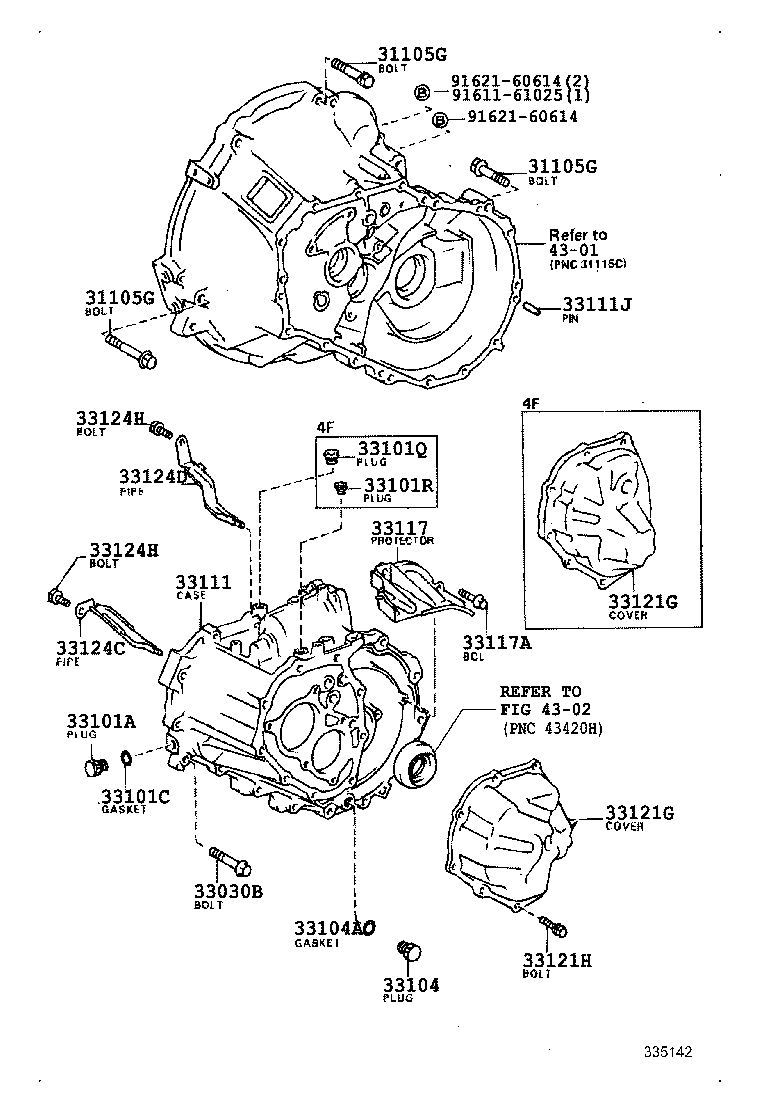

Click highlighted areas on diagram

diagram 31105G 31105G 31105G 33030B 33101A 33101C 33101Q 33101R 33104 33104A 33111 33111J 33117 33117A 33121G 33121G 33121H 33124C 33124D 33124H 33124H 4301 4302 9161161025 9162160614 9162160614
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-10097

EP7#..MTM

*10−1.25PX60−22,*10-1.25PX60-22

 1
91619-61260

EP7#..MTM

*12−1.25PX60−30,*12-1.25PX60-30

 3
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-10097

EP7#..MTM

*10−1.25PX60−22,*10-1.25PX60-22

 1
91619-61260

EP7#..MTM

*12−1.25PX60−30,*12-1.25PX60-30

 3
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-10097

EP7#..MTM

*10−1.25PX60−22,*10-1.25PX60-22

 1
91619-61260

EP7#..MTM

*12−1.25PX60−30,*12-1.25PX60-30

 3
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08086

EP7#,NP7#..MTM

*8−1.25PX45−27.5

 16
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006

EP7#,NP7#..MTM

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

EP7#,NP7#..MTM

 1
33101Q - PLUG, NO.1(FOR TRANSMISSION CASE)
90341-14008

EP7#..4F

 1
33101R - PLUG, NO.2(FOR TRANSMISSION CASE)
90341-10065

EP7#..4F

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

EP7#,NP7#..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

EP7#,NP7#..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33111-10070

EP7#,NP7#..MTM

 1
33111-10071

EP7#..MTM

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

EP7#,NP7#..MTM

長さ=23,外径=8

 4
33117 - PROTECTOR, MANUAL TRANSMISSION CASE
33117-17010

EP7#,NP7#..MTM

 1
33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)
90105-08040

EP7#,NP7#..MTM

 2
33121G - COVER, MANUAL TRANSMISSION CASE
33102-10010

EP7#..4F

 1
33121G - COVER, MANUAL TRANSMISSION CASE
33102-10010

EP7#..4F

 1
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
90119-08494

EP7#,NP7#..MTM

 9
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-10010

EP7#,NP7#..MTM

 1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-10020

EP7#,NP7#..MTM

 1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-60812

EP7#..MTM

 2
91611-60820

EP7#,NP7#..MTM

 2
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-60812

EP7#..MTM

 2
91611-60820

EP7#,NP7#..MTM

 2
Common parts
91611-61025
91621-60614
Linked diagrams
4301
4302
