EP71-PHPST (1986)

Toyota Starlet

Production Jan 1986 - Dec 1989
Engine 2ETELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8601-8712)TBO

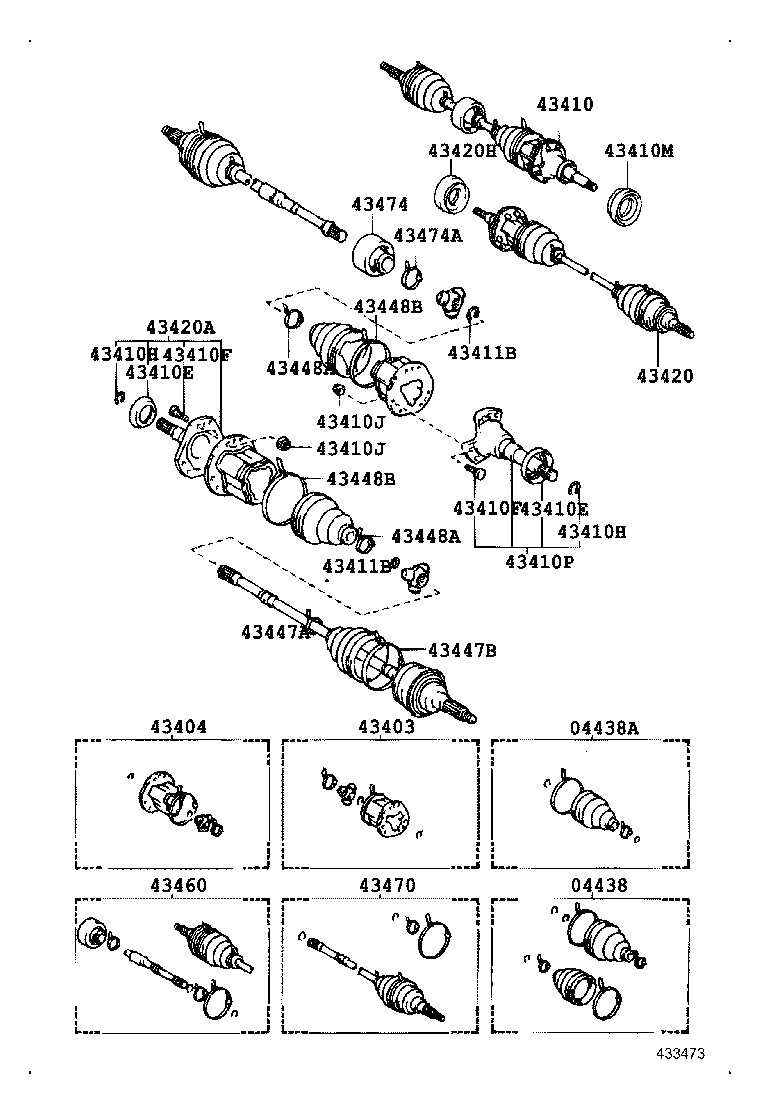

Click highlighted areas on diagram

diagram 04438 04438A 43403 43404 43410 43410E 43410E 43410F 43410F 43410H 43410H 43410J 43410J 43410M 43410P 43411B 43411B 43420 43420A 43420H 43447A 43447B 43448A 43448A 43448B 43448B 43460 43470 43474 43474A
Part # Description Qty Price
04438 - BOOT KIT, FRONT DRIVE SHAFT
04438-17010

EP71..TBO

 2
04438-10020

EP7#

 2
04438-12080

EP71..TBO

 2
04438-17011

EP71..TBO

 2
04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
04438-12010

EP71..TBO

BOOT OD=88.1

 2
04438-10010

EP7#

 2
04438-12070

EP71..TBO

BOOT OD=88.1

 2
43403 - JOINT SET, FRONT AXLE INBOARD, RH
43403-19085

EP71..TBO

 1
43403-19035

EP71..TBO

 1
43403-19036

EP71..TBO

 1
43403-19045

EP7#

 1
43404 - JOINT SET, FRONT AXLE INBOARD, LH
43403-19045

EP7#

 1
43403-19036

EP71..TBO

 1
43403-19035

EP71..TBO

 1
43403-19085

EP71..TBO

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-10060

EP71..TBO

 1
43410-10030

EP71..TBO

 1
43410E - COVER, DUST (FOR FRONT DRIVE SHAFT)
41336-12010

EP7#,NP7#

 2
43410E - COVER, DUST (FOR FRONT DRIVE SHAFT)
41336-12010

EP7#,NP7#

 2
43410F - BOLT, SERRATION (FOR FRONT DRIVE SHAFT)
90114-08006

EP71..TBO

 12
43410F - BOLT, SERRATION (FOR FRONT DRIVE SHAFT)
90114-08006

EP71..TBO

 12
43410H - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT)
90521-26002

EP71..TBO

 2
43410H - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT)
90521-26002

EP71..TBO

 2
43410J - NUT (FOR FRONT DRIVE SHAFT)
90179-08053

EP71..TBO

 12
43410J - NUT (FOR FRONT DRIVE SHAFT)
90179-08053

EP71..TBO

 12
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90311-34012

EP71,NP70..4FC

 1
90311-34005

EP71,NP70..4FC

 1
43410P - SHAFT SUB-ASSY, FRONT DRIVE, RH
41304-12010

EP71..TBO

 1
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-23035

EP71..TBO

 2
90520-22005

EP71..TBO

 2
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-23035

EP71..TBO

 2
90520-22005

EP71..TBO

 2
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-10030

EP71..TBO

 1
43420-10060

EP71..TBO

 1
43420A - SHAFT ASSY, FRONT DRIVE, LH
41309-12010

EP71..TBO

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-34013

EP71,NP70..4FC

 1
90311-34010

EP71,NP70..4FC

 1
43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01078

EP7#,NP7#

 2
43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01080

EP7#,NP7#

 2
90949-01080

EP71..TBO

 2
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01078

EP7#,NP7#

 2
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01078

EP7#,NP7#

 2
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01079

EP71..TBO

 2
90949-01076

EP71..TBO

 2
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01079

EP71..TBO

 2
90949-01076

EP71..TBO

 2
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-19325

EP71..TBO

 1
43460-19145

EP71..TBO

 1
43460-19146

EP71..TBO

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-19116

EP71..TBO

 1
43470-19275

EP71..TBO

 1
43470-19115

EP71..TBO

 1
43474 - DAMPER, DRIVE SHAFT
43474-12020

EP71..TBO

 1
43474-12010

EP71..TBO

 1
43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING)
42345-14010

EP71..TBO

 1

(8712- )TBO

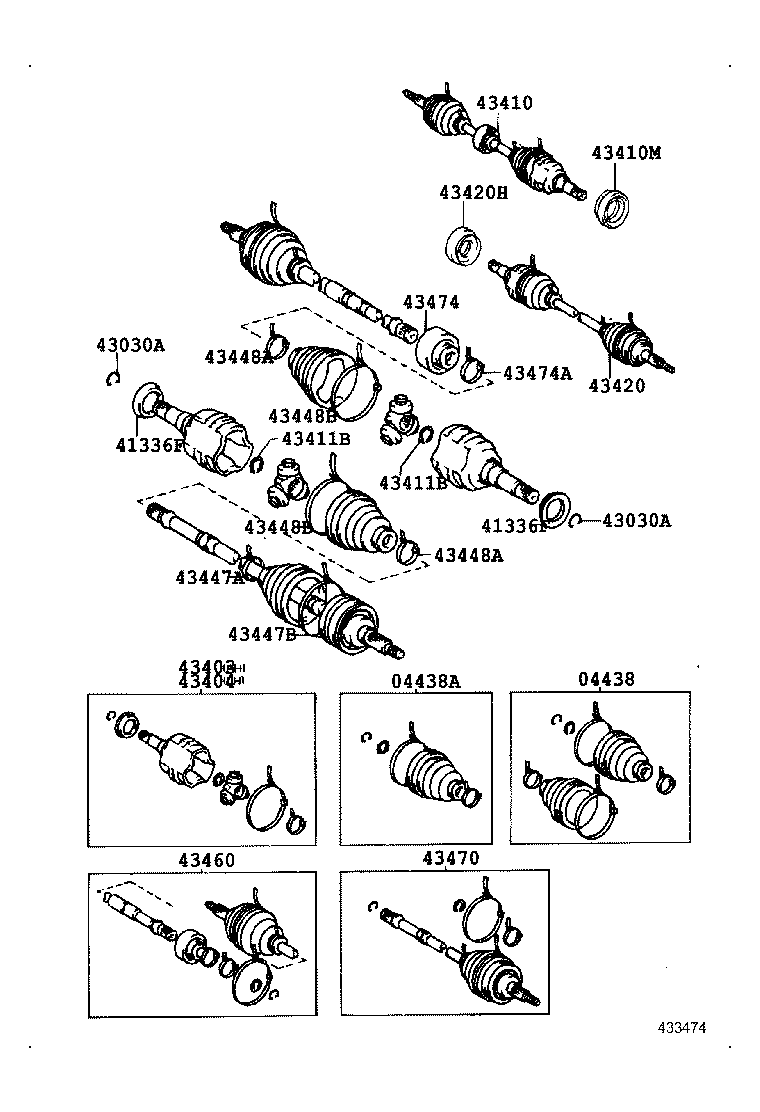

Click highlighted areas on diagram

diagram 04438 04438A 41336F 41336F 43030A 43030A 43403 43404 43410 43410M 43411B 43411B 43420 43420H 43447A 43447B 43448A 43448A 43448B 43448B 43460 43470 43474 43474A
Part # Description Qty Price
04438 - BOOT KIT, FRONT DRIVE SHAFT
04438-17010

EP71..TBO

 2
04438-10020

EP7#

 2
04438-12080

EP71..TBO

 2
04438-17011

EP71..TBO

 2
04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
04438-12010

EP71..TBO

BOOT OD=88.1

 2
04438-10010

EP7#

 2
04438-12070

EP71..TBO

BOOT OD=88.1

 2
41336F - COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET)
41336-12010

EP71..TBO

 2
41336F - COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET)
41336-12010

EP71..TBO

 2
43030A - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT)
90521-26004

EP71..TBO

 2
43030A - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT)
90521-26004

EP71..TBO

 2
43403 - JOINT SET, FRONT AXLE INBOARD, RH
43403-19085

EP71..TBO

 1
43403-19035

EP71..TBO

 1
43403-19036

EP71..TBO

 1
43403-19045

EP7#

 1
43404 - JOINT SET, FRONT AXLE INBOARD, LH
43403-19045

EP7#

 1
43403-19036

EP71..TBO

 1
43403-19035

EP71..TBO

 1
43403-19085

EP71..TBO

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-10060

EP71..TBO

 1
43410-10030

EP71..TBO

 1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90311-34012

EP71,NP70..4FC

 1
90311-34005

EP71,NP70..4FC

 1
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-23035

EP71..TBO

 2
90520-22005

EP71..TBO

 2
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-23035

EP71..TBO

 2
90520-22005

EP71..TBO

 2
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-10030

EP71..TBO

 1
43420-10060

EP71..TBO

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-34013

EP71,NP70..4FC

 1
90311-34010

EP71,NP70..4FC

 1
43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01078

EP7#,NP7#

 2
43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01080

EP7#,NP7#

 2
90949-01080

EP71..TBO

 2
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01078

EP7#,NP7#

 2
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01078

EP7#,NP7#

 2
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01079

EP71..TBO

 2
90949-01076

EP71..TBO

 2
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01079

EP71..TBO

 2
90949-01076

EP71..TBO

 2
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-19325

EP71..TBO

 1
43460-19145

EP71..TBO

 1
43460-19146

EP71..TBO

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-19116

EP71..TBO

 1
43470-19275

EP71..TBO

 1
43470-19115

EP71..TBO

 1
43474 - DAMPER, DRIVE SHAFT
43474-12020

EP71..TBO

 1
43474-12010

EP71..TBO

 1
43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING)
42345-14010

EP71..TBO

 1
