EP71-PHPSE (1986)

Toyota Starlet

Production Dec 1986 - Dec 1989
Engine 2EELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

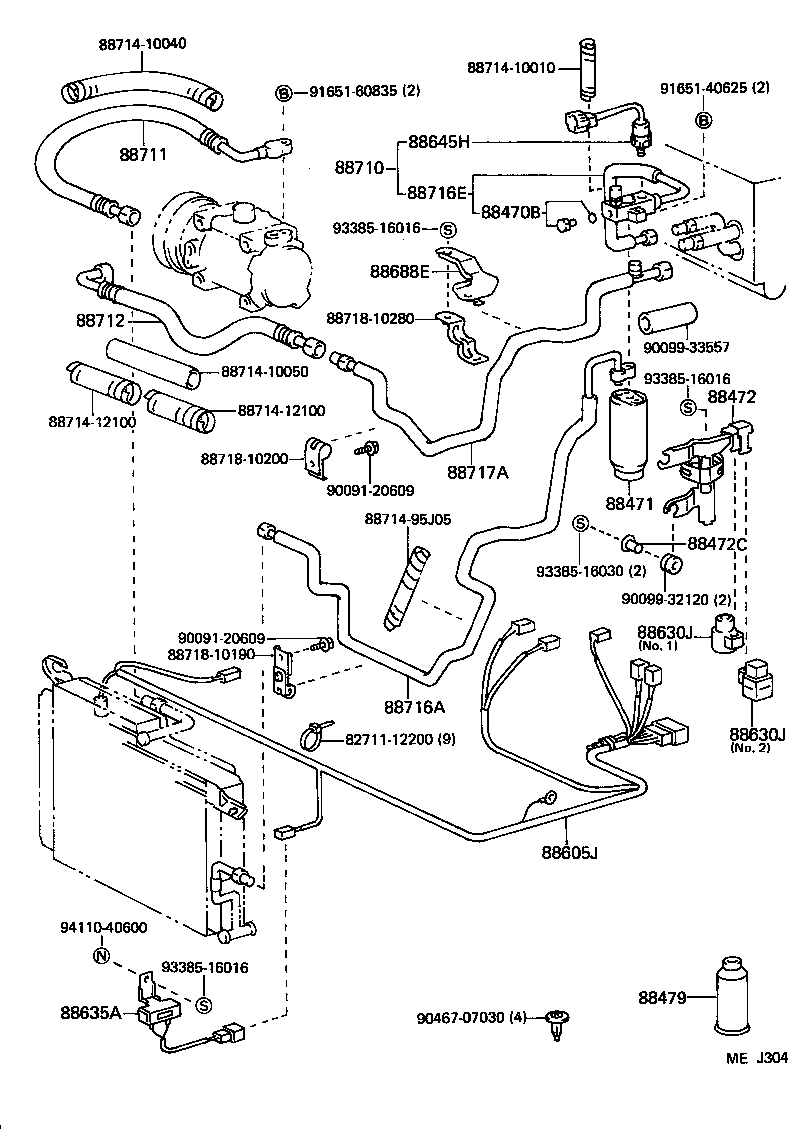

ILLUST NO. 1 OF 2(8612- )CBR,EFI

Click highlighted areas on diagram

diagram 8271112200 88470B 88471 88472 88472C 88479 88605J 88630J 88630J 88635A 88645H 88688E 88710 88711 88712 8871410010 8871410040 8871410050 8871412100 8871412100 8871495J05 88716A 88716E 88717A 8871810190 8871810200 8871810280 9009120609 9009120609 9009932120 9009933557 9046707030 9165140625 9165160835 9338516016 9338516016 9338516016 9338516030 9411040600
Part # Description Qty Price
88470B - BOLT, FUSE
88475-12020

EP7#,NP7#

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-10030

EP7#,NP7#

 1
88471-10020

EP7#..CBR,EFI

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-10130

EP7#

 1
88472-10160

EP7#,NP7#

 1
88472C - INSULATOR, RECEIVER BRACKET
88467-14070

EP7#,NP7#

 2
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

EP7#,NP7#

400G

 1
88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-10300

EP71..DX,SE,XL

W/PS,COOLER SW=A/C & ECONOMY

 1
88605-10320

EP71..EFI

COOLER SW=A/C & ECONOMY

 1
88605-10400

EP71..SI

W/*AAC

 1
88605-10460

EP71..EFI

COOLER SW=A/C

 1
88605-10380

EP71..SE

W/*AAC & PS

 1
88605-10360

EP71..SE

W/*AAC

 1
88605-10440

EP71..DX,SE,XL

W/PS,COOLER SW=A/C

 1
88605-10301

EP71..DX,SE,SI,XL

W/PS,COOLER SW=A/C & ECONOMY

 1
88605-10381

EP71..SE,SI

W/*AAC & PS

 1
88605-10361

EP71..SI

W/*AAC

 1
88605-10421

EP71..DX,RI,SI,STD,XL

COOLER SW=A/C

 1
88605-10281

EP71..DX,RI,SI,STD,XL

COOLER SW=A/C & ECONOMY

 1
88605-10441

EP71..DX,SE,SI,XL

W/PS,COOLER SW=A/C

 1
88630J - RELAY ASSY (FOR CONDENSER MOTOR)
88630-10070

EP7#,NP7#

NO.2

 1
88630-10060

EP7#,NP7#

NO.1

 1
88630J - RELAY ASSY (FOR CONDENSER MOTOR)
88630-10070

EP7#,NP7#

NO.2

 1
88630-10060

EP7#,NP7#

NO.1

 1
88635A - RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR)
88635-10020

EP7#,NP7#

 1
88645H - SWITCH, PRESSURE NO.1
88645-10010

EP7#,NP7#

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-10110

EP7#

 1
88688-10050

EP7#..CBR,EFI

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-10050

EP7#,NP7#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-10100

EP7#..CBR,EFI

 1
88711-10091

EP7#..CBR,EFI

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-10120

EP7#..CBR,EFI

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-10380

EP7#..CBR,EFI

 1
88716-10381

EP7#..CBR,EFI

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-10460

EP7#,NP7#

 1
88716-10440

EP7#..CBR,EFI

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-10081

EP7#..CBR,EFI

 1
88717-10080

EP7#..CBR,EFI

 1
Common parts
82711-12200
88714-10010
88714-10040
88714-10050
88714-12100
88714-95J05
88718-10190
88718-10200
88718-10280
90091-20609
90099-32120
90099-33557
90467-07030
91651-40625
91651-60835
93385-16016
93385-16030
94110-40600

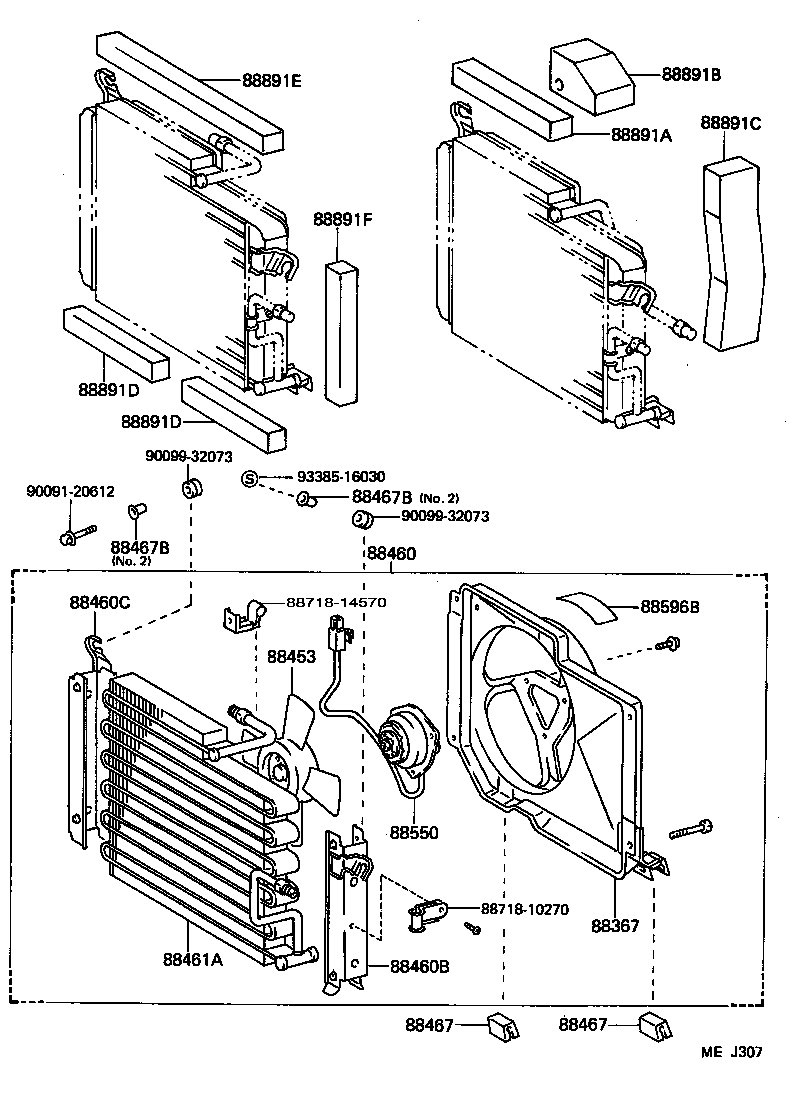

ILLUST NO. 2 OF 2(8612- )EP7#

Click highlighted areas on diagram

diagram 88367 88453 88460 88460B 88460C 88461A 88467 88467 88467B 88467B 88550 88596B 8871810270 8871814570 88891A 88891B 88891C 88891D 88891D 88891E 88891F 9009120612 9009932073 9009932073 9338516030
Part # Description Qty Price
88367 - SHROUD, COOLER BLOWER FAN
88454-10050

EP7#..CBR,EFI

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-10010

EP7#,NP7#

 1
88460 - CONDENSER ASSY, COOLER
88460-10140

EP7#..CBR,EFI

 1
88460-10120

EP7#..CBR,EFI

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88463-10090

EP7#,NP7#..CBR,DSL,EFI

 1
88463-10080

EP7#

 1
88460C - BRACKET, COOLER CONDENSER, NO.2
88463-10070

EP7#,NP7#

 1
88461A - CORE, COOLER CONDENSER
88461-10050

EP7#..CBR,EFI

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-10010

EP7#,NP7#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-10010

EP7#,NP7#

 2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-22040

EP7#

NO.2

 2
88469-22010

EP7#,NP7#

NO.2

 2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-22040

EP7#

NO.2

 2
88469-22010

EP7#,NP7#

NO.2

 2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-10040

EP7#,NP7#

 1
88596B - PLATE, CAUTION, NO.1
88596-24010

EP7#,NP7#..CBR,DSL,EFI

 1
Common parts
88718-10270
88718-14570
90091-20612
90099-32073
93385-16030
