EP71-PHMST (1986)
Toyota Starlet
Production
Jan 1986
-
Dec 1989
Engine
2ETELU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8601- )2ETELU

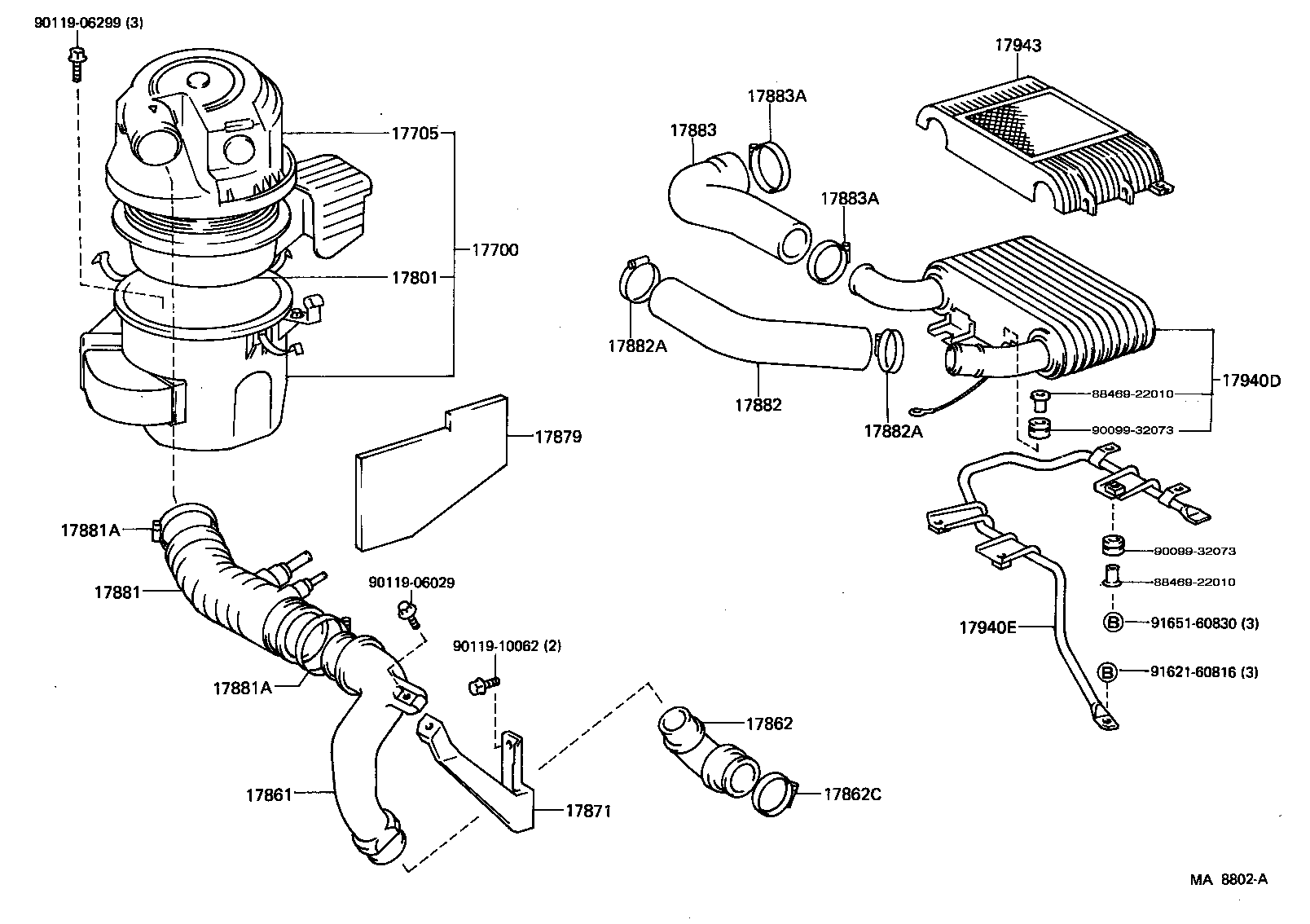

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-11240 |
2ETELU..EP71 |
1 | ||
| 17700-11380 |
2ETELU..EP71..5F |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-11210 |
2ETELU..EP71 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-63010 |
2EELU,2ETELU..EP71 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-11050 |
2ETELU..EP71 |
1 | ||
| 17862 - CONNECTOR, INTAKE AIR, NO.2 | ||||
| 17862-11051 |
2ETELU..EP71 |
1 | ||
| 17862-11050 |
2ETELU..EP71 |
1 | ||
| 17862C - CLAMP(FOR INTAKE AIR CONNECTOR NO.2) | ||||
| 90460-57002 |
2ETELU..EP71 |
1 | ||
| 90460-55006 |
2ETELU..EP71 |
1 | ||
| 17871 - STAY, AIR CONNECTOR | ||||
| 17871-11010 |
2ETELU..EP71 |
1 | ||
| 17879 - PAD, AIR CLEANER INLET | ||||
| 17879-11010 |
2ETELU..EP71 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-11090 |
2ETELU..EP71 |
1 | ||
| 17881-11140 |
2ETELU..EP71..5F |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-75001 |
2EELU,2ETELU..EP71 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-75001 |
2EELU,2ETELU..EP71 |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17341-11030 |
2ETELU..EP71 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-65004 |
2ETELU..EP71 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-65004 |
2ETELU..EP71 |
2 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17342-11040 |
2ETELU..EP71 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-65004 |
2ETELU..EP71 INTER COOLER SIDE |
1 | ||
| 90460-75001 |
2ETELU..EP71 THROTTLE BODY SIDE |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-65004 |
2ETELU..EP71 INTER COOLER SIDE |
1 | ||
| 90460-75001 |
2ETELU..EP71 THROTTLE BODY SIDE |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-11010 |
2ETELU..EP71 |
1 | ||
| 17940E - BRACKET, INTERCOOLER SUPPORT | ||||
| 17945-11010 |
2ETELU..EP71 |
1 | ||
| 17943 - PROTECTOR, INTERCOOLER | ||||
| 17943-11010 |
2ETELU..EP71 |
1 | ||
| Common parts | ||||
| 88469-22010 | ||||
| 90099-32073 | ||||
| 90119-06029 | ||||
| 90119-06299 | ||||
| 90119-10062 | ||||
| 91621-60816 | ||||
| 91651-60830 | ||||
