EP71-PHMSE (1984)
Toyota Starlet
ILLUST NO. 1 OF 2(8410- )

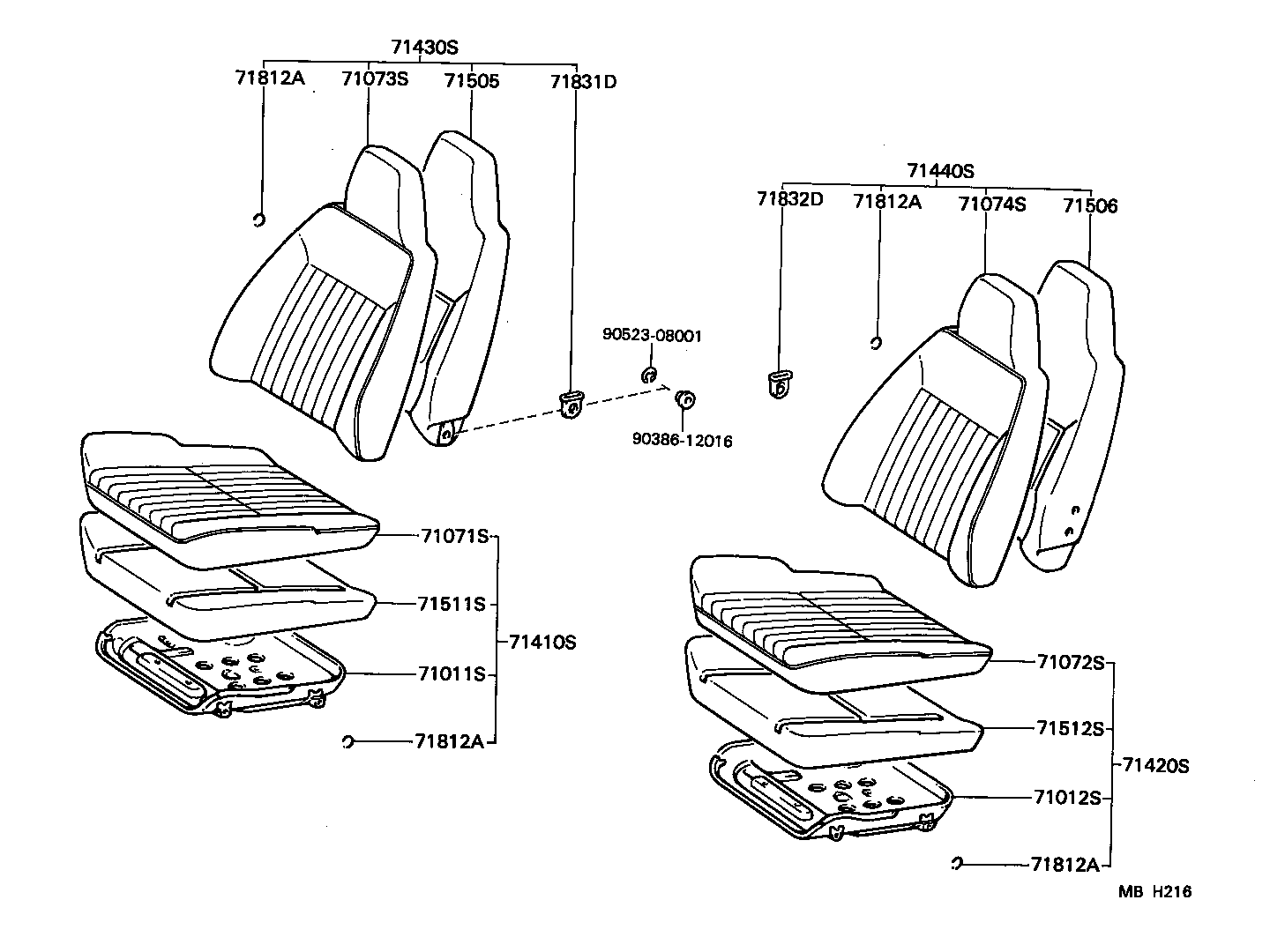

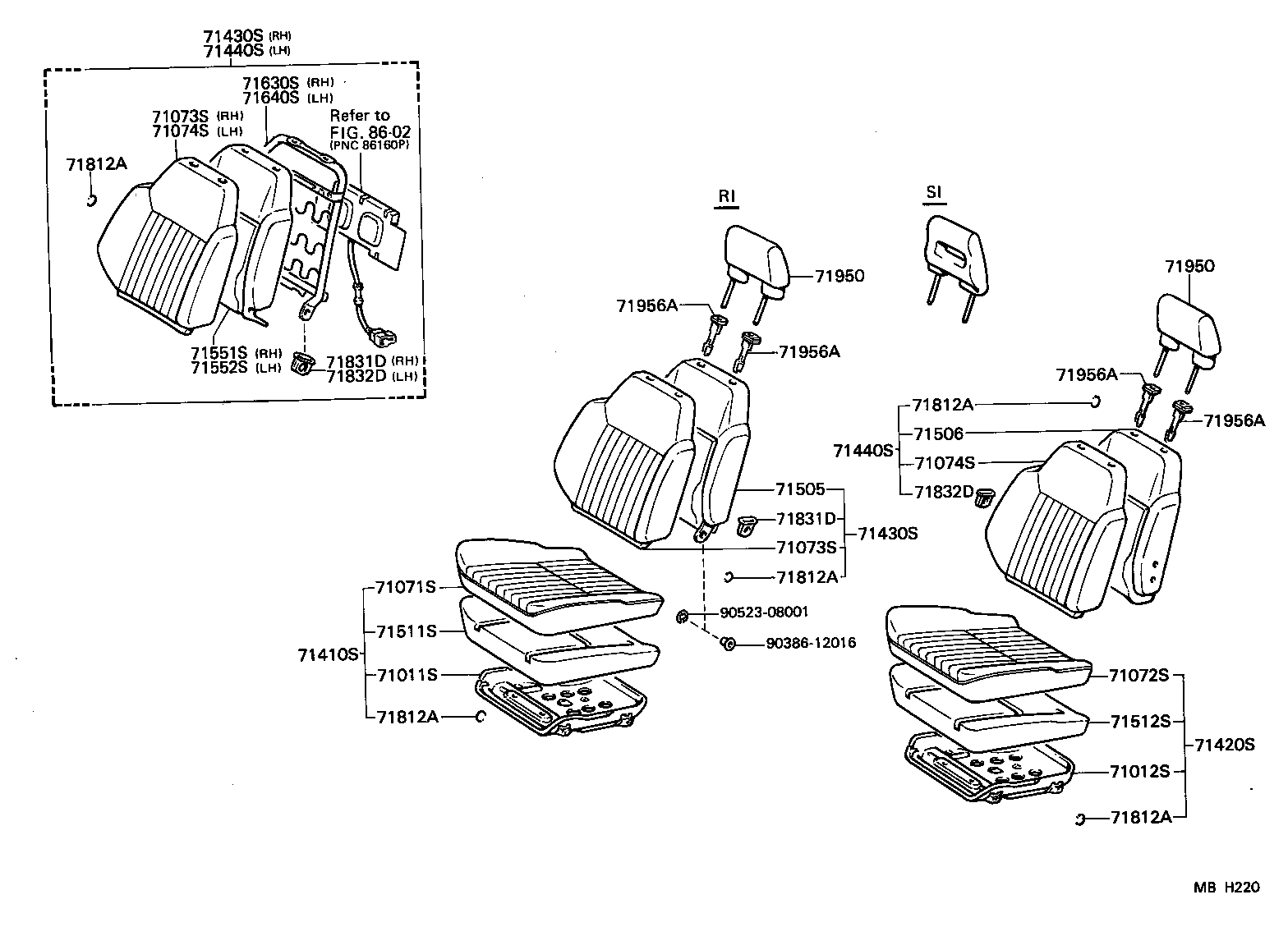

HIGHT BACK SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-10130 |
EP71..SE,SI W/LIFTER |
1 | ||
| 71011-10131 |
EP71..SE W/LIFTER |
1 | ||
| 71011-10130 |
EP71..SE W/LIFTER |
1 | ||
| 71011-10120 |
EP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 71011-10080 |
EP7#,NP7# |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-10010 |
EP7#,NP7# |
1 | ||
| 71012-10040 |
EP7# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1067002 |
EP71..SI W/LIFTER,FULL FB,RED,RED,TRIM1# |
1 | ||
| 71071-1066003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1066002 |
EP71..SI FULL FB,RED,RED,TRIM1# |
1 | ||
| 71071-1067003 |
EP71..SI W/LIFTER,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1069004 |
EP71..SE FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1069003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1078003 |
EP71,NP70..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1080003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1078006 |
EP71,NP70..SE FULL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-1066003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1066002 |
EP71..SI FULL FB,RED,RED,TRIM1# |
1 | ||
| 71071-1068003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1068004 |
EP71..SE FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1078003 |
EP71,NP70..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1078006 |
EP71,NP70..SE FULL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1080003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1067002 |
EP71..SI W/LIFTER,FULL FB,RED,RED,TRIM1# |
1 | ||
| 71073-1067003 |
EP71..SI W/LIFTER,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1066003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1068004 |
EP71..SE FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1068003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1070002 |
EP71..SI W/BODY SONIC,FULL FB,RED,RED,TRIM1# |
1 | ||
| 71073-1070003 |
EP71..SI W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1066002 |
EP71..SI FULL FB,RED,RED,TRIM1# |
1 | ||
| 71073-1078003 |
EP71,NP70..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1078006 |
EP71,NP70..SE FULL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1080003 |
EP71..SI W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1079003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1017003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1007003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1018002 |
EP71..SI W/BODY SONIC,FULL FB,RED,RED,TRIM1# |
1 | ||
| 71074-1017002 |
EP71..SI FULL FB,RED,RED,TRIM1# |
1 | ||
| 71074-1018003 |
EP71..SI W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1007004 |
EP71..SE FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-1031003 |
EP71..SI W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1030003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1029003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1029006 |
EP71..SE FULL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1082002 |
EP71..SI W/LIFTER,FULL FB,RED,RED,TRIM1# |
1 | ||
| 71410-1079003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1082003 |
EP71..SI W/LIFTER,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1079004 |
EP71..SE FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1076003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1079103 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1076002 |
EP71..SI FULL FB,RED,RED,TRIM1# |
1 | ||
| 71410-1C02006 |
EP71,NP70..SE FULL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1C02003 |
EP71,NP70..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1079104 |
EP71..SE FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1C04003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1063004 |
EP71..SE FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-1063003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71420-1060002 |
EP71..SI FULL FB,RED,RED,TRIM1# |
1 | ||
| 71420-1060003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71420-1052003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71420-1054003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71420-1052006 |
EP71..SE FULL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1076002 |
EP71..SI W/LIFTER,FULL FB,RED,RED,TRIM1# |
1 | ||
| 71430-1071003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1070002 |
EP71..SI W/BODY SONIC,FULL FB,RED,RED,TRIM1# |
1 | ||
| 71430-1072003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1071002 |
EP71..SI FULL FB,RED,RED,TRIM1# |
1 | ||
| 71430-1072004 |
EP71..SE FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1076003 |
EP71..SI W/LIFTER,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1070003 |
EP71..SI W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1089003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1088006 |
EP71,NP70..SE FULL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1088003 |
EP71,NP70..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1C01003 |
EP71..SI W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1070003 |
EP71..SI W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1070002 |
EP71..SI W/BODY SONIC,FULL FB,RED,RED,TRIM1# |
1 | ||
| 71440-1072003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1072004 |
EP71..SE FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1071002 |
EP71..SI FULL FB,RED,RED,TRIM1# |
1 | ||
| 71440-1071003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1088003 |
EP71..SI SEMI FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1087003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1087006 |
EP71..SE FULL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-10020 |
EP71..SE |
1 | ||
| 71505-10040 |
EP71,NP70..SE |
1 | ||
| 71505-10030 |
EP71..EFI,TBO |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-10020 |
EP71..SE |
1 | ||
| 71506-10040 |
EP71,NP70..SE |
1 | ||
| 71506-10030 |
EP71..EFI,TBO |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-10200 |
EP71..EFI,TBO |
1 | ||
| 71511-10120 |
EP7#,NP7# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-10200 |
EP71..EFI,TBO |
1 | ||
| 71511-10120 |
EP7#,NP7# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
EP7#,NP7# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
EP7#,NP7# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
EP7#,NP7# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
EP7#,NP7# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-10010 |
EP7#,NP7# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-10010 |
EP7#,NP7# |
1 | ||
| Common parts | ||||
| 90386-12016 | ||||
| 90523-08001 | ||||
ILLUST NO. 1 OF 2(8410- )

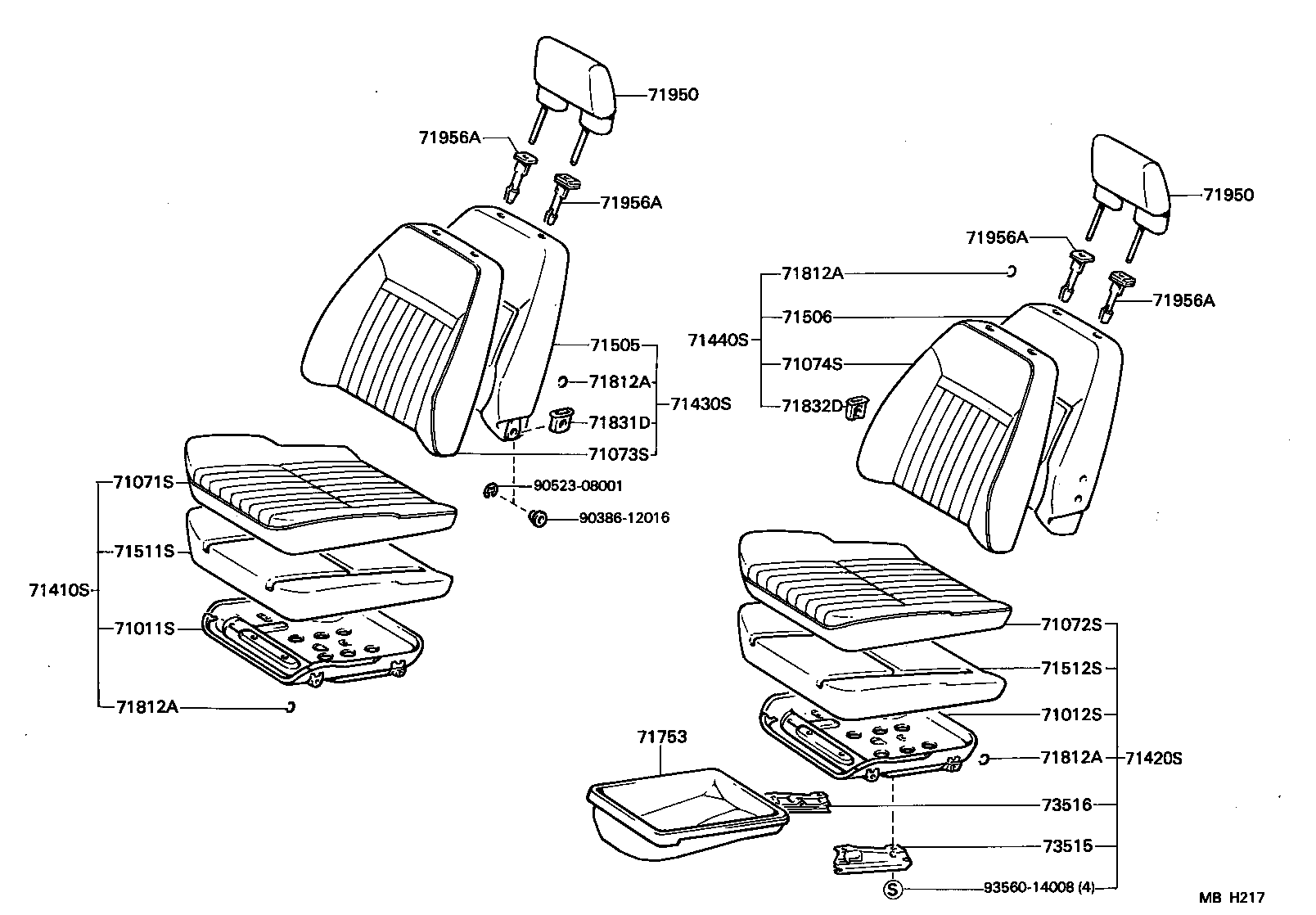

LOW BACK SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-10130 |
EP71..SE,SI W/LIFTER |
1 | ||
| 71011-10131 |
EP71..SE W/LIFTER |
1 | ||
| 71011-10130 |
EP71..SE W/LIFTER |
1 | ||
| 71011-10120 |
EP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 71011-10080 |
EP7#,NP7# |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-10010 |
EP7#,NP7# |
1 | ||
| 71012-10040 |
EP7# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1067002 |
EP71..SI W/LIFTER,FULL FB,RED,RED,TRIM1# |
1 | ||
| 71071-1066003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1066002 |
EP71..SI FULL FB,RED,RED,TRIM1# |
1 | ||
| 71071-1067003 |
EP71..SI W/LIFTER,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1069004 |
EP71..SE FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1069003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1078003 |
EP71,NP70..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1080003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1078006 |
EP71,NP70..SE FULL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-1066003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1066002 |
EP71..SI FULL FB,RED,RED,TRIM1# |
1 | ||
| 71071-1068003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1068004 |
EP71..SE FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1078003 |
EP71,NP70..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1078006 |
EP71,NP70..SE FULL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1080003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1067002 |
EP71..SI W/LIFTER,FULL FB,RED,RED,TRIM1# |
1 | ||
| 71073-1067003 |
EP71..SI W/LIFTER,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1066003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1068004 |
EP71..SE FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1068003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1070002 |
EP71..SI W/BODY SONIC,FULL FB,RED,RED,TRIM1# |
1 | ||
| 71073-1070003 |
EP71..SI W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1066002 |
EP71..SI FULL FB,RED,RED,TRIM1# |
1 | ||
| 71073-1078003 |
EP71,NP70..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1078006 |
EP71,NP70..SE FULL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1080003 |
EP71..SI W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1079003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1017003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1007003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1018002 |
EP71..SI W/BODY SONIC,FULL FB,RED,RED,TRIM1# |
1 | ||
| 71074-1017002 |
EP71..SI FULL FB,RED,RED,TRIM1# |
1 | ||
| 71074-1018003 |
EP71..SI W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1007004 |
EP71..SE FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-1031003 |
EP71..SI W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1030003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1029003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1029006 |
EP71..SE FULL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1082002 |
EP71..SI W/LIFTER,FULL FB,RED,RED,TRIM1# |
1 | ||
| 71410-1079003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1082003 |
EP71..SI W/LIFTER,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1079004 |
EP71..SE FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1076003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1079103 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1076002 |
EP71..SI FULL FB,RED,RED,TRIM1# |
1 | ||
| 71410-1C02006 |
EP71,NP70..SE FULL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1C02003 |
EP71,NP70..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1079104 |
EP71..SE FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1C04003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1063004 |
EP71..SE FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-1063003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71420-1060002 |
EP71..SI FULL FB,RED,RED,TRIM1# |
1 | ||
| 71420-1060003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71420-1052003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71420-1054003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71420-1052006 |
EP71..SE FULL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1076002 |
EP71..SI W/LIFTER,FULL FB,RED,RED,TRIM1# |
1 | ||
| 71430-1071003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1070002 |
EP71..SI W/BODY SONIC,FULL FB,RED,RED,TRIM1# |
1 | ||
| 71430-1072003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1071002 |
EP71..SI FULL FB,RED,RED,TRIM1# |
1 | ||
| 71430-1072004 |
EP71..SE FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1076003 |
EP71..SI W/LIFTER,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1070003 |
EP71..SI W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1089003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1088006 |
EP71,NP70..SE FULL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1088003 |
EP71,NP70..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1C01003 |
EP71..SI W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1070003 |
EP71..SI W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1070002 |
EP71..SI W/BODY SONIC,FULL FB,RED,RED,TRIM1# |
1 | ||
| 71440-1072003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1072004 |
EP71..SE FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1071002 |
EP71..SI FULL FB,RED,RED,TRIM1# |
1 | ||
| 71440-1071003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1088003 |
EP71..SI SEMI FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1087003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1087006 |
EP71..SE FULL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-10020 |
EP71..SE |
1 | ||
| 71505-10040 |
EP71,NP70..SE |
1 | ||
| 71505-10030 |
EP71..EFI,TBO |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-10020 |
EP71..SE |
1 | ||
| 71506-10040 |
EP71,NP70..SE |
1 | ||
| 71506-10030 |
EP71..EFI,TBO |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-10200 |
EP71..EFI,TBO |
1 | ||
| 71511-10120 |
EP7#,NP7# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-10200 |
EP71..EFI,TBO |
1 | ||
| 71511-10120 |
EP7#,NP7# |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-12010 |
EP71,NP70..SE |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
EP7#,NP7# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
EP7#,NP7# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
EP7#,NP7# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
EP7#,NP7# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-10010 |
EP7#,NP7# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-10010 |
EP7#,NP7# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1019004 |
EP71..SE BLUE,BLUE,TRIM8# |
2 | ||
| 71910-1019003 |
EP71..SE GRAY,GRAY,TRIM1# |
2 | ||
| 71910-1020001 |
EP71..SI,TBS,TOR BLACK,BLACK,TRIM1# |
2 | ||
| 71910-1011003 |
EP71,NP70..SE GRAY,GRAY,TRIM1# |
2 | ||
| 71910-1014001 |
EP71..SI,TBS,TOR BLACK,BLACK,TRIM1# |
2 | ||
| 71910-1011006 |
EP71,NP70..SE BROWN,BROWN,TRIM4# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1019004 |
EP71..SE BLUE,BLUE,TRIM8# |
2 | ||
| 71910-1019003 |
EP71..SE GRAY,GRAY,TRIM1# |
2 | ||
| 71910-1020001 |
EP71..SI,TBS,TOR BLACK,BLACK,TRIM1# |
2 | ||
| 71910-1011003 |
EP71,NP70..SE GRAY,GRAY,TRIM1# |
2 | ||
| 71910-1014001 |
EP71..SI,TBS,TOR BLACK,BLACK,TRIM1# |
2 | ||
| 71910-1011006 |
EP71,NP70..SE BROWN,BROWN,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006001 |
EP71..RI,SE,SI,TBS,TOR ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71930-1006014 |
EP71..SE ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001014 |
EP71..SE ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001001 |
EP71..RI,SE,SI,TBS,TOR ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006001 |
EP71..RI,SE,SI,TBS,TOR ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71930-1006014 |
EP71..SE ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001014 |
EP71..SE ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001001 |
EP71..RI,SE,SI,TBS,TOR ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006001 |
EP71..RI,SE,SI,TBS,TOR ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71930-1006014 |
EP71..SE ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001014 |
EP71..SE ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001001 |
EP71..RI,SE,SI,TBS,TOR ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006001 |
EP71..RI,SE,SI,TBS,TOR ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71930-1006014 |
EP71..SE ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001014 |
EP71..SE ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001001 |
EP71..RI,SE,SI,TBS,TOR ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 73515 - RAIL, FRONT SEAT UNDER TRAY, NO.1 | ||||
| 73515-12020 |
EP71,NP70..SE |
1 | ||
| 73515-12010 |
EP71..SE |
1 | ||
| 73516 - RAIL, FRONT SEAT UNDER TRAY, NO.2 | ||||
| 73516-12010 |
EP71..SE |
1 | ||
| 73516-12020 |
EP71,NP70..SE LISSE |
1 | ||
| Common parts | ||||
| 90386-12016 | ||||
| 90523-08001 | ||||
| 93560-14008 | ||||

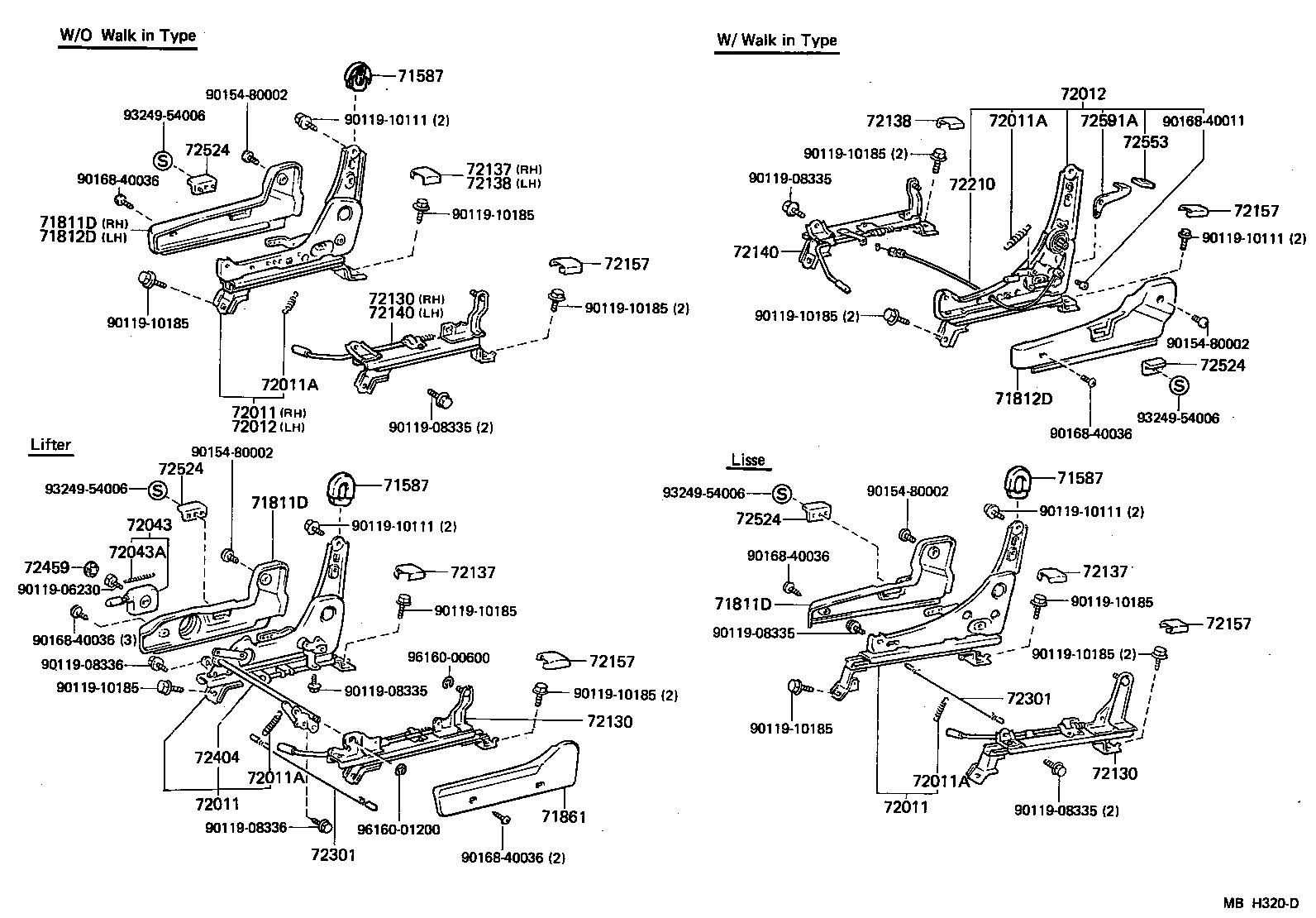

ILLUST NO. 1 OF 2(8410- )
SPORTS SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-10130 |
EP71..SE,SI W/LIFTER |
1 | ||
| 71011-10131 |
EP71..SE W/LIFTER |
1 | ||
| 71011-10130 |
EP71..SE W/LIFTER |
1 | ||
| 71011-10120 |
EP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 71011-10080 |
EP7#,NP7# |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-10010 |
EP7#,NP7# |
1 | ||
| 71012-10040 |
EP7# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1067002 |
EP71..SI W/LIFTER,FULL FB,RED,RED,TRIM1# |
1 | ||
| 71071-1066003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1066002 |
EP71..SI FULL FB,RED,RED,TRIM1# |
1 | ||
| 71071-1067003 |
EP71..SI W/LIFTER,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1069004 |
EP71..SE FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1069003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1078003 |
EP71,NP70..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1080003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1078006 |
EP71,NP70..SE FULL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-1066003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1066002 |
EP71..SI FULL FB,RED,RED,TRIM1# |
1 | ||
| 71071-1068003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1068004 |
EP71..SE FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1078003 |
EP71,NP70..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71071-1078006 |
EP71,NP70..SE FULL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1080003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1067002 |
EP71..SI W/LIFTER,FULL FB,RED,RED,TRIM1# |
1 | ||
| 71073-1067003 |
EP71..SI W/LIFTER,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1066003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1068004 |
EP71..SE FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1068003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1070002 |
EP71..SI W/BODY SONIC,FULL FB,RED,RED,TRIM1# |
1 | ||
| 71073-1070003 |
EP71..SI W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1066002 |
EP71..SI FULL FB,RED,RED,TRIM1# |
1 | ||
| 71073-1078003 |
EP71,NP70..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1078006 |
EP71,NP70..SE FULL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1080003 |
EP71..SI W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1079003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1067002 |
EP71..SI W/LIFTER,FULL FB,RED,RED,TRIM1# |
1 | ||
| 71073-1067003 |
EP71..SI W/LIFTER,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1066003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1068004 |
EP71..SE FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1068003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1070002 |
EP71..SI W/BODY SONIC,FULL FB,RED,RED,TRIM1# |
1 | ||
| 71073-1070003 |
EP71..SI W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1066002 |
EP71..SI FULL FB,RED,RED,TRIM1# |
1 | ||
| 71073-1078003 |
EP71,NP70..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1078006 |
EP71,NP70..SE FULL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1080003 |
EP71..SI W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71073-1079003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1017003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1007003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1018002 |
EP71..SI W/BODY SONIC,FULL FB,RED,RED,TRIM1# |
1 | ||
| 71074-1017002 |
EP71..SI FULL FB,RED,RED,TRIM1# |
1 | ||
| 71074-1018003 |
EP71..SI W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1007004 |
EP71..SE FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-1031003 |
EP71..SI W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1030003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1029003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1029006 |
EP71..SE FULL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1017003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1007003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1018002 |
EP71..SI W/BODY SONIC,FULL FB,RED,RED,TRIM1# |
1 | ||
| 71074-1017002 |
EP71..SI FULL FB,RED,RED,TRIM1# |
1 | ||
| 71074-1018003 |
EP71..SI W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1007004 |
EP71..SE FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-1031003 |
EP71..SI W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1030003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1029003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71074-1029006 |
EP71..SE FULL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1082002 |
EP71..SI W/LIFTER,FULL FB,RED,RED,TRIM1# |
1 | ||
| 71410-1079003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1082003 |
EP71..SI W/LIFTER,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1079004 |
EP71..SE FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1076003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1079103 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1076002 |
EP71..SI FULL FB,RED,RED,TRIM1# |
1 | ||
| 71410-1C02006 |
EP71,NP70..SE FULL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1C02003 |
EP71,NP70..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71410-1079104 |
EP71..SE FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1C04003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1063004 |
EP71..SE FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-1063003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71420-1060002 |
EP71..SI FULL FB,RED,RED,TRIM1# |
1 | ||
| 71420-1060003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71420-1052003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71420-1054003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71420-1052006 |
EP71..SE FULL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1076002 |
EP71..SI W/LIFTER,FULL FB,RED,RED,TRIM1# |
1 | ||
| 71430-1071003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1070002 |
EP71..SI W/BODY SONIC,FULL FB,RED,RED,TRIM1# |
1 | ||
| 71430-1072003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1071002 |
EP71..SI FULL FB,RED,RED,TRIM1# |
1 | ||
| 71430-1072004 |
EP71..SE FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1076003 |
EP71..SI W/LIFTER,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1070003 |
EP71..SI W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1089003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1088006 |
EP71,NP70..SE FULL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1088003 |
EP71,NP70..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1C01003 |
EP71..SI W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1076002 |
EP71..SI W/LIFTER,FULL FB,RED,RED,TRIM1# |
1 | ||
| 71430-1071003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1070002 |
EP71..SI W/BODY SONIC,FULL FB,RED,RED,TRIM1# |
1 | ||
| 71430-1072003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1071002 |
EP71..SI FULL FB,RED,RED,TRIM1# |
1 | ||
| 71430-1072004 |
EP71..SE FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1076003 |
EP71..SI W/LIFTER,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1070003 |
EP71..SI W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1089003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1088006 |
EP71,NP70..SE FULL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1088003 |
EP71,NP70..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-1C01003 |
EP71..SI W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1070003 |
EP71..SI W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1070002 |
EP71..SI W/BODY SONIC,FULL FB,RED,RED,TRIM1# |
1 | ||
| 71440-1072003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1072004 |
EP71..SE FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1071002 |
EP71..SI FULL FB,RED,RED,TRIM1# |
1 | ||
| 71440-1071003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1088003 |
EP71..SI SEMI FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1087003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1087006 |
EP71..SE FULL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1070003 |
EP71..SI W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1070002 |
EP71..SI W/BODY SONIC,FULL FB,RED,RED,TRIM1# |
1 | ||
| 71440-1072003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1072004 |
EP71..SE FULL FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1071002 |
EP71..SI FULL FB,RED,RED,TRIM1# |
1 | ||
| 71440-1071003 |
EP71..SI FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1088003 |
EP71..SI SEMI FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1087003 |
EP71..SE FULL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-1087006 |
EP71..SE FULL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-10020 |
EP71..SE |
1 | ||
| 71505-10040 |
EP71,NP70..SE |
1 | ||
| 71505-10030 |
EP71..EFI,TBO |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-10020 |
EP71..SE |
1 | ||
| 71506-10040 |
EP71,NP70..SE |
1 | ||
| 71506-10030 |
EP71..EFI,TBO |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-10200 |
EP71..EFI,TBO |
1 | ||
| 71511-10120 |
EP7#,NP7# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-10200 |
EP71..EFI,TBO |
1 | ||
| 71511-10120 |
EP7#,NP7# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-10160 |
EP71..SI,TBS,TOR W/BODY SONIC |
1 | ||
| 71551-10160 |
EP71..EFI,TBO W/BODY SONIC |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-10160 |
EP71..SI,TBS,TOR W/BODY SONIC |
1 | ||
| 71551-10160 |
EP71..EFI,TBO W/BODY SONIC |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-10210 |
EP71..EFI,TBO W/BODY SONIC |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-10170 |
EP71..EFI,TBO W/BODY SONIC |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
EP7#,NP7# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
EP7#,NP7# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
EP7#,NP7# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
EP7#,NP7# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
EP7#,NP7# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-10010 |
EP7#,NP7# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-10010 |
EP7#,NP7# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-10010 |
EP7#,NP7# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-10010 |
EP7#,NP7# |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1019004 |
EP71..SE BLUE,BLUE,TRIM8# |
2 | ||
| 71910-1019003 |
EP71..SE GRAY,GRAY,TRIM1# |
2 | ||
| 71910-1020001 |
EP71..SI,TBS,TOR BLACK,BLACK,TRIM1# |
2 | ||
| 71910-1011003 |
EP71,NP70..SE GRAY,GRAY,TRIM1# |
2 | ||
| 71910-1014001 |
EP71..SI,TBS,TOR BLACK,BLACK,TRIM1# |
2 | ||
| 71910-1011006 |
EP71,NP70..SE BROWN,BROWN,TRIM4# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1019004 |
EP71..SE BLUE,BLUE,TRIM8# |
2 | ||
| 71910-1019003 |
EP71..SE GRAY,GRAY,TRIM1# |
2 | ||
| 71910-1020001 |
EP71..SI,TBS,TOR BLACK,BLACK,TRIM1# |
2 | ||
| 71910-1011003 |
EP71,NP70..SE GRAY,GRAY,TRIM1# |
2 | ||
| 71910-1014001 |
EP71..SI,TBS,TOR BLACK,BLACK,TRIM1# |
2 | ||
| 71910-1011006 |
EP71,NP70..SE BROWN,BROWN,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006001 |
EP71..RI,SE,SI,TBS,TOR ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71930-1006014 |
EP71..SE ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001014 |
EP71..SE ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001001 |
EP71..RI,SE,SI,TBS,TOR ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006001 |
EP71..RI,SE,SI,TBS,TOR ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71930-1006014 |
EP71..SE ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001014 |
EP71..SE ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001001 |
EP71..RI,SE,SI,TBS,TOR ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006001 |
EP71..RI,SE,SI,TBS,TOR ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71930-1006014 |
EP71..SE ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001014 |
EP71..SE ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001001 |
EP71..RI,SE,SI,TBS,TOR ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006001 |
EP71..RI,SE,SI,TBS,TOR ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| 71930-1006014 |
EP71..SE ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001014 |
EP71..SE ﾛｯｸ無,W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001001 |
EP71..RI,SE,SI,TBS,TOR ﾛｯｸ無,W/O LOCK,BLACK,BLACK,TRIM1# |
2 | ||
| Common parts | ||||
| 90386-12016 | ||||
| 90523-08001 | ||||
| Linked diagrams | ||||
| 8602 | ||||
ILLUST NO. 2 OF 2(8410- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1209003 |
EP71..SE,SI LIFTER,GRAY,GRAY,TRIM1# |
1 | ||
| 71811-1208003 |
EP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL GRAY,GRAY,TRIM1# |
1 | ||
| 71811-1209003 |
EP71..SE LIFTER,GRAY,GRAY,TRIM1# |
1 | ||
| 71811-1208006 |
EP71,NP70..DX,SE,XL BROWN,BROWN,TRIM4# |
1 | ||
| 71811-1208003 |
EP7#,NP7# GRAY,GRAY,TRIM1# |
1 | ||
| 71811-1209014 |
EP71..SE LIFTER,BLUE,BLUE,TRIM8# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1209003 |
EP71..SE,SI LIFTER,GRAY,GRAY,TRIM1# |
1 | ||
| 71811-1208003 |
EP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL GRAY,GRAY,TRIM1# |
1 | ||
| 71811-1209003 |
EP71..SE LIFTER,GRAY,GRAY,TRIM1# |
1 | ||
| 71811-1208006 |
EP71,NP70..DX,SE,XL BROWN,BROWN,TRIM4# |
1 | ||
| 71811-1208003 |
EP7#,NP7# GRAY,GRAY,TRIM1# |
1 | ||
| 71811-1209014 |
EP71..SE LIFTER,BLUE,BLUE,TRIM8# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1209003 |
EP71..SE,SI LIFTER,GRAY,GRAY,TRIM1# |
1 | ||
| 71811-1208003 |
EP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL GRAY,GRAY,TRIM1# |
1 | ||
| 71811-1209003 |
EP71..SE LIFTER,GRAY,GRAY,TRIM1# |
1 | ||
| 71811-1208006 |
EP71,NP70..DX,SE,XL BROWN,BROWN,TRIM4# |
1 | ||
| 71811-1208003 |
EP7#,NP7# GRAY,GRAY,TRIM1# |
1 | ||
| 71811-1209014 |
EP71..SE LIFTER,BLUE,BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1204003 |
EP7#,NP7#..2D,5D GRAY,GRAY,TRIM1# |
1 | ||
| 71812-1204014 |
EP7#..(2D,5D)..(CD,DX,SE,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1204003 |
EP7#,NP7#..2D,5D GRAY,GRAY,TRIM1# |
1 | ||
| 71812-1204014 |
EP7#..(2D,5D)..(CD,DX,SE,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1001004 |
EP71..SE LIFTER,BLUE,BLUE,TRIM8# |
1 | ||
| 71861-1001003 |
EP71..SE,SI LIFTER,GRAY,GRAY,TRIM1# |
1 | ||
| 71861-1001003 |
EP71..SE LIFTER,GRAY,GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-10140 |
EP71..SE,SI LIFTER |
1 | ||
| 72010-10140 |
EP71..SE LIFTER |
1 | ||
| 72010-10130 |
EP71..DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 72010-10131 |
EP71,NP70 |
1 | ||
| 72010-10141 |
EP71..SE LIFTER |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-10140 |
EP71..SE,SI LIFTER |
1 | ||
| 72010-10140 |
EP71..SE LIFTER |
1 | ||
| 72010-10130 |
EP71..DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 72010-10131 |
EP71,NP70 |
1 | ||
| 72010-10141 |
EP71..SE LIFTER |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-10140 |
EP71..SE,SI LIFTER |
1 | ||
| 72010-10140 |
EP71..SE LIFTER |
1 | ||
| 72010-10130 |
EP71..DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 72010-10131 |
EP71,NP70 |
1 | ||
| 72010-10141 |
EP71..SE LIFTER |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
EP7#,NP7# L=53.6 |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
EP7#,NP7# L=53.6 |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
EP7#,NP7# L=53.6 |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
EP7#,NP7# L=53.6 |
2 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-10120 |
EP71..5D |
1 | ||
| 72020-10121 |
EP71,NP70..5D |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-10120 |
EP71..5D |
1 | ||
| 72020-10121 |
EP71,NP70..5D |
1 | ||
| 72043 - LEVER SUB-ASSY, SEAT LIFTER | ||||
| 72043-1201003 |
EP71..SE,SI GRAY,GRAY,TRIM1# |
1 | ||
| 72043-1201003 |
EP71..SE GRAY,GRAY,TRIM1# |
1 | ||
| 72043-1201014 |
EP71..SE BLUE,BLUE,TRIM8# |
1 | ||
| 72043A - SPRING, TENSION (FOR SEAT LIFTER LEVER) | ||||
| 90506-04001 |
EP71..SE,SI |
1 | ||
| 90506-04001 |
EP71..SE |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-10230 |
EP71..DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 72130-10240 |
EP71..SE,SI LIFTER |
1 | ||
| 72130-10230 |
EP71,NP70 |
1 | ||
| 72130-10240 |
EP71..SE LIFTER |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-10230 |
EP71..DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 72130-10240 |
EP71..SE,SI LIFTER |
1 | ||
| 72130-10230 |
EP71,NP70 |
1 | ||
| 72130-10240 |
EP71..SE LIFTER |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-10230 |
EP71..DX,RI,SI,STD,TBS,TOR,XL |
1 | ||
| 72130-10240 |
EP71..SE,SI LIFTER |
1 | ||
| 72130-10230 |
EP71,NP70 |
1 | ||
| 72130-10240 |
EP71..SE LIFTER |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-10030 |
EP7#,NP7# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-10030 |
EP7#,NP7# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-10030 |
EP7#,NP7# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-10020 |
EP7#,NP7# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-10020 |
EP7#,NP7# |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-10200 |
EP71,NP70..5D |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-10200 |
EP71,NP70..5D |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72138-10020 |
EP7#,NP7# RH |
1 | ||
| 72137-10030 |
EP7#,NP7# LH |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72138-10020 |
EP7#,NP7# RH |
1 | ||
| 72137-10030 |
EP7#,NP7# LH |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72138-10020 |
EP7#,NP7# RH |
1 | ||
| 72137-10030 |
EP7#,NP7# LH |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72138-10020 |
EP7#,NP7# RH |
1 | ||
| 72137-10030 |
EP7#,NP7# LH |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-10060 |
EP71..SE,SI |
1 | ||
| 72301-10060 |
EP71..SE |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-10060 |
EP71..SE,SI |
1 | ||
| 72301-10060 |
EP71..SE |
1 | ||
| 72404 - LINK SUB-ASSY, VERTICAL SEAT | ||||
| 72404-10020 |
EP71..SE,SI |
1 | ||
| 72459 - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-1201014 |
EP71..SE BLUE,BLUE,TRIM8# |
1 | ||
| 72459-1201003 |
EP71..SE,SI GRAY,GRAY,TRIM1# |
1 | ||
| 72459-1201003 |
EP71..SE GRAY,GRAY,TRIM1# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1209014 |
EP7#..CD,DX,SE,XL RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1203014 |
EP7#..CD,DX,SE,XL LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-1209006 |
EP71,NP70..DX,SE,XL RH,BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 72526-1203003 |
EP7#,NP7# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1203006 |
EP71,NP70..DX,SE,XL LH,BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 72525-1209003 |
EP7#,NP7# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1209014 |
EP7#..CD,DX,SE,XL RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1203014 |
EP7#..CD,DX,SE,XL LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-1209006 |
EP71,NP70..DX,SE,XL RH,BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 72526-1203003 |
EP7#,NP7# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1203006 |
EP71,NP70..DX,SE,XL LH,BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 72525-1209003 |
EP7#,NP7# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1209014 |
EP7#..CD,DX,SE,XL RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1203014 |
EP7#..CD,DX,SE,XL LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-1209006 |
EP71,NP70..DX,SE,XL RH,BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 72526-1203003 |
EP7#,NP7# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1203006 |
EP71,NP70..DX,SE,XL LH,BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 72525-1209003 |
EP7#,NP7# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1209014 |
EP7#..CD,DX,SE,XL RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1203014 |
EP7#..CD,DX,SE,XL LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-1209006 |
EP71,NP70..DX,SE,XL RH,BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 72526-1203003 |
EP7#,NP7# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72526-1203006 |
EP71,NP70..DX,SE,XL LH,BROWN,SEPIA BROWN,TRIM4# |
1 | ||
| 72525-1209003 |
EP7#,NP7# RH,GRAY,GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06230 | ||||
| 90119-08335 | ||||
| 90119-08336 | ||||
| 90119-10111 | ||||
| 90119-10185 | ||||
| 90154-80002 | ||||
| 90168-40011 | ||||
| 90168-40036 | ||||
| 93249-54006 | ||||
| 96160-00600 | ||||
| 96160-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
