EP71-PHMSE (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2EELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )2E#

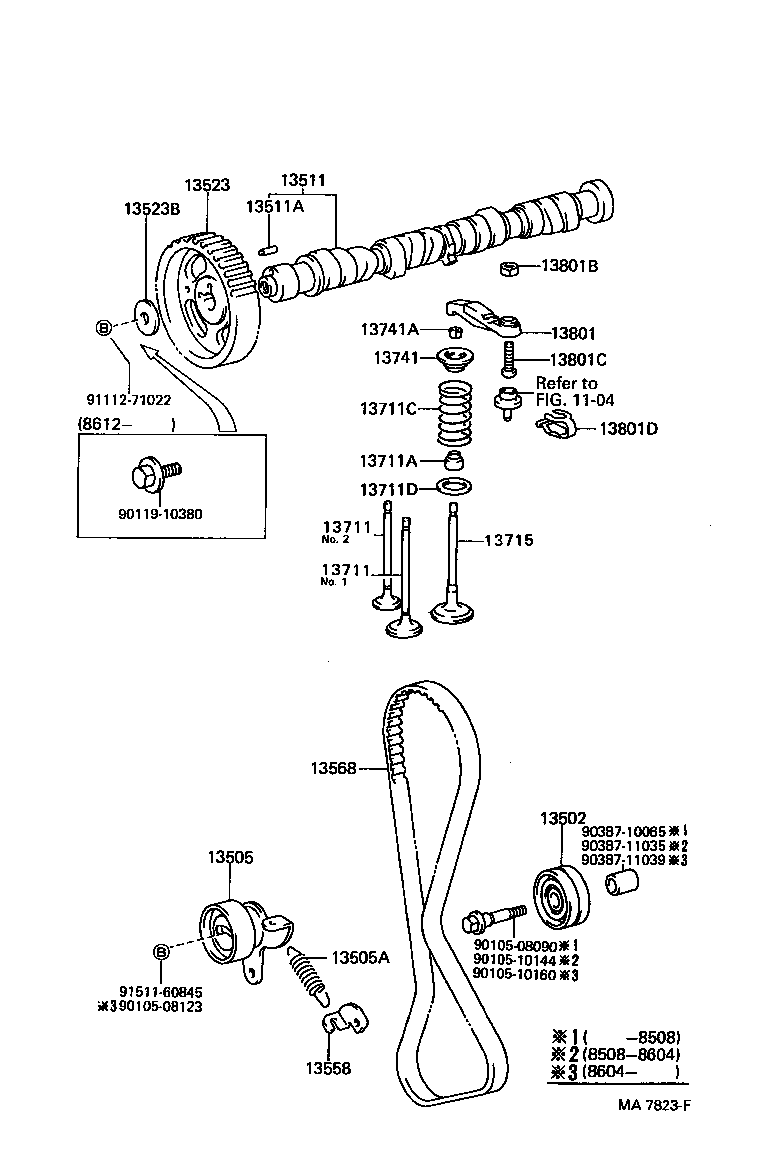

Click highlighted areas on diagram

diagram 1104 13502 13505 13505A 13511 13511A 13523 13523B 13558 13568 13711 13711 13711A 13711C 13711D 13715 13741 13741A 13801 13801B 13801C 13801D 9010508090 9010508123 9010510144 9010510160 9011910380 9038710065 9038711035 9038711039 9111271022 9151160845
Part # Description Qty Price
13502 - IDLER SUB-ASSY, TIMING BELT, NO.2
13503-10011

2E#..EP7#

 1
13503-10010

2E#..EP7#

 1
13505 - IDLER SUB-ASSY, TIMING BELT, NO.1
13505-11010

2E#..EP7#

 1
13505-10010

2E#..EP7#

 1
13505A - SPRING, TENSION(FOR IDLER)
90506-20050

2E#..EP7#

 1
90506-16050

2E#..EP7#

 1
90506-18059

2E#..EP7#

 1
90506-16050

2E#..EP7#

 1
13511 - CAMSHAFT
13501-11010

2EELU..EP71

 1
13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK)
90250-05121

2E#..EP7#

長さ=15,外径=5

 1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13523-10040

2E#..EP7#

 1
13523-10030

2E#..EP7#

 1
13523B - WASHER, PLATE(FOR TIMING GEAR)
90201-10019

2E#..EP7#

 1
13558 - BRACKET, SPRING(FOR IDLER)
13558-11010

2E#..EP7#

 1
13558-10010

2E#..EP7#

 1
13568 - BELT, TIMING
13568-11020

2E#..EP7#

 1
13568-11050

2E#..EP7#

 1
13568-11051

2E#..EP7#

 1
13568-11052

2E#..EP7#

 1
13711 - VALVE, INTAKE
13711-10020

2E#..EP7#

NO.1

 4
13712-10010

2EELU,2EL#..EP7#

NO.2

 4
13711 - VALVE, INTAKE
13711-10020

2E#..EP7#

NO.1

 4
13712-10010

2EELU,2EL#..EP7#

NO.2

 4
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02067

2EELU,2EL#..EP7#

 12
90913-02070

2E#..EP7#

 12
90913-02071

2E#..EP7#

 12
13711C - SPRING, COMPRESSION(FOR OUTER)
90501-35011

2E#..EP7#

 12
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-19008

2E#..EP7#

 12
13715 - VALVE, EXHAUST
13715-10030

2E#..EP7#

 4
13741 - RETAINER, VALVE SPRING
13741-10020

2E#..EP7#

 12
13741A - LOCK, VALVE SPRING RETAINER
90913-03021

2E#..EP7#

 24
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-10020

2E#..EP7#

 12
13811-10021

2E#..EP7#

 12
13801B - NUT, HEXAGON(FOR VALVE ADJUSTING)
90170-07003

2E#..EP7#

 12
90170-07004

2E#..EP7#

 12
13801C - SCREW, VALVE ADJUSTING
13788-10013

2E#..EP7#

 12
13788-10010

2E#..EP7#

 12
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
13935-10010

2E#..EP7#

 12
Common parts
90105-08090
90105-08123
90105-10144
90105-10160
90119-10380
90387-10065
90387-11035
90387-11039
91112-71022
91511-60845
Linked diagrams
1104
