EP71-PHMES (1984)
Toyota Starlet

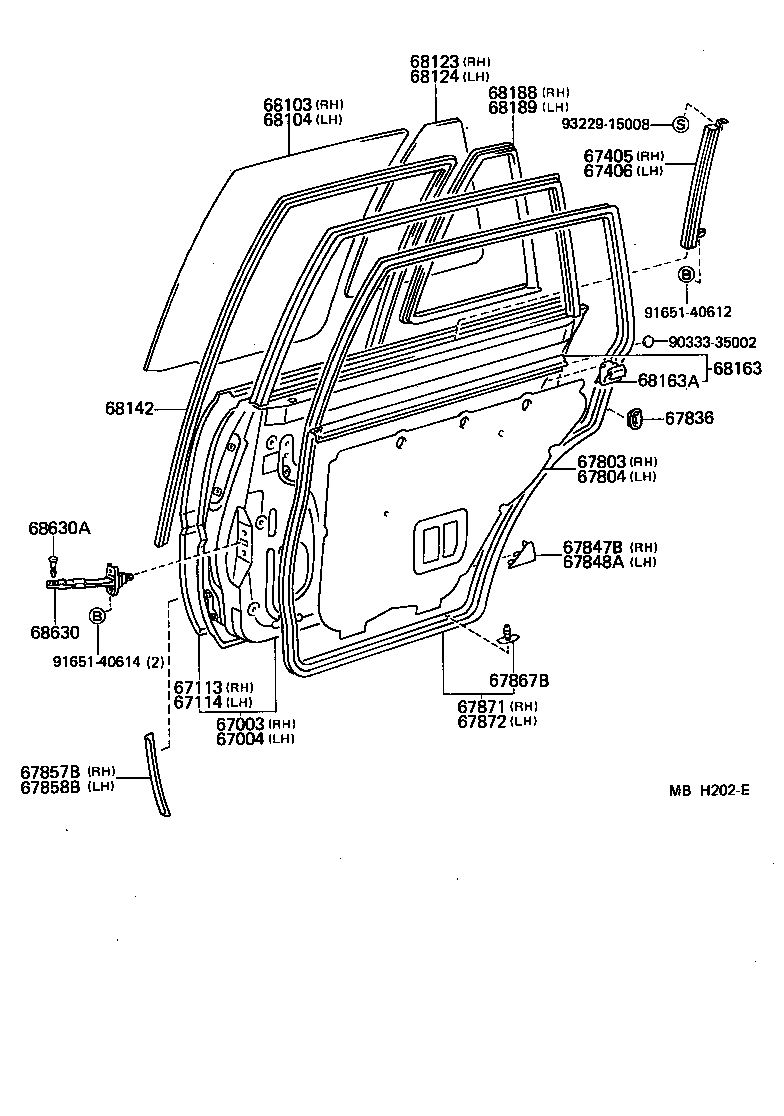

ILLUST NO. 1 OF 2(8410- )5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-10090 |
EP71,NP70..5D |
1 | ||
| 67003-10080 |
EP71..5D |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-10100 |
EP71,NP70..5D |
1 | ||
| 67004-10090 |
EP71..5D |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-10080 |
EP71,NP70..5D |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-10070 |
EP71,NP70..5D |
1 | ||
| 67405 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-10040 |
EP71,NP70..5D |
1 | ||
| 67406 - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-10040 |
EP71,NP70..5D |
1 | ||
| 67803 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-10030 |
EP71,NP70..5D |
1 | ||
| 67804 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-10010 |
EP71,NP70..5D |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-12030 |
EP71,NP70..5D |
2 | ||
| 67847B - SEAL, REAR DOOR VENT, RH NO.1 | ||||
| 67847-10020 |
EP71,NP70..5D |
1 | ||
| 67848A - SEAL, REAR DOOR VENT, LH NO.1 | ||||
| 67848-10010 |
EP71,NP70..5D |
1 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-10010 |
EP71,NP70..5D |
1 | ||
| 67857-12010 |
EP71,NP70..5D |
1 | ||
| 67858B - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-12010 |
EP71,NP70..5D |
1 | ||
| 67858-10010 |
EP71,NP70..5D |
1 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67868-30040 |
EP71,NP70..5D |
28 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-10050 |
EP71,NP70..5D |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-10050 |
EP71,NP70..5D |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-10080 |
EP71..5D..(SE,SI) *TT,厚さ=3.5,*TT,T=3.5 |
1 | ||
| 68113-10070 |
EP71,NP70..5D *TEM,厚さ=3.5,*TEM,T=3.5 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-10080 |
EP71..5D..(SE,SI) *TT,厚さ=3.5,*TT,T=3.5 |
1 | ||
| 68114-10070 |
EP71,NP70..5D *TEM,厚さ=3.5,*TEM,T=3.5 |
1 | ||
| 68123 - GLASS, REAR DOOR WINDOW, RH | ||||
| 68123-10100 |
EP71..5D..(SE,SI) *TT,厚さ=3.5,*TT,T=3.5 |
1 | ||
| 68123-10090 |
EP71,NP70..5D *TEM,厚さ=3.5,*TEM,T=3.5 |
1 | ||
| 68124 - GLASS, REAR DOOR WINDOW, LH | ||||
| 68124-10100 |
EP71..5D..(SE,SI) *TT,厚さ=3.5,*TT,T=3.5 |
1 | ||
| 68124-10090 |
EP71,NP70..5D *TEM,厚さ=3.5,*TEM,T=3.5 |
1 | ||
| 68142 - RUN, REAR DOOR GLASS | ||||
| 68142-10040 |
EP71,NP70..5D |
2 | ||
| 68163 - WEATHERSTRIP, REAR DOOR GLASS, OUTER | ||||
| 68180-10070 |
EP71,NP70..5D RH |
1 | ||
| 68230-10030 |
EP71,NP70..5D LH |
1 | ||
| 68163A - CLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68211-10070 |
EP71,NP70..5D |
8 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-10030 |
EP71,NP70..5D |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-10030 |
EP71,NP70..5D |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-10020 |
EP71,NP70..5D |
2 | ||
| 68630A - PIN(FOR REAR DOOR CHECK) | ||||
| 68617-12010 |
EP71..5D |
2 | ||
| 68617-90A00 |
EP71,NP70..5D |
2 | ||
| Common parts | ||||
| 90333-35002 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 93229-15008 | ||||

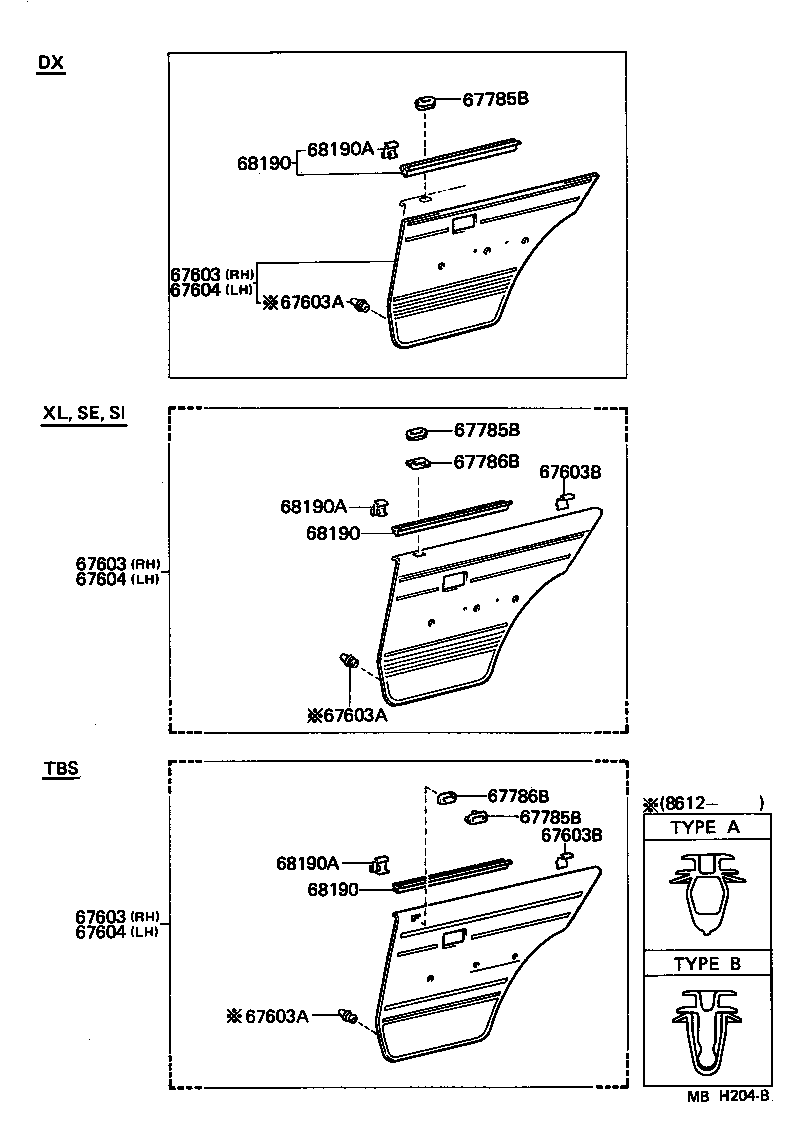

ILLUST NO. 2 OF 2(8410- )5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1025004 |
EP71..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1025003 |
EP71..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1034004 |
EP71..SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1034003 |
EP71..SE COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1034003 |
EP71..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1034004 |
EP71..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1051003 |
EP71,NP70..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1051006 |
EP71,NP70..SE BROWN,BROWN,TRIM4# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1025004 |
EP71..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1025003 |
EP71..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1034004 |
EP71..SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1034003 |
EP71..SE COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1034003 |
EP71..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1034004 |
EP71..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1051003 |
EP71,NP70..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1051006 |
EP71,NP70..SE BROWN,BROWN,TRIM4# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1025004 |
EP71..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1025003 |
EP71..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1034004 |
EP71..SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1034003 |
EP71..SE COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1034003 |
EP71..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1034004 |
EP71..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67630-1051003 |
EP71,NP70..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67630-1051006 |
EP71,NP70..SE BROWN,BROWN,TRIM4# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-16080 |
EP71..5D TYPE A |
16 | ||
| 67771-22010 |
EP71..5D TYPE B |
6 | ||
| 67771-16020 |
EP71..5D |
22 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-16080 |
EP71..5D TYPE A |
16 | ||
| 67771-22010 |
EP71..5D TYPE B |
6 | ||
| 67771-16020 |
EP71..5D |
22 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-16080 |
EP71..5D TYPE A |
16 | ||
| 67771-22010 |
EP71..5D TYPE B |
6 | ||
| 67771-16020 |
EP71..5D |
22 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 68211-10080 |
EP71..5D..(SE,SI,TBS,XL) |
4 | ||
| 67774-10010 |
EP71..5D..(SE,SI,TBS,XL) |
4 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 68211-10080 |
EP71..5D..(SE,SI,TBS,XL) |
4 | ||
| 67774-10010 |
EP71..5D..(SE,SI,TBS,XL) |
4 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1024003 |
EP71..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1024004 |
EP71..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1033004 |
EP71..SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1033003 |
EP71..SE COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1033004 |
EP71..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1033003 |
EP71..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1051006 |
EP71,NP70..SE BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1051003 |
EP71,NP70..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1024003 |
EP71..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1024004 |
EP71..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1033004 |
EP71..SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1033003 |
EP71..SE COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1033004 |
EP71..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1033003 |
EP71..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1051006 |
EP71,NP70..SE BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1051003 |
EP71,NP70..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1024003 |
EP71..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1024004 |
EP71..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1033004 |
EP71..SE COLD SPEC,BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1033003 |
EP71..SE COLD SPEC,GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1033004 |
EP71..SE BLUE,BLUE,TRIM8# |
1 | ||
| 67640-1033003 |
EP71..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67640-1051006 |
EP71,NP70..SE BROWN,BROWN,TRIM4# |
1 | ||
| 67640-1051003 |
EP71,NP70..SE GRAY,GRAY,TRIM1# |
1 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 69751-1201001 |
EP71,NP70..5D..(SE,SI,TBS,XL) BLACK,BLACK |
2 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 69751-1201001 |
EP71,NP70..5D..(SE,SI,TBS,XL) BLACK,BLACK |
2 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 69751-1201001 |
EP71,NP70..5D..(SE,SI,TBS,XL) BLACK,BLACK |
2 | ||
| 67786B - RETAINER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 67786-12010 |
EP71,NP70..5D..(SE,SI,TBS,XL) |
2 | ||
| 67786B - RETAINER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 67786-12010 |
EP71,NP70..5D..(SE,SI,TBS,XL) |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-10030 |
EP71,NP70..5D..(SE,SI,TBS,XL) RH |
1 | ||
| 68174-10020 |
EP71,NP70..5D..(SE,SI,TBS,XL) LH |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-10030 |
EP71,NP70..5D..(SE,SI,TBS,XL) RH |
1 | ||
| 68174-10020 |
EP71,NP70..5D..(SE,SI,TBS,XL) LH |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-10030 |
EP71,NP70..5D..(SE,SI,TBS,XL) RH |
1 | ||
| 68174-10020 |
EP71,NP70..5D..(SE,SI,TBS,XL) LH |
1 | ||
| 68190A - CLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 67773-12010 |
EP71,NP70..5D..(SE,SI,TBS,XL) |
8 | ||
| 68190A - CLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 67773-12010 |
EP71,NP70..5D..(SE,SI,TBS,XL) |
8 | ||
| 68190A - CLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 67773-12010 |
EP71,NP70..5D..(SE,SI,TBS,XL) |
8 | ||
