EP71-PHMES (1984)
Toyota Starlet
Production
Oct 1984
-
Dec 1989
Engine
2ELU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8410- )2EELU,2EL#

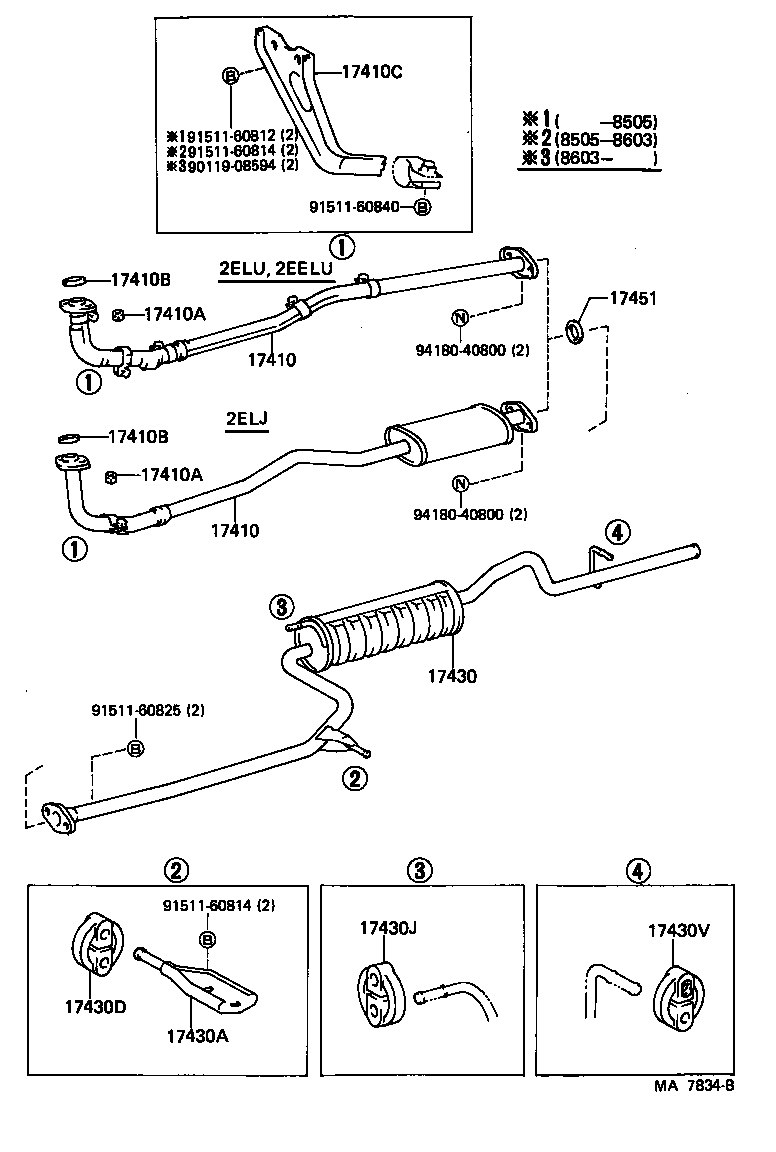

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-11100 |
2ELU..EP71 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-11100 |
2ELU..EP71 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
2E#,1N..EP7#,NP7# |
3 | ||
| 90179-10070 |
2E#..EP7# |
3 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
2E#,1N..EP7#,NP7# |
3 | ||
| 90179-10070 |
2E#..EP7# |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
2EELU,2EL#,1N..EP7#,NP7# |
1 | ||
| 90917-06004 |
2EELU,2EL#..EP7# |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
2EELU,2EL#,1N..EP7#,NP7# |
1 | ||
| 90917-06004 |
2EELU,2EL#..EP7# |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-11020 |
2EL#..EP7# |
1 | ||
| 17571-11020 |
2EELU,2EL#..EP7# |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-11010 |
2ELU..EP71 |
1 | ||
| 17430-11290 |
2ELU..EP71 COLD SPEC |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17572-11020 |
2E#,1N..EP7#,NP7# |
1 | ||
| 17572-11020 |
2E#..EP7# |
1 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 17565-11010 |
2E#..EP7# |
1 | ||
| 17565-11010 |
2E#,1N..EP7#,NP7# |
1 | ||
| 17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17565-11030 |
2E#..EP7# |
1 | ||
| 17565-11030 |
2E#,1N..EP7#,NP7# |
1 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17505-11010 |
2EELU,2EL#..EP7# |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06026 |
2EELU,2EL#..EP7# |
1 | ||
| Common parts | ||||
| 90119-08594 | ||||
| 91511-60812 | ||||
| 91511-60814 | ||||
| 91511-60825 | ||||
| 91511-60840 | ||||
| 94180-40800 | ||||
