EP71-PHMES (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )2EELU,2EL#

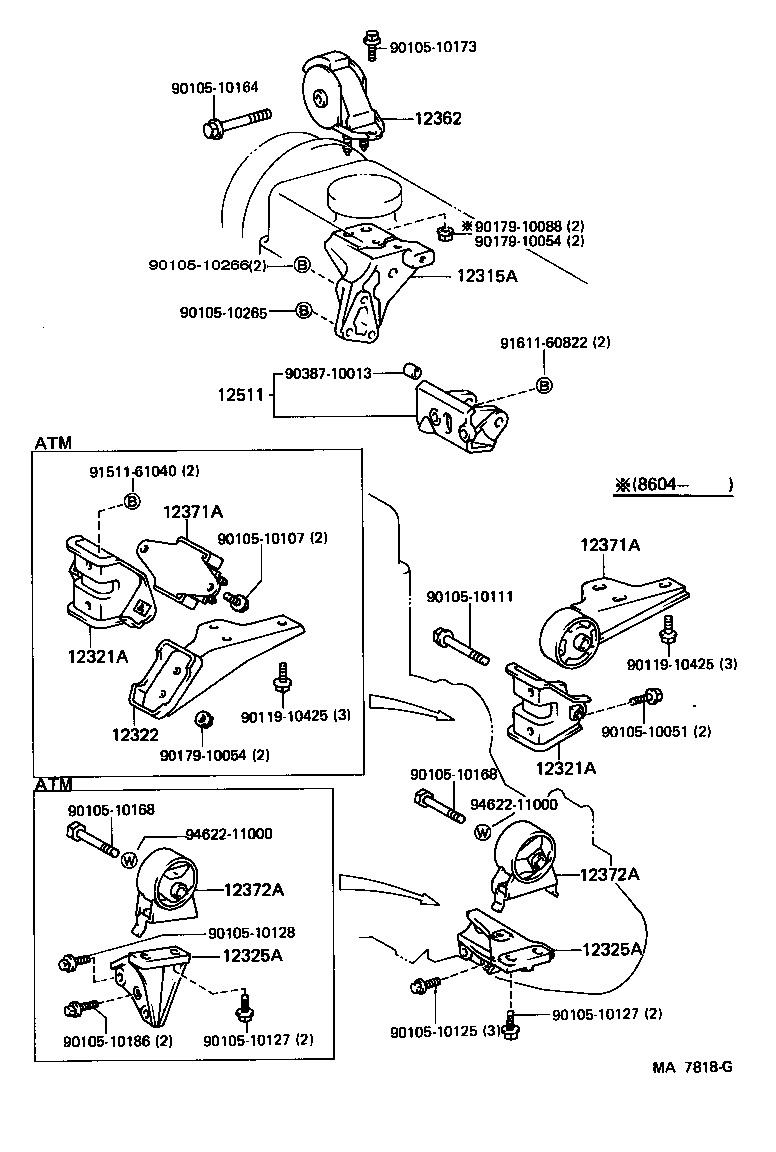

Click highlighted areas on diagram

diagram 12315A 12321A 12321A 12322 12325A 12325A 12362 12371A 12371A 12372A 12372A 12511 9010510051 9010510107 9010510111 9010510125 9010510127 9010510127 9010510128 9010510164 9010510168 9010510168 9010510173 9010510186 9010510265 9010510266 9011910425 9011910425 9017910054 9017910054 9017910088 9038710013 9151161040 9161160822 9462211000 9462211000
Part # Description Qty Price
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-10010

2E#..EP7#

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-10010

2E#..EP7#..MTM

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-10010

2E#..EP7#..MTM

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-10010

2E#..EP7#..MTM

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-10010

2E#..EP7#..MTM

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-10010

2EELU,2EL#..EP7#

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-10040

2EELU,2EL#..EP7#..MTM

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-10040

2EELU,2EL#..EP7#..MTM

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-10020

2E#..EP7#..MTM

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-10020

2E#..EP7#..MTM

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-11010

2E#..EP7#

 1
12511-10070

2E#..EP7#

 1
Common parts
90105-10051
90105-10107
90105-10111
90105-10125
90105-10127
90105-10128
90105-10164
90105-10168
90105-10173
90105-10186
90105-10265
90105-10266
90119-10425
90179-10054
90179-10088
90387-10013
91511-61040
91611-60822
94622-11000
