EP71-PHKNS (1984)
Toyota Starlet

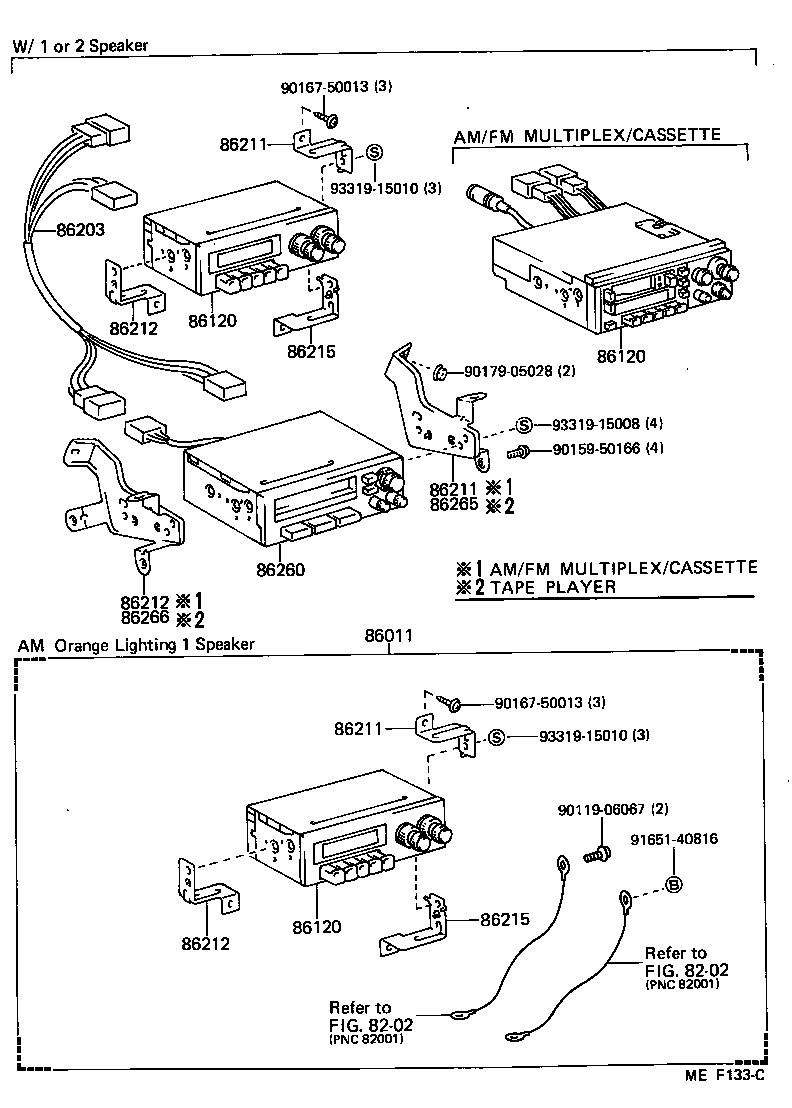

ILLUST NO. 1 OF 3(8410- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-14421 |
EP7#..CBR AM 1SPEAKER |
1 | ||
| 86120-10230 |
EP71..RI,SE,SI,TBS,TOR,XL FUJITSU TEN,AM/FM W/TAPE PLAYER 2SPEAKER |
1 | ||
| 86120-19025 |
EP71..DX,RI,SE,SI,TBS,TOR,XL AM/FM COMPO GREEN 4SPEAKER |
1 | ||
| 86120-19016 |
EP71..SE,XL FUJITSU TEN,AM/FM 2SPEAKER |
1 | ||
| 86120-16350 |
EP7#,NP7#..CBR,DSL FUJITSU TEN,AM 1SPEAKER |
1 | ||
| 86120-32190 |
EP71,NP70..SE,XL FUJITSU TEN,AM/FM 2SPEAKER |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-14421 |
EP7#..CBR AM 1SPEAKER |
1 | ||
| 86120-10230 |
EP71..RI,SE,SI,TBS,TOR,XL FUJITSU TEN,AM/FM W/TAPE PLAYER 2SPEAKER |
1 | ||
| 86120-19025 |
EP71..DX,RI,SE,SI,TBS,TOR,XL AM/FM COMPO GREEN 4SPEAKER |
1 | ||
| 86120-19016 |
EP71..SE,XL FUJITSU TEN,AM/FM 2SPEAKER |
1 | ||
| 86120-16350 |
EP7#,NP7#..CBR,DSL FUJITSU TEN,AM 1SPEAKER |
1 | ||
| 86120-32190 |
EP71,NP70..SE,XL FUJITSU TEN,AM/FM 2SPEAKER |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-14421 |
EP7#..CBR AM 1SPEAKER |
1 | ||
| 86120-10230 |
EP71..RI,SE,SI,TBS,TOR,XL FUJITSU TEN,AM/FM W/TAPE PLAYER 2SPEAKER |
1 | ||
| 86120-19025 |
EP71..DX,RI,SE,SI,TBS,TOR,XL AM/FM COMPO GREEN 4SPEAKER |
1 | ||
| 86120-19016 |
EP71..SE,XL FUJITSU TEN,AM/FM 2SPEAKER |
1 | ||
| 86120-16350 |
EP7#,NP7#..CBR,DSL FUJITSU TEN,AM 1SPEAKER |
1 | ||
| 86120-32190 |
EP71,NP70..SE,XL FUJITSU TEN,AM/FM 2SPEAKER |
1 | ||
| 86203 - WIRE, RADIO | ||||
| 86203-10080 |
EP71..DX,RI,SE,SI,TBS,TOR,XL W/4-SPEAKER |
1 | ||
| 86203-10100 |
EP7#,NP70 |
1 | ||
| 86203-10070 |
EP7# W/2-SPEAKER |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-10090 |
EP7#,NP7# |
1 | ||
| 86211-10100 |
EP71..RI,TBS,TOR,XL W/CASSETTE |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-10090 |
EP7#,NP7# |
1 | ||
| 86211-10100 |
EP71..RI,TBS,TOR,XL W/CASSETTE |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-10090 |
EP7#,NP7# |
1 | ||
| 86211-10100 |
EP71..RI,TBS,TOR,XL W/CASSETTE |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-10090 |
EP71..RI,TBS,TOR,XL W/CASSETTE |
1 | ||
| 86212-10080 |
EP7#,NP7# |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-10090 |
EP71..RI,TBS,TOR,XL W/CASSETTE |
1 | ||
| 86212-10080 |
EP7#,NP7# |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-10090 |
EP71..RI,TBS,TOR,XL W/CASSETTE |
1 | ||
| 86212-10080 |
EP7#,NP7# |
1 | ||
| 86215 - BRACKET, RADIO, NO.5 | ||||
| 86215-10110 |
EP7#,NP7# |
1 | ||
| 86215 - BRACKET, RADIO, NO.5 | ||||
| 86215-10110 |
EP7#,NP7# |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-19015 |
EP7# W/2-SPEAKER |
1 | ||
| 86260-19125 |
EP71,NP70..DX,RI,SE,SI,TBS,TOR,XL HIGH POWER |
1 | ||
| 86260-19105 |
EP7#,NP7# AUTO REVERSE |
1 | ||
| 86260-19025 |
EP71..DX,RI,SE,SI,TBS,TOR,XL W/4-SPEAKER |
1 | ||
| 86260-19135 |
EP71,NP70..RI,SE,SI,TBS,TOR,XL HIGH POWER W/EQUALIZER |
1 | ||
| 86260-19115 |
EP71,NP70..DX,RI,SE,SI,TBS,TOR,XL AUTO REVERSE W/FM |
1 | ||
| 86265 - BRACKET, TAPE PLAYER, NO.1 | ||||
| 86211-10100 |
EP7#..CD,CS,DX,RI,STD,XL |
1 | ||
| 86266 - BRACKET, TAPE PLAYER, NO.2 | ||||
| 86212-10090 |
EP7#..CD,CS,DX,RI,STD,XL |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90159-50166 | ||||
| 90167-50013 | ||||
| 90179-05028 | ||||
| 91651-40816 | ||||
| 93319-15008 | ||||
| 93319-15010 | ||||
| Linked diagrams | ||||
| 8202 | ||||

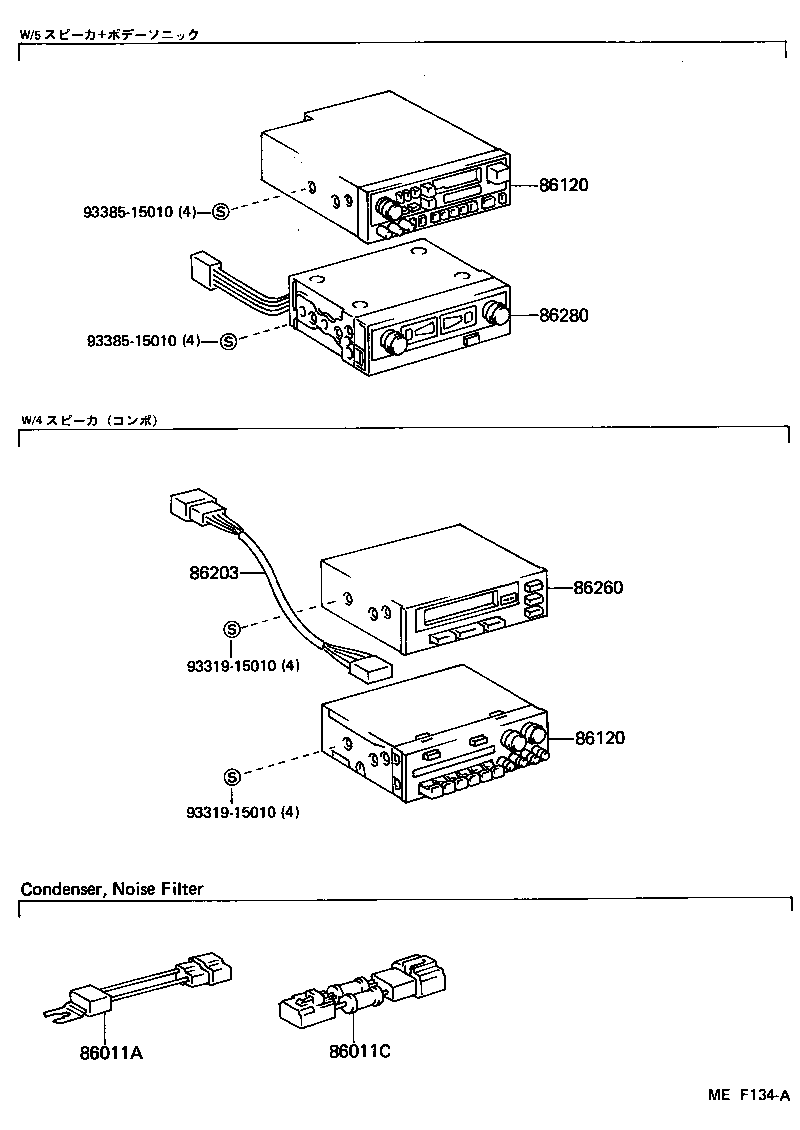

ILLUST NO. 2 OF 3(8410- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011C - FILTER, NOISE | ||||
| 90980-05049 |
EP71,NP70..DX,RI,SE,SI,TBS,TOR,XL WIPER MOTOR |
1 | ||
| 90980-05049 |
EP71..DX,RI,SE,SI,TBS,TOR,XL WIPER MOTOR |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-14421 |
EP7#..CBR AM 1SPEAKER |
1 | ||
| 86120-10230 |
EP71..RI,SE,SI,TBS,TOR,XL FUJITSU TEN,AM/FM W/TAPE PLAYER 2SPEAKER |
1 | ||
| 86120-19025 |
EP71..DX,RI,SE,SI,TBS,TOR,XL AM/FM COMPO GREEN 4SPEAKER |
1 | ||
| 86120-19016 |
EP71..SE,XL FUJITSU TEN,AM/FM 2SPEAKER |
1 | ||
| 86120-16350 |
EP7#,NP7#..CBR,DSL FUJITSU TEN,AM 1SPEAKER |
1 | ||
| 86120-32190 |
EP71,NP70..SE,XL FUJITSU TEN,AM/FM 2SPEAKER |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-14421 |
EP7#..CBR AM 1SPEAKER |
1 | ||
| 86120-10230 |
EP71..RI,SE,SI,TBS,TOR,XL FUJITSU TEN,AM/FM W/TAPE PLAYER 2SPEAKER |
1 | ||
| 86120-19025 |
EP71..DX,RI,SE,SI,TBS,TOR,XL AM/FM COMPO GREEN 4SPEAKER |
1 | ||
| 86120-19016 |
EP71..SE,XL FUJITSU TEN,AM/FM 2SPEAKER |
1 | ||
| 86120-16350 |
EP7#,NP7#..CBR,DSL FUJITSU TEN,AM 1SPEAKER |
1 | ||
| 86120-32190 |
EP71,NP70..SE,XL FUJITSU TEN,AM/FM 2SPEAKER |
1 | ||
| 86203 - WIRE, RADIO | ||||
| 86203-10080 |
EP71..DX,RI,SE,SI,TBS,TOR,XL W/4-SPEAKER |
1 | ||
| 86203-10100 |
EP7#,NP70 |
1 | ||
| 86203-10070 |
EP7# W/2-SPEAKER |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-19015 |
EP7# W/2-SPEAKER |
1 | ||
| 86260-19125 |
EP71,NP70..DX,RI,SE,SI,TBS,TOR,XL HIGH POWER |
1 | ||
| 86260-19105 |
EP7#,NP7# AUTO REVERSE |
1 | ||
| 86260-19025 |
EP71..DX,RI,SE,SI,TBS,TOR,XL W/4-SPEAKER |
1 | ||
| 86260-19135 |
EP71,NP70..RI,SE,SI,TBS,TOR,XL HIGH POWER W/EQUALIZER |
1 | ||
| 86260-19115 |
EP71,NP70..DX,RI,SE,SI,TBS,TOR,XL AUTO REVERSE W/FM |
1 | ||
| Common parts | ||||
| 93319-15010 | ||||
| 93385-15010 | ||||

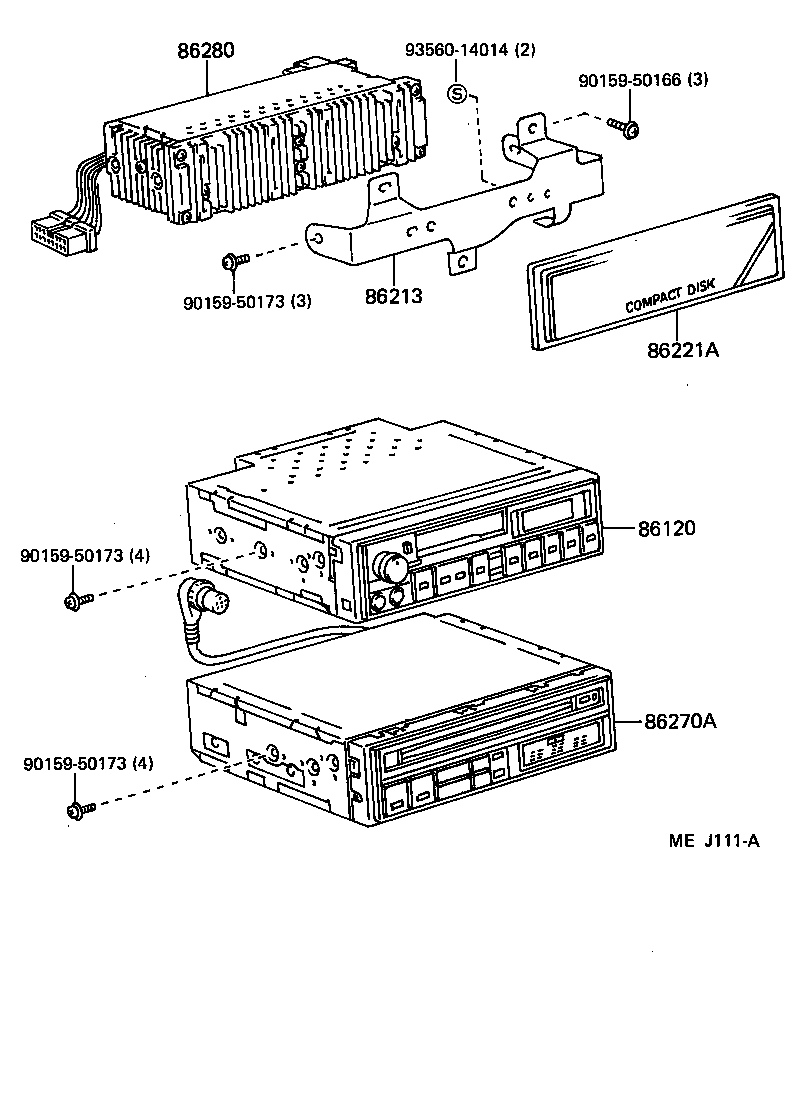

ILLUST NO. 3 OF 3(8612- )
W/CD-PLAYER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-14421 |
EP7#..CBR AM 1SPEAKER |
1 | ||
| 86120-10230 |
EP71..RI,SE,SI,TBS,TOR,XL FUJITSU TEN,AM/FM W/TAPE PLAYER 2SPEAKER |
1 | ||
| 86120-19025 |
EP71..DX,RI,SE,SI,TBS,TOR,XL AM/FM COMPO GREEN 4SPEAKER |
1 | ||
| 86120-19016 |
EP71..SE,XL FUJITSU TEN,AM/FM 2SPEAKER |
1 | ||
| 86120-16350 |
EP7#,NP7#..CBR,DSL FUJITSU TEN,AM 1SPEAKER |
1 | ||
| 86120-32190 |
EP71,NP70..SE,XL FUJITSU TEN,AM/FM 2SPEAKER |
1 | ||
| Common parts | ||||
| 90159-50166 | ||||
| 90159-50173 | ||||
| 93560-14014 | ||||
