EP71-PHKNS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

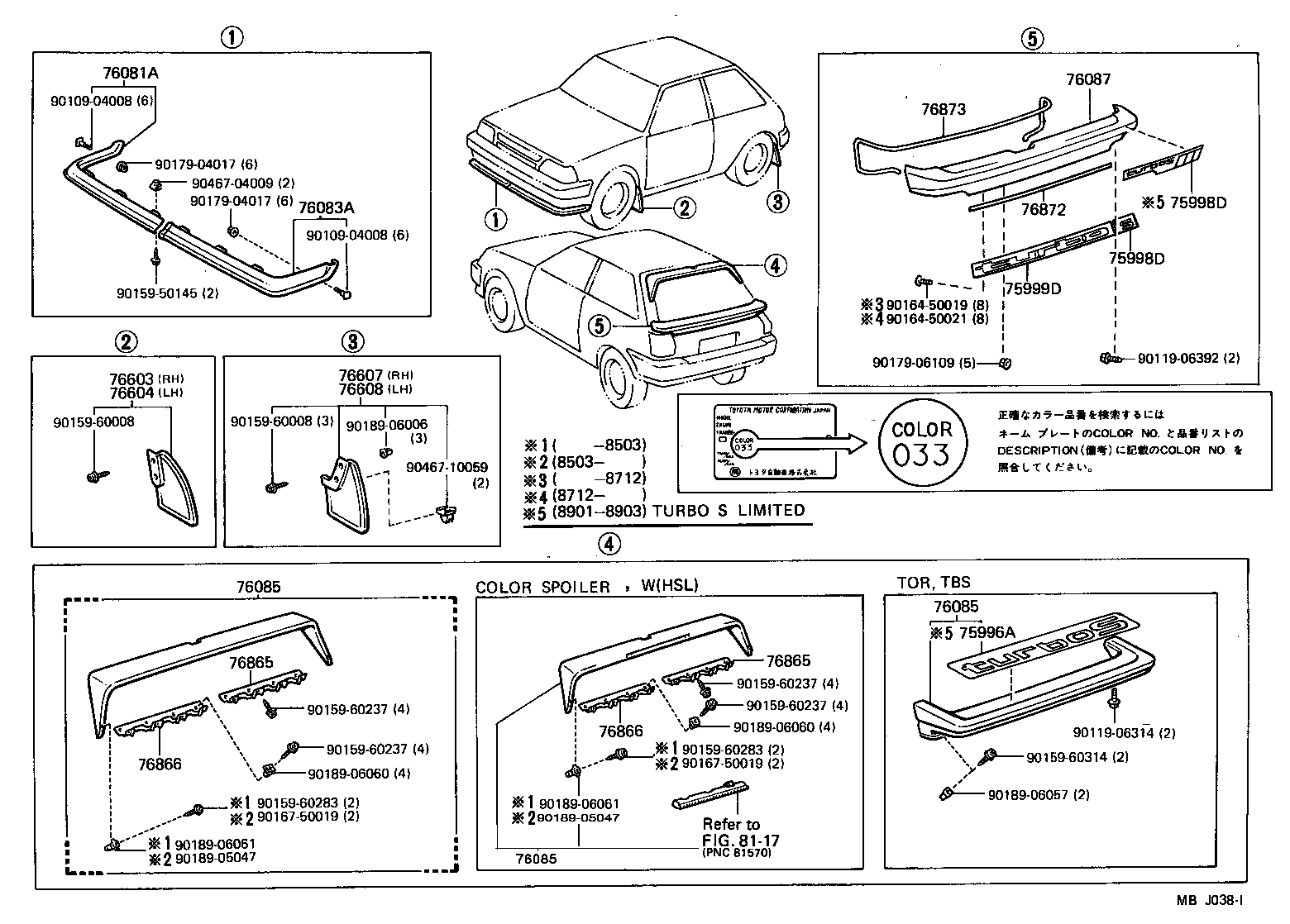

Click highlighted areas on diagram

diagram 75996A 75998D 75998D 75999D 76081A 76083A 76085 76085 76085 76087 76603 76604 76607 76608 76865 76865 76866 76866 76872 76873 8117 9010904008 9010904008 9011906314 9011906392 9015950145 9015960008 9015960008 9015960237 9015960237 9015960237 9015960237 9015960283 9015960283 9015960314 9016450019 9016450021 9016750019 9016750019 9017904017 9017904017 9017906109 9018905047 9018905047 9018906006 9018906057 9018906060 9018906060 9018906061 9018906061 9046704009 9046710059
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76603-19135

EP7#,NP7#..(CD,DX,RI,SE,SI,TOR,XL)..05S

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76604-19135

EP7#,NP7#..(CD,DX,RI,SE,SI,TOR,XL)..05S

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76607-19245

EP7#..(CD,DX,RI,SE,SI,XL)..05S

 1
76607-19455

EP7#,NP7#..(CD,DX,RI,SE,SI,XL)..05S

BLACK

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76608-19455

EP7#,NP7#..(CD,DX,RI,SE,SI,XL)..05S

BLACK

 1
76608-19245

EP7#..(CD,DX,RI,SE,SI,XL)..05S

 1
Common parts
90109-04008
90119-06314
90119-06392
90159-50145
90159-60008
90159-60237
90159-60283
90159-60314
90164-50019
90164-50021
90167-50019
90179-04017
90179-06109
90189-05047
90189-06006
90189-06057
90189-06060
90189-06061
90467-04009
90467-10059
Linked diagrams
8117
