EP71-PHKNS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

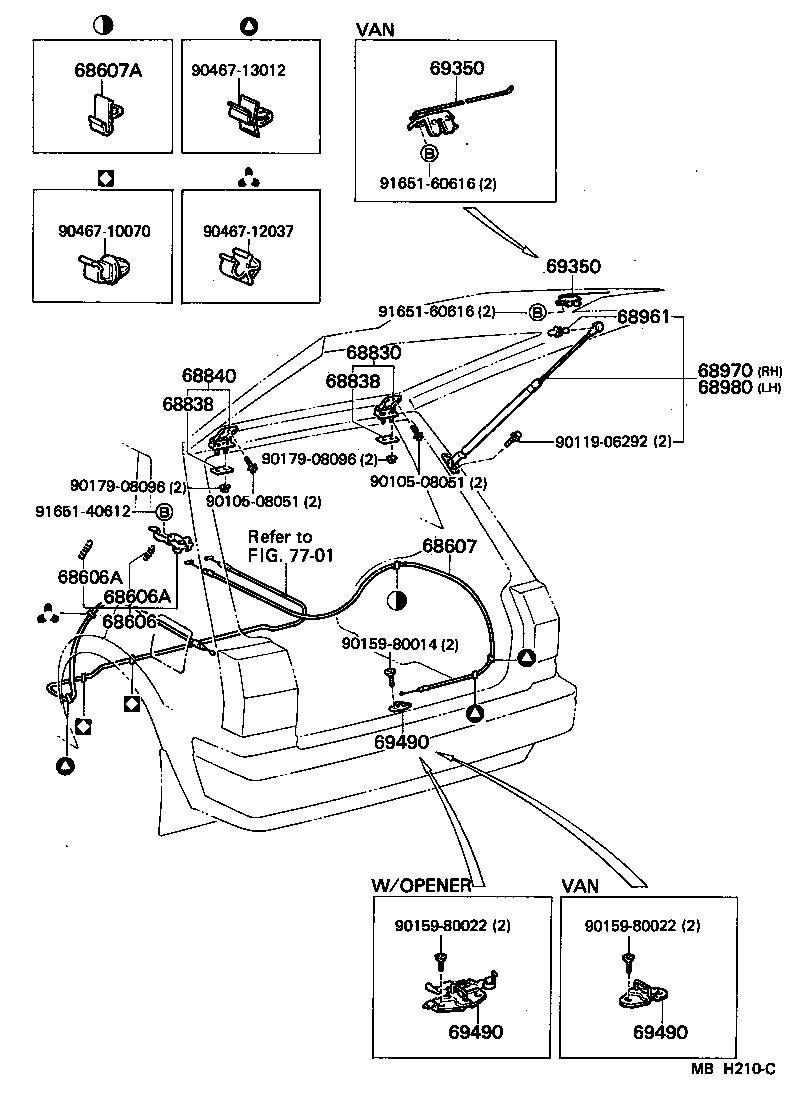

Click highlighted areas on diagram

diagram 68606 68606A 68606A 68607 68607A 68830 68838 68838 68840 68961 68970 68980 69350 69350 69490 69490 69490 7701 9010508051 9010508051 9011906292 9015980014 9015980022 9015980022 9017908096 9017908096 9046710070 9046712037 9046713012 9165140612 9165160616 9165160616
Part # Description Qty Price
68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN
64606-10060

EP71..SE,SI,XL

 1
64606-12060

EP71,NP70..SE,SI,TBS,XL

 1
68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
90506-09034

EP71..SE,SI,XL

 1
90506-09034

EP71,NP70..SE,SI,TBS,XL

 2
68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
90506-09034

EP71..SE,SI,XL

 1
90506-09034

EP71,NP70..SE,SI,TBS,XL

 2
68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
64607-10060

EP71,NP70..SE,SI,TBS,XL

 1
68607A - CLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)
69749-12010

EP71,NP70..SE,SI,TBS,XL

 1
69749-30020

EP71,NP70..SE,SI,TBS,XL

 1
68830 - HINGE ASSY, BACK DOOR, RH
68801-10020

EP7#,NP7#

 1
68801-10021

EP7#,NP7#

 1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-10011

EP7#,NP7#

 2
68838-10010

EP7#,NP7#

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-10011

EP7#,NP7#

 2
68838-10010

EP7#,NP7#

 2
68840 - HINGE ASSY, BACK DOOR, LH
68801-10020

EP7#,NP7#

 1
68801-10021

EP7#,NP7#

 1
68961 - BOLT, BACK DOOR STAY
68961-10030

EP7#,NP7#

 2
68970 - STAY ASSY, BACK DOOR, RH
68950-19515

EP7#,NP7#

 1
68950-19516

EP7#,NP7#

 1
68980 - STAY ASSY, BACK DOOR
68960-19246

EP7#,NP7#

 1
68960-19245

EP7#,NP7#

 1
69350 - LOCK ASSY, BACK DOOR
69350-10060

EP71,NP70

 1
69350 - LOCK ASSY, BACK DOOR
69350-10060

EP71,NP70

 1
69490 - STRIKER ASSY, BACK DOOR LOCK
69430-10050

EP71..SE,SI,XL

 1
69430-10051

EP71,NP70..SE,SI,TBS,XL

 1
69490 - STRIKER ASSY, BACK DOOR LOCK
69430-10050

EP71..SE,SI,XL

 1
69430-10051

EP71,NP70..SE,SI,TBS,XL

 1
69490 - STRIKER ASSY, BACK DOOR LOCK
69430-10050

EP71..SE,SI,XL

 1
69430-10051

EP71,NP70..SE,SI,TBS,XL

 1
Common parts
90105-08051
90119-06292
90159-80014
90159-80022
90179-08096
90467-10070
90467-12037
90467-13012
91651-40612
91651-60616
Linked diagrams
7701
