EP71-PHKNS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )CBR,DSL,EFI

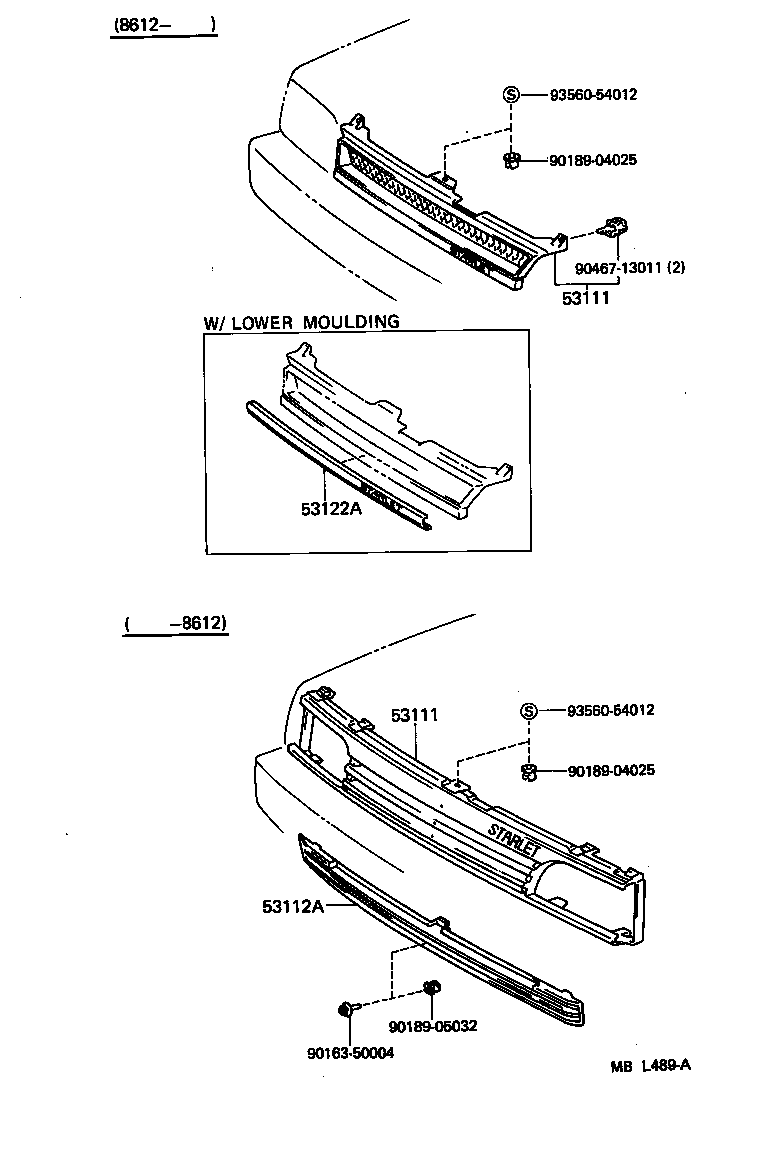

Click highlighted areas on diagram

diagram 53111 53111 53112A 53122A 9016350004 9018904025 9018904025 9018905032 9046713011 9356054012 9356054012
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-10250

EP71..RI,SE,SI

 1
53111-10240

EP71..DX,STD,XL

 1
53111-10250

EP71..XL

LISSE

 1
53111-10310

EP71,NP70..RI,SE,SI

 1
53111-10300

EP7#,NP7#..CD,CS,DX,STD,XL

 1
53111 - GRILLE, RADIATOR
53111-10250

EP71..RI,SE,SI

 1
53111-10240

EP71..DX,STD,XL

 1
53111-10250

EP71..XL

LISSE

 1
53111-10310

EP71,NP70..RI,SE,SI

 1
53111-10300

EP7#,NP7#..CD,CS,DX,STD,XL

 1
53112A - GRILLE, RADIATOR, LOWER
53112-10030

EP71..RI,SE,SI,XL

 1
53122A - MOULDING, RADIATOR GRILLE, LOWER
53122-10040

EP71,NP70..SE,SI

 1
Common parts
90163-50004
90189-04025
90189-05032
90467-13011
93560-54012
