EP71-PHKNS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410-8612) ; (8612- )3FC,4F,5F..CBR,EFI

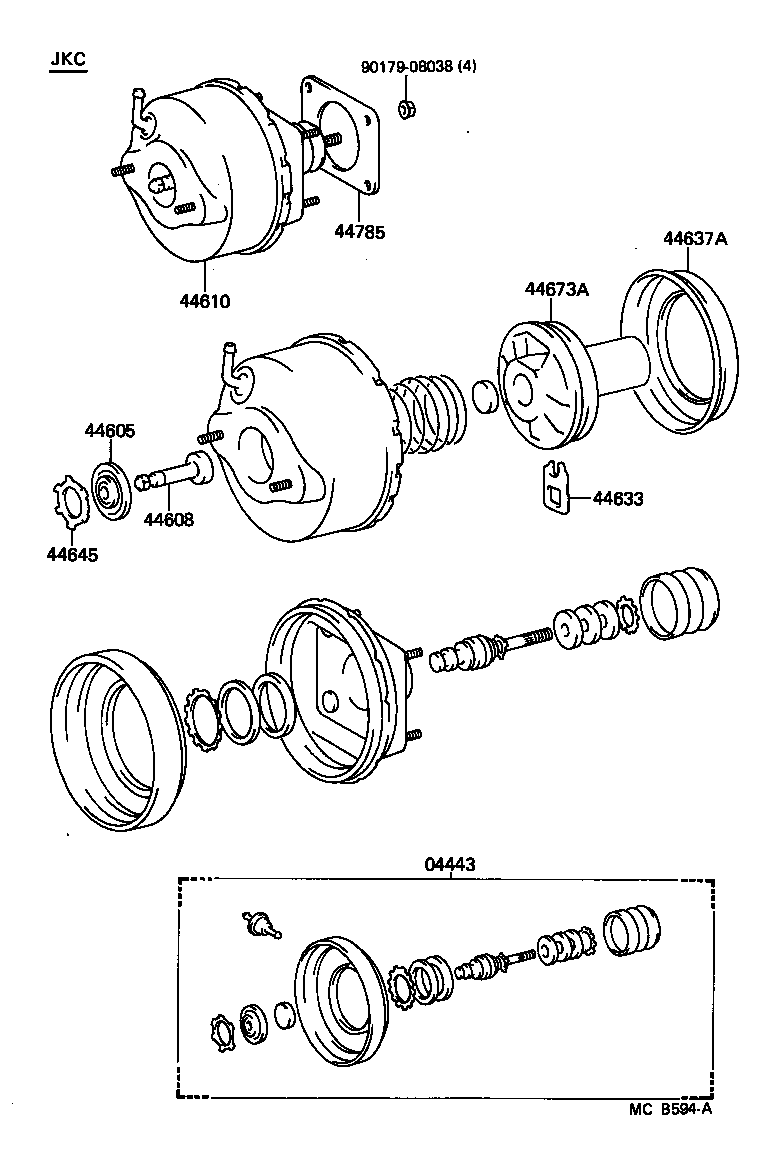

Click highlighted areas on diagram

5 OR 6 INCHES

diagram 04443 44605 44608 44610 44633 44637A 44645 44673A 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-10050

EP7#

5 INCHES

 1
04443-10080

EP71..RI,SE,SI,XL

6 INCHES

 1
04443-10130

EP71..SE,XL

6 INCHES

 1
04443-10130

EP71..RI,SE,SI,XL

6 INCHES

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-10080

EP7#,NP7#

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-32020

EP7#,NP7#

JKC

 1
44610 - BOOSTER ASSY, BRAKE
44610-10080

EP7#

5 INCHES

 1
44610-10130

EP71..SE,XL

6 INCHES

 1
44610-10090

EP71..RI,SE,SI,TBS,TOR,XL

6 INCHES

 1
44610-10130

EP71..RI,SE,SI,TBS,TOR,XL

6 INCHES

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-28130

EP7#..CBR

 1
44633-28130

EP7#

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-12470

EP71..RI,SE,SI,TBS,TOR,XL

6 INCHES

 1
44637-10080

EP7#

5 INCHES

 1
44637-12470

EP71..SE,XL

6 INCHES

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-10080

EP7#,NP7#

 1
44673A - BODY, BOOSTER VALVE
44673-10080

EP7#

5 INCHES

 1
44673-30480

EP71..RI,SE,SI,TBS,TOR,XL

6 INCHES

 1
44673-28180

EP71..SE,XL

6 INCHES

 1
44673-28180

EP71..RI,SE,SI,TBS,TOR,XL

6 INCHES

 1
44785 - GASKET, BRAKE BOOSTER
44785-14010

EP7#,NP7#

 2
Common parts
90179-08038

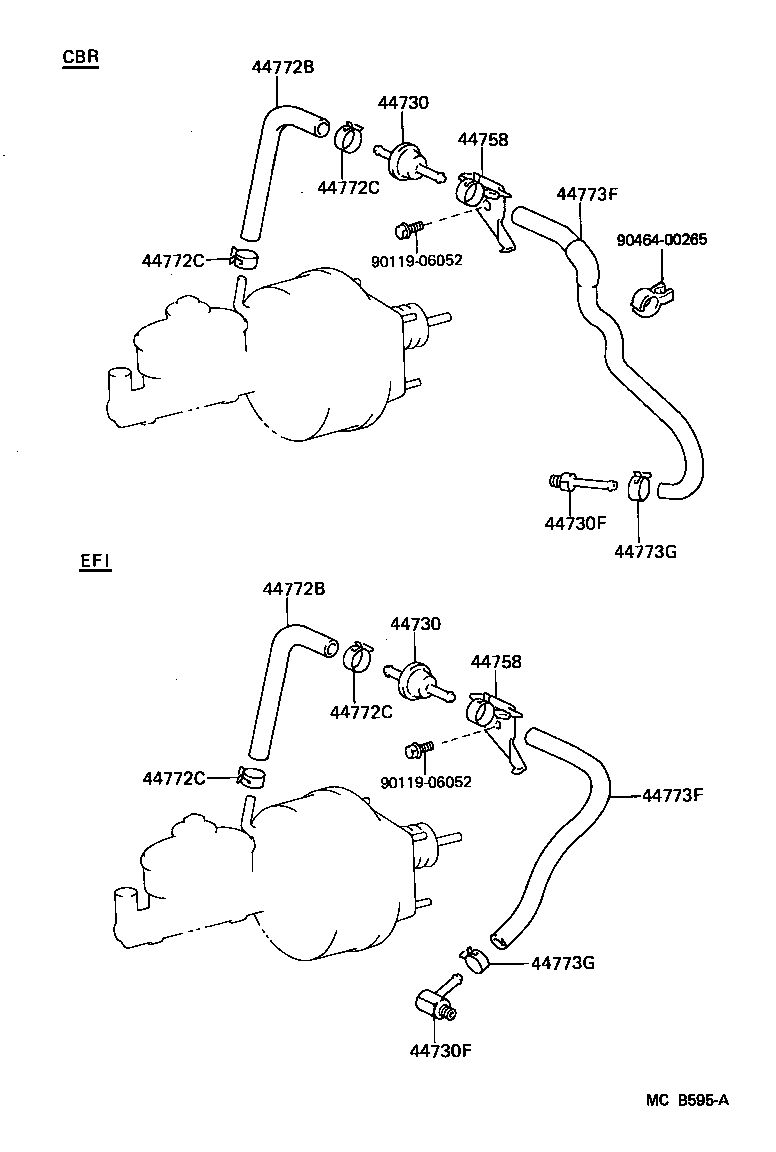

ILLUST NO. 2 OF 2(8410- )CBR,EFI

Click highlighted areas on diagram

diagram 44730 44730 44730F 44730F 44758 44758 44772B 44772B 44772C 44772C 44772C 44772C 44773F 44773F 44773G 44773G 9011906052 9011906052 9046400265
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

EP7#..CBR,EFI

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

EP7#..CBR,EFI

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51034

EP7#..CBR

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51034

EP7#..CBR

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-10060

EP7#..CBR,EFI

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-10060

EP7#..CBR,EFI

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-10090

EP7#..CBR

 1
44772-10090

EP7#..CBR,EFI

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-10090

EP7#..CBR

 1
44772-10090

EP7#..CBR,EFI

 1
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

EP7#,NP7#

 2
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

EP7#,NP7#

 2
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

EP7#,NP7#

 2
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

EP7#,NP7#

 2
44773F - HOSE, UNION TO CHECK VALVE
44773-10130

EP7#..CBR

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-10130

EP7#..CBR

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16002

EP7#

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16002

EP7#

 1
Common parts
90119-06052
90464-00265
