EP71-PHKNS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )2EELU,2EL#

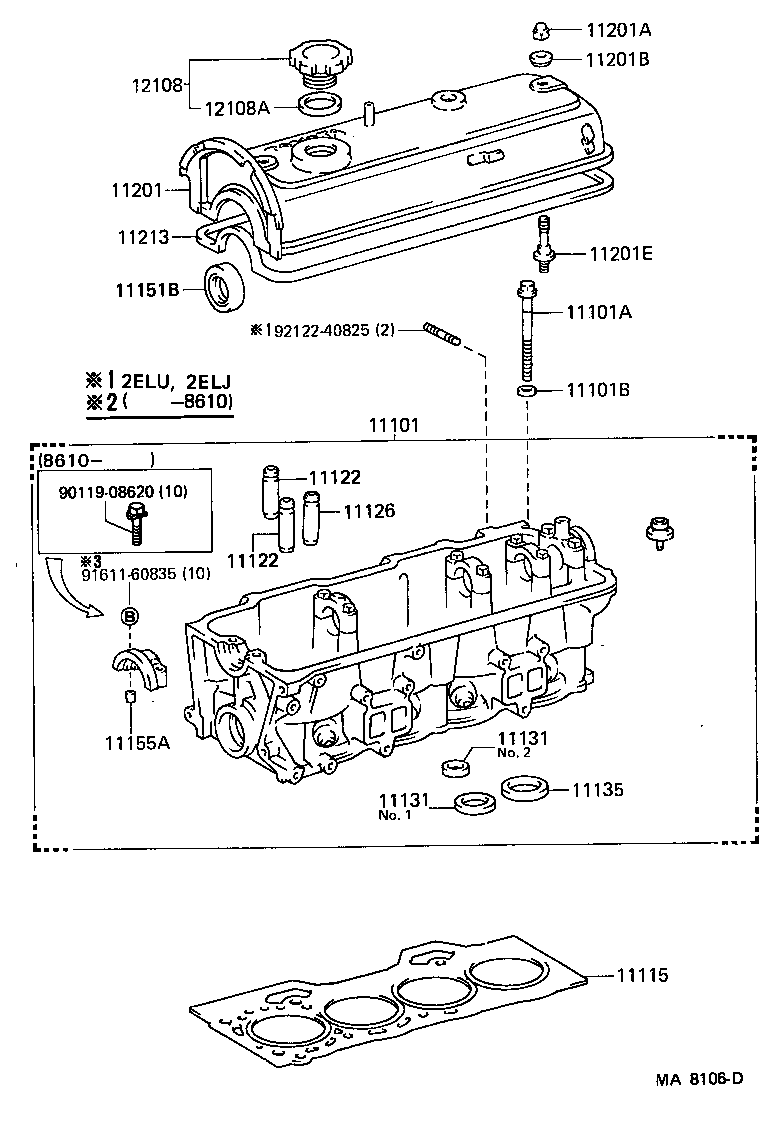

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11115 11122 11122 11126 11131 11131 11135 11151B 11155A 11201 11201A 11201B 11201E 11213 12108 12108A 9011908620 9161160835 9212240825
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-19155

2EL#..EP7#

 1
11101-19156

2EL#..EP7#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90105-09002

2E#..EP7#

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-09015

2E#..EP7#

 10
11115 - GASKET, CYLINDER HEAD
11115-11060

2EELU,2EL#..EP7#

 1
11115-11010

2EELU,2EL#..EP7#

厚さ=1.25

 1
11115-11010

2EELU,2EL#..EP7#

厚さ=1.25

 1
11122 - BUSH, INTAKE VALVE GUIDE
11123-10040

2E#..EP7#

O/S 0.05,O/S 0.05

 8
11122-10040

2E#..EP7#

STD,STD

 8
11122 - BUSH, INTAKE VALVE GUIDE
11123-10040

2E#..EP7#

O/S 0.05,O/S 0.05

 8
11122-10040

2E#..EP7#

STD,STD

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11122-10040

2E#..EP7#

STD,STD

 4
11123-10040

2E#..EP7#

O/S 0.05,O/S 0.05

 4
11131 - SEAT, INTAKE VALVE
11132-10020

2E#..EP7#

O/S 0.03,O/S 0.03,NO.1

 4
11137-10010

2EELU,2EL#..EP7#

STD,STD,NO.2

 4
11131-10020

2E#..EP7#

STD,STD,NO.1

 4
11138-10010

2EELU,2EL#..EP7#

O/S 0.03,O/S 0.03,NO.2

 4
11131 - SEAT, INTAKE VALVE
11132-10020

2E#..EP7#

O/S 0.03,O/S 0.03,NO.1

 4
11137-10010

2EELU,2EL#..EP7#

STD,STD,NO.2

 4
11131-10020

2E#..EP7#

STD,STD,NO.1

 4
11138-10010

2EELU,2EL#..EP7#

O/S 0.03,O/S 0.03,NO.2

 4
11135 - SEAT, EXHAUST VALVE
11135-10020

2EELU,2EL#..EP7#

STD,STD

 4
11136-10020

2EELU,2EL#..EP7#

O/S 0.03,O/S 0.03

 4
11151B - SEAL, OIL(FOR CAMSHAFT SETTING)
90311-35017

2E#..EP7#

 1
11155A - PIN, RING W/HEAD
90253-11021

2E#..EP7#

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-10010

2EELU,2EL#..EP7#

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08007

2EELU,2EL#..EP7#

 2
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-09001

2EELU,2EL#..EP7#

 2
11201E - BOLT, STUD(FOR CYLINDER HEAD COVER SET)
90116-08190

2EELU,2EL#..EP7#

 2
11213 - GASKET, CYLINDER HEAD COVER
11213-10010

2EELU,2EL#..EP7#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-11020

2EELU,2EL#..EP7#

 1
12180-10020

2EELU,2EL#..EP7#

 1
12180-61010

2EELU,2EL#..EP7#

 1
12180-71011

2EELU,2EL#..EP7#

 1
12108A - GASKET(FOR OIL FILLER CAP)
12195-71010

2EELU,2EL#..EP7#

 1
12195-71020

2EELU,2EL#..EP7#

 1
Common parts
90119-08620
91611-60835
92122-40825
