EP71-PHKDS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

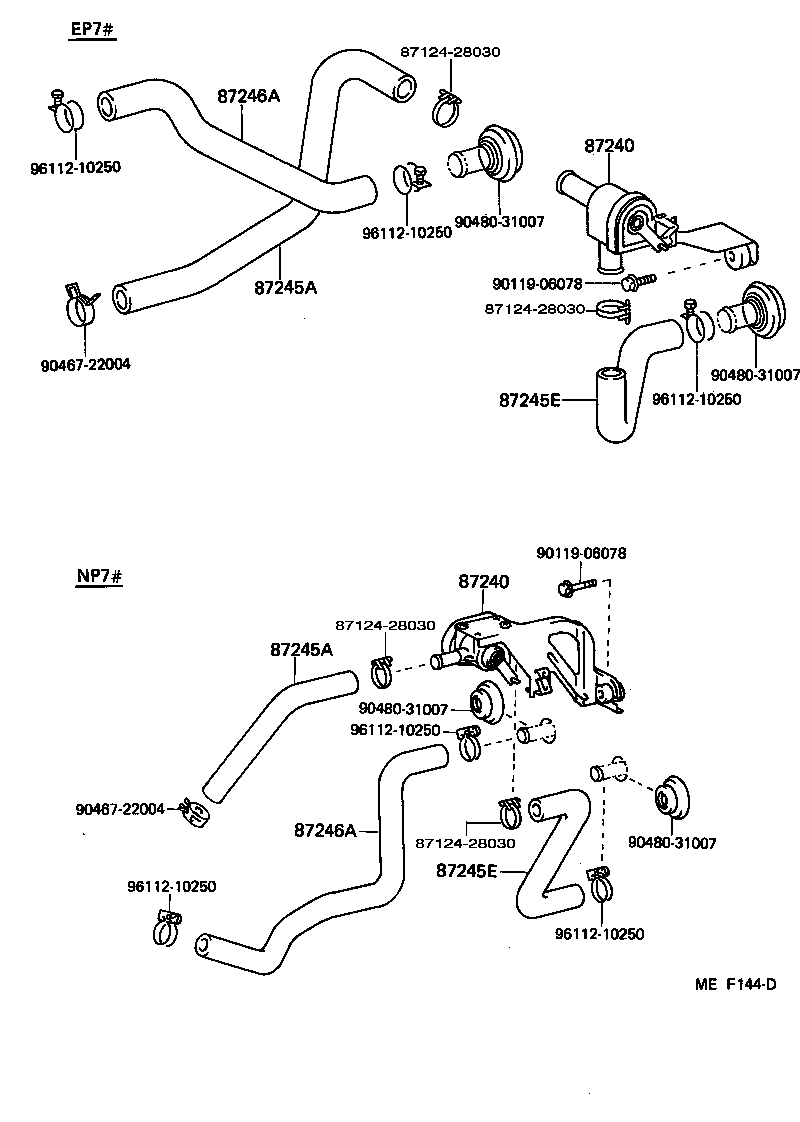

Click highlighted areas on diagram

diagram 8712428030 8712428030 8712428030 8712428030 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 9011906078 9011906078 9046722004 9046722004 9048031007 9048031007 9048031007 9048031007 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-10110

EP7#..CBR,EFI

 1
87240 - VALVE ASSY, HEATER WATER
87240-10110

EP7#..CBR,EFI

 1
87245A - HOSE, HEATER WATER, INLET A
87245-10290

EP7#..CBR,EFI

 1
87245A - HOSE, HEATER WATER, INLET A
87245-10290

EP7#..CBR,EFI

 1
87245E - HOSE, HEATER WATER, INLET E
87245-10300

EP7#..CBR,EFI

 1
87245E - HOSE, HEATER WATER, INLET E
87245-10300

EP7#..CBR,EFI

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-10270

EP7#..CBR

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-10270

EP7#..CBR

 1
Common parts
87124-28030
90119-06078
90467-22004
90480-31007
96112-10250
