EP71-PHKDS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(8410- )

Click highlighted areas on diagram

diagram 55906A 55907A 55908A 55909A 55910 55917A 5593310010 55937 55941A 8302 8401 8401 87284 9016750013 9048013015 9356614512
Part # Description Qty Price
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-10150

EP7#,NP7#

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-10080

EP7#,NP7#

 1
55907-10100

EP71,NP70..SE,SI

W/*AAC

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-10070

EP7#,NP7#

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-10060

EP7#,NP7#

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-10250

EP7#,NP7#

 1
55917A - LEVER, TEMPERATURE DAMPER CONTROL
55917-10050

EP71,NP70..SE,SI,TBS

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-10110

EP7#..CBR

 4
55941A - GUIDE, HEATER CONTROL
55941-10010

EP7#,NP7#

 1
87284 - RESISTOR SUB-ASSY, VARIABLE
88032-10030

EP71,NP70..SE,SI,TBS

 1
Common parts
55933-10010
90167-50013
90480-13015
93566-14512
Linked diagrams
8302
8401

ILLUST NO. 2 OF 3(8410- )

Click highlighted areas on diagram

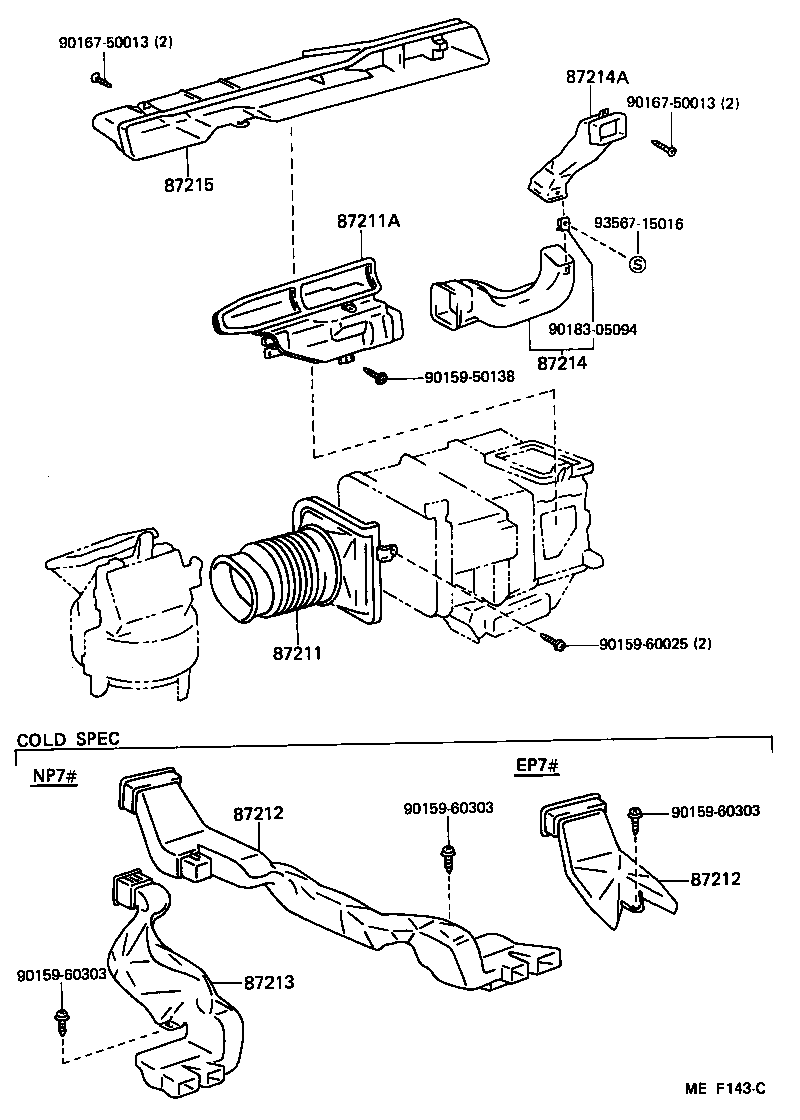

diagram 87211 87211A 87212 87212 87213 87214 87214A 87215 9015950138 9015960025 9015960303 9015960303 9015960303 9016750013 9016750013 9018305094 9356715016
Part # Description Qty Price
87211 - DUCT, AIR, NO.1
87201-10050

EP7#,NP7#

 1
87211A - DUCT, AIR, NO.2
87201-10070

EP7#

 1
87201-10071

EP7#,NP7#

 1
87212 - DUCT, AIR, REAR NO.1
87202-10050

EP71..RI,SE,SI,TBS,TOR,XL

 1
87202-10050

EP71..DX,SE,SI,TBS,TOR,XL

 1
87212 - DUCT, AIR, REAR NO.1
87202-10050

EP71..RI,SE,SI,TBS,TOR,XL

 1
87202-10050

EP71..DX,SE,SI,TBS,TOR,XL

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55085-10020

EP7#

 1
55085-10040

EP7#,NP7#

 1
55085-10021

EP7#

 1
87214A - DUCT, AIR, SIDE NO.2 RH
55843-10050

EP7#,NP7#

 1
55843-10030

EP7#

 1
55843-10031

EP7#

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55086-10051

EP7#,NP7#

 1
55086-10050

EP7#

 1
Common parts
90159-50138
90159-60025
90159-60303
90167-50013
90183-05094
93567-15016

ILLUST NO. 3 OF 3(8410- )

Click highlighted areas on diagram

diagram 88625C 88625C 88625C 88626B 9009904352 9411040800
Part # Description Qty Price
88625C - THERMISTOR, COOLER
88625-10040

EP71..SE

W/*AAC,NO.3

 1
88625-10041

EP71,NP70

W/*AAC,NO.3

 1
88625-10060

EP71..SE

W/*AAC,NO.2

 1
88625-10061

EP71,NP70..SE

W/*AAC,NO.2

 1
88625-10080

EP71,NP70..SE,SI,TBS

W/*AAC,NO.1

 1
88625C - THERMISTOR, COOLER
88625-10040

EP71..SE

W/*AAC,NO.3

 1
88625-10041

EP71,NP70

W/*AAC,NO.3

 1
88625-10060

EP71..SE

W/*AAC,NO.2

 1
88625-10061

EP71,NP70..SE

W/*AAC,NO.2

 1
88625-10080

EP71,NP70..SE,SI,TBS

W/*AAC,NO.1

 1
88625C - THERMISTOR, COOLER
88625-10040

EP71..SE

W/*AAC,NO.3

 1
88625-10041

EP71,NP70

W/*AAC,NO.3

 1
88625-10060

EP71..SE

W/*AAC,NO.2

 1
88625-10061

EP71,NP70..SE

W/*AAC,NO.2

 1
88625-10080

EP71,NP70..SE,SI,TBS

W/*AAC,NO.1

 1
88626B - HOLDER, THERMISTOR
88626-17010

EP71,NP70..SE,SI,TBS

W/*AAC

 1
Common parts
90099-04352
94110-40800
