EP71-PHKDS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

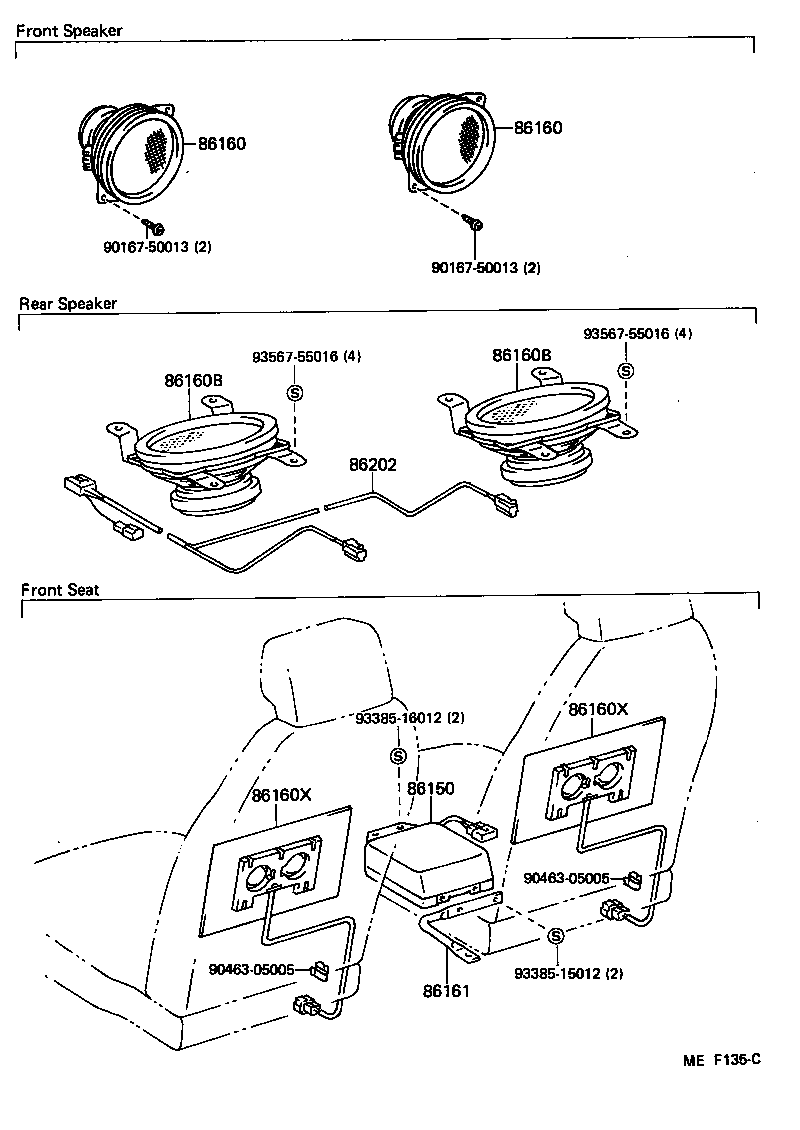

Click highlighted areas on diagram

diagram 86150 86160 86160 86160B 86160B 86160X 86160X 86161 86202 9016750013 9016750013 9046305005 9046305005 9338515012 9338516012 9356755016 9356755016
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-10170

EP7#,NP7#..CS,DX,RI,SE,SI,STD,TBS,TOR,XL

2 OR 4-SPEAKER

 2
86160-10160

EP7#,NP7#..CD,CS,DX,STD

1-SPEAKER

 1
86160-10160

EP7#

1-SPEAKER

 1
86160-10170

EP7#

2 OR 4-SPEAKER

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-10170

EP7#,NP7#..CS,DX,RI,SE,SI,STD,TBS,TOR,XL

2 OR 4-SPEAKER

 2
86160-10160

EP7#,NP7#..CD,CS,DX,STD

1-SPEAKER

 1
86160-10160

EP7#

1-SPEAKER

 1
86160-10170

EP7#

2 OR 4-SPEAKER

 2
86160B - SPEAKER ASSY, REAR
86150-10100

EP71,NP70..DX,RI,SE,SI,TBS,TOR,XL

RH

 1
86160-10230

EP71,NP70..DX,RI,SE,SI,TBS,TOR,XL

LH

 1
86160B - SPEAKER ASSY, REAR
86150-10100

EP71,NP70..DX,RI,SE,SI,TBS,TOR,XL

RH

 1
86160-10230

EP71,NP70..DX,RI,SE,SI,TBS,TOR,XL

LH

 1
86202 - WIRE, SPEAKER, NO.1
86205-10030

EP71..DX,RI,SE,SI,TBS,TOR,XL

 1
Common parts
90167-50013
90463-05005
93385-15012
93385-16012
93567-55016
