EP71-PHKDS (1984)
Toyota Starlet

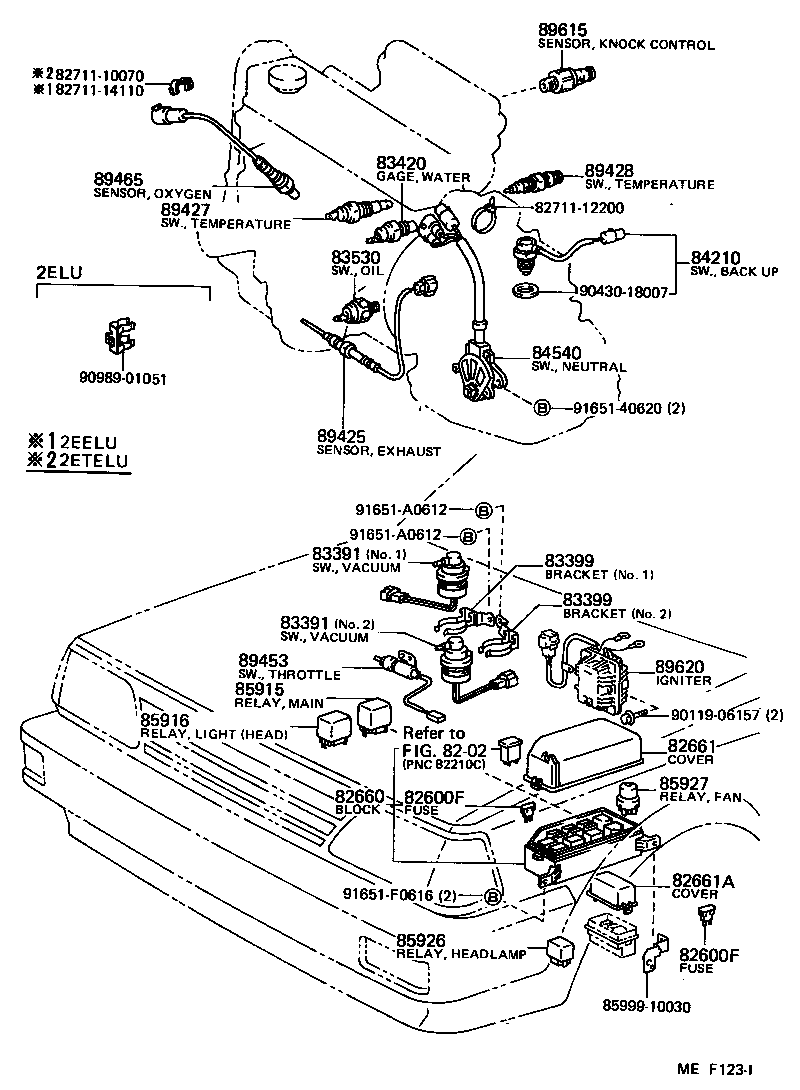

ILLUST NO. 1 OF 5(8410- )EP7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
EP7# 30A,緑,30A |
1 | ||
| 90982-09004 |
EP7# 20A,黄,20A |
1 | ||
| 90982-09003 |
EP7# 15A,15A |
1 | ||
| 90982-09005 |
EP7# 7.5A,7.5A |
1 | ||
| 90982-09002 |
EP7# 10A,10A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
EP7# 30A,緑,30A |
1 | ||
| 90982-09004 |
EP7# 20A,黄,20A |
1 | ||
| 90982-09003 |
EP7# 15A,15A |
1 | ||
| 90982-09005 |
EP7# 7.5A,7.5A |
1 | ||
| 90982-09002 |
EP7# 10A,10A |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-10021 |
EP7#..CBR |
1 | ||
| 82660-10020 |
EP7#..CBR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-10010 |
EP7#..CBR,EFI |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-10040 |
EP71..MTM..CBR NO.1,MARK=120M |
1 | ||
| 83391-10070 |
EP71..MTM..CBR NO.1,MARK=120M |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-10040 |
EP71..MTM..CBR NO.1,MARK=120M |
1 | ||
| 83391-10070 |
EP71..MTM..CBR NO.1,MARK=120M |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-10020 |
EP71..CBR NO.1 |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-10020 |
EP71..CBR NO.1 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
EP7#,NP7# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-12040 |
EP7# |
1 | ||
| 83530-30080 |
EP7#..CBR,EFI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
EP7#,NP7#..MTM |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02006 |
EP7#,NP7# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
EP7#,NP7# TAIL |
1 | ||
| 90987-02006 |
EP7#,NP7# HEAD |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
EP7#,NP7# |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-12140 |
EP71 |
1 | ||
| 89425-12190 |
EP71..CBR,EFI |
1 | ||
| 89425-12250 |
EP71..CBR,EFI |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-10100 |
EP7# |
1 | ||
| 89453 - SWITCH, THROTTLE POSITION (FOR T.C.S.) | ||||
| 89453-16010 |
EP71..CBR |
1 | ||
| 89453-14010 |
EP71..CBR |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-10010 |
EP71 |
1 | ||
| Common parts | ||||
| 82711-10070 | ||||
| 82711-12200 | ||||
| 82711-14110 | ||||
| 85999-10030 | ||||
| 90119-06157 | ||||
| 90430-18007 | ||||
| 90989-01051 | ||||
| 91651-40620 | ||||
| 91651-A0612 | ||||
| 91651-F0616 | ||||
| Linked diagrams | ||||
| 8202 | ||||

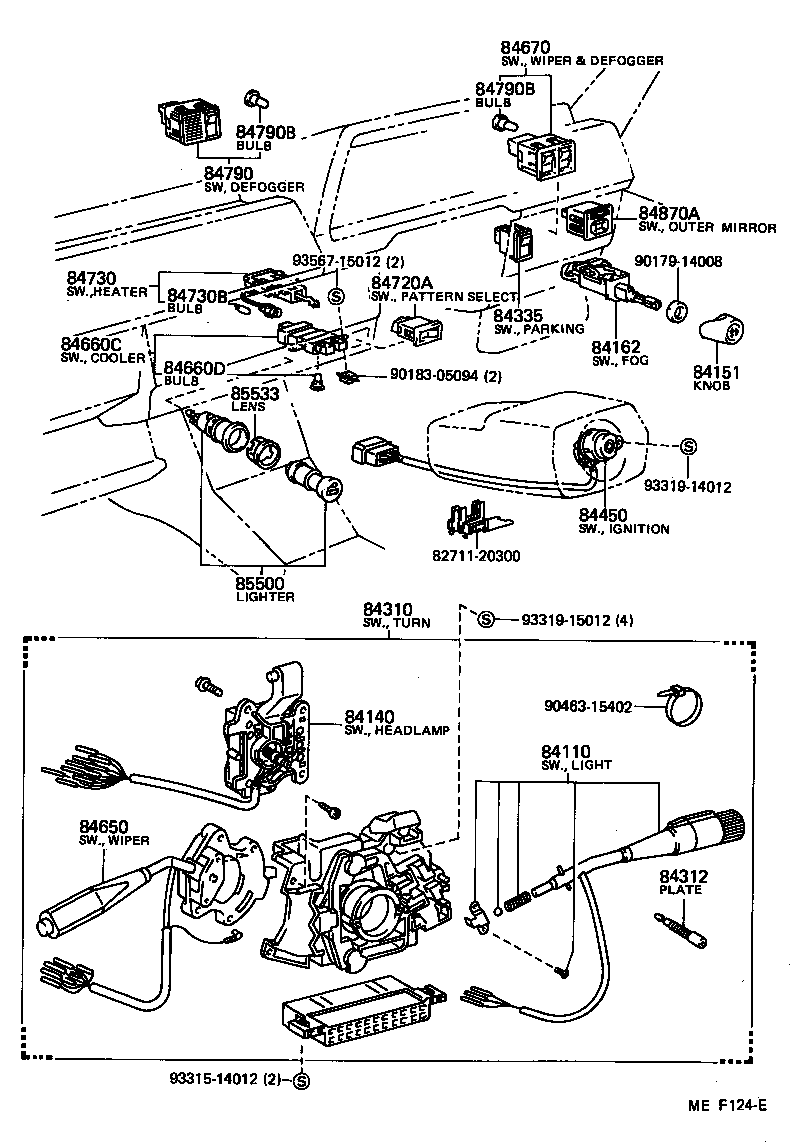

ILLUST NO. 3 OF 5(8410-8612)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19845 |
EP7#,NP7# MATSUSHITA |
1 | ||
| 84112-19685 |
EP7# |
1 | ||
| 84112-19855 |
EP7#,NP7# TOKAIRIKA |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-19355 |
EP7# TOKAIRIKA |
1 | ||
| 84140-10150 |
EP7#,NP7# TOKAIRIKA |
1 | ||
| 84140-19375 |
EP7#,NP7# MATSUSHITA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-10530 |
EP7#..CD,DX,RI,SE,SI,TBS,TOR,XL W/*IW |
1 | ||
| 84310-10620 |
EP71,NP70..SE,SI,TBS,TOR,XL W/*IW |
1 | ||
| 84310-10520 |
EP7#..CD,CS,DX,RI,STD |
1 | ||
| 84310-10600 |
EP7#,NP7#..CD,CS,DX,RI,STD |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32020 |
EP7#,NP7# MATSUSHITA |
1 | ||
| 84312-32010 |
EP7#,NP7# TOKAIRIKA |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-95400 |
EP7# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-16020 |
EP7#,NP7# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-10430 |
EP7#,NP7#..CD,CS,DX,RI,STD MATSUSHITA |
1 | ||
| 84652-80055 |
EP7#..CD,CS,DX,RI,STD TOKAIRIKA |
1 | ||
| 84652-10460 |
EP71,NP70..SE,SI,TBS,TOR,XL W/*IW,TOKAIRIKA |
1 | ||
| 84652-10450 |
EP71,NP70..SE,SI,TBS,TOR,XL W/*IW,MATSUSHITA |
1 | ||
| 84652-80059 |
EP7#..CD,CS,DX,RI,STD MATSUSHITA |
1 | ||
| 84652-80056 |
EP7#..CD,DX,RI,SE,SI,TBS,TOR,XL W/*IW |
1 | ||
| 84652-10440 |
EP7#,NP7#..CD,CS,DX,RI,STD TOKAIRIKA |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-10040 |
EP7#,NP7# 2-BUTTON(A/C & ECONOMY) |
1 | ||
| 84660-10070 |
EP7#,NP7# 1-BUTTON(A/C) |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-12010 |
EP7#,NP7# COOLER SW = A/C & ECONOMY |
2 | ||
| 88607-14020 |
EP7# 14V 1.4W,COOLER SW=A/C |
1 | ||
| 84670 - SWITCH ASSY, REAR WIPER & DEFOGGER | ||||
| 84670-10010 |
EP7#..CD,DX,RI,SE,SI,TBS,TOR,XL |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-10080 |
EP7#,NP7#..CBR,DSL |
1 | ||
| 84732-10090 |
EP71,NP70..SE W/*AAC |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
EP7#,NP7# 14V 1.4W,14V 1.4W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-10090 |
EP7#,NP7#..CBR,DSL,EFI |
1 | ||
| 84790-10080 |
EP7#..CD,CS,DX,RI,STD,TOR,XL |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10170 |
EP7# 12V 1.12W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10170 |
EP7# 12V 1.12W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-22040 |
EP71..RI,SE,SI,XL |
1 | ||
| 84870-22040 |
EP71..SE,SI,TBS,XL |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-10090 |
EP7# |
1 | ||
| 85500-10090 |
EP7#,NP7#..CD,CS,DX,RI,SE,SI,TBS,TOR,XL |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-10010 |
EP7#,NP7#..CD,CS,DX,RI,SE,SI,TBS,TOR,XL |
1 | ||
| 85533-10010 |
EP7# |
1 | ||
| Common parts | ||||
| 82711-20300 | ||||
| 90179-14008 | ||||
| 90183-05094 | ||||
| 90463-15402 | ||||
| 93315-14012 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93567-15012 | ||||

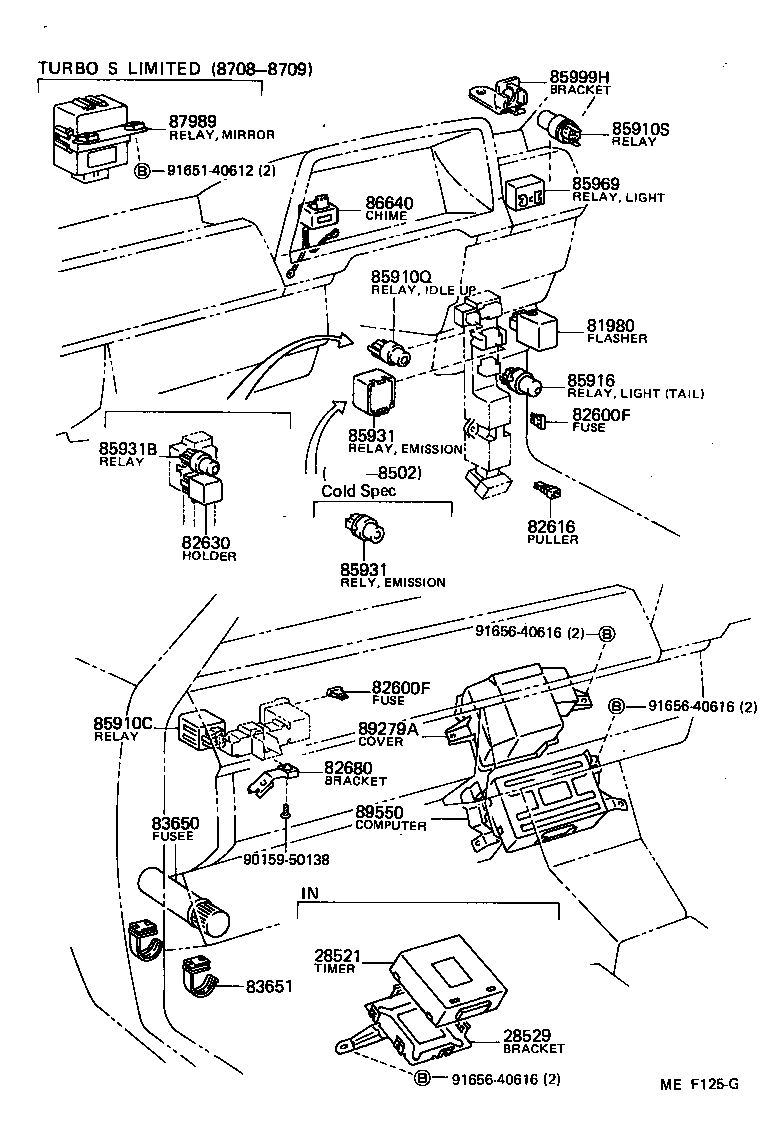

ILLUST NO. 4 OF 5(8410- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
EP7#,NP7# |
1 | ||
| 81980-22070 |
EP7# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
EP7# 30A,緑,30A |
1 | ||
| 90982-09004 |
EP7# 20A,黄,20A |
1 | ||
| 90982-09003 |
EP7# 15A,15A |
1 | ||
| 90982-09005 |
EP7# 7.5A,7.5A |
1 | ||
| 90982-09002 |
EP7# 10A,10A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
EP7# 30A,緑,30A |
1 | ||
| 90982-09004 |
EP7# 20A,黄,20A |
1 | ||
| 90982-09003 |
EP7# 15A,15A |
1 | ||
| 90982-09005 |
EP7# 7.5A,7.5A |
1 | ||
| 90982-09002 |
EP7# 10A,10A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
EP7#,NP7# |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82630-10010 |
EP71,NP70..SE,SI,TBS,XL W/*PW |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
EP7#,NP7# |
1 | ||
| 83651 - CLAMP, FUSEE | ||||
| 90468-25066 |
EP7#,NP7# W/UNDER TRAY |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
EP7#,NP7# TAIL |
1 | ||
| 90987-02006 |
EP7#,NP7# HEAD |
1 | ||
| 85931 - RELAY, EMISSION CONTROL | ||||
| 89550-10110 |
EP71 |
1 | ||
| 90987-03001 |
EP71..5D..DX;EP71..3D..3FC..DX;EP71..RI,SE,SI,STD,XL COLD SPEC |
1 | ||
| 85931 - RELAY, EMISSION CONTROL | ||||
| 89550-10110 |
EP71 |
1 | ||
| 90987-03001 |
EP71..5D..DX;EP71..3D..3FC..DX;EP71..RI,SE,SI,STD,XL COLD SPEC |
1 | ||
| 85969 - RELAY, LIGHT REMINDER | ||||
| 85969-22012 |
EP71,NP70..SE |
1 | ||
| 85969-17010 |
EP71,NP70..SE |
1 | ||
| 86640 - CHIME ASSY | ||||
| 86640-17020 |
EP7# |
1 | ||
| 86640-10050 |
EP7#,NP7# |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-10090 |
EP71..MTM..CBR |
1 | ||
| 89550-10150 |
EP71..MTM..CBR |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||

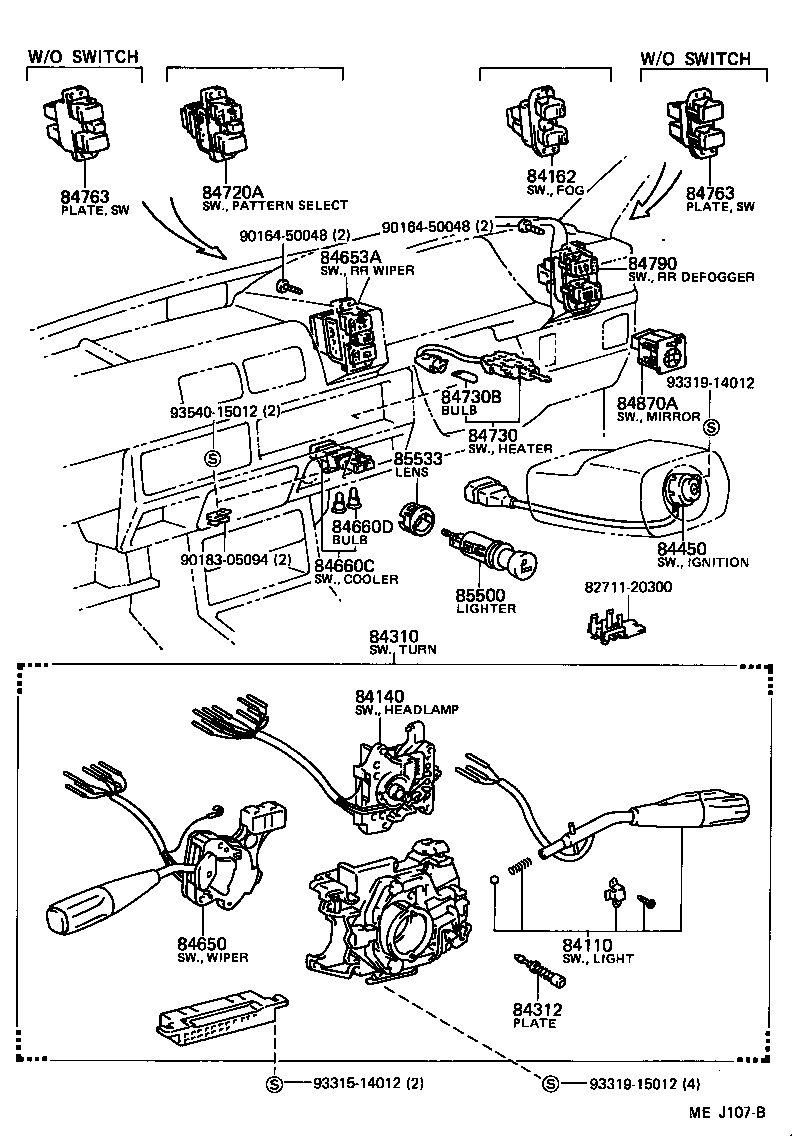

ILLUST NO. 3 OF 5(8612- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19845 |
EP7#,NP7# MATSUSHITA |
1 | ||
| 84112-19685 |
EP7# |
1 | ||
| 84112-19855 |
EP7#,NP7# TOKAIRIKA |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-19355 |
EP7# TOKAIRIKA |
1 | ||
| 84140-10150 |
EP7#,NP7# TOKAIRIKA |
1 | ||
| 84140-19375 |
EP7#,NP7# MATSUSHITA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-10530 |
EP7#..CD,DX,RI,SE,SI,TBS,TOR,XL W/*IW |
1 | ||
| 84310-10620 |
EP71,NP70..SE,SI,TBS,TOR,XL W/*IW |
1 | ||
| 84310-10520 |
EP7#..CD,CS,DX,RI,STD |
1 | ||
| 84310-10600 |
EP7#,NP7#..CD,CS,DX,RI,STD |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32020 |
EP7#,NP7# MATSUSHITA |
1 | ||
| 84312-32010 |
EP7#,NP7# TOKAIRIKA |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-16020 |
EP7#,NP7# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-10430 |
EP7#,NP7#..CD,CS,DX,RI,STD MATSUSHITA |
1 | ||
| 84652-80055 |
EP7#..CD,CS,DX,RI,STD TOKAIRIKA |
1 | ||
| 84652-10460 |
EP71,NP70..SE,SI,TBS,TOR,XL W/*IW,TOKAIRIKA |
1 | ||
| 84652-10450 |
EP71,NP70..SE,SI,TBS,TOR,XL W/*IW,MATSUSHITA |
1 | ||
| 84652-80059 |
EP7#..CD,CS,DX,RI,STD MATSUSHITA |
1 | ||
| 84652-80056 |
EP7#..CD,DX,RI,SE,SI,TBS,TOR,XL W/*IW |
1 | ||
| 84652-10440 |
EP7#,NP7#..CD,CS,DX,RI,STD TOKAIRIKA |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-10040 |
EP7#,NP7#..CD,DX,RI,SE,SI,XL |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-10040 |
EP7#,NP7# 2-BUTTON(A/C & ECONOMY) |
1 | ||
| 84660-10070 |
EP7#,NP7# 1-BUTTON(A/C) |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-12010 |
EP7#,NP7# COOLER SW = A/C & ECONOMY |
2 | ||
| 88607-14020 |
EP7# 14V 1.4W,COOLER SW=A/C |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-10080 |
EP7#,NP7#..CBR,DSL |
1 | ||
| 84732-10090 |
EP71,NP70..SE W/*AAC |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
EP7#,NP7# 14V 1.4W,14V 1.4W |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-10050 |
EP7#,NP7#..CD,CS,DX,RI,STD,XL LH |
1 | ||
| 84763-10040 |
EP7#,NP7#..CD,CS,DX,RI,STD RH |
1 | ||
| 84763 - PLATE, SWITCH | ||||
| 84763-10050 |
EP7#,NP7#..CD,CS,DX,RI,STD,XL LH |
1 | ||
| 84763-10040 |
EP7#,NP7#..CD,CS,DX,RI,STD RH |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-10090 |
EP7#,NP7#..CBR,DSL,EFI |
1 | ||
| 84790-10080 |
EP7#..CD,CS,DX,RI,STD,TOR,XL |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-22040 |
EP71..RI,SE,SI,XL |
1 | ||
| 84870-22040 |
EP71..SE,SI,TBS,XL |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-10090 |
EP7# |
1 | ||
| 85500-10090 |
EP7#,NP7#..CD,CS,DX,RI,SE,SI,TBS,TOR,XL |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-10010 |
EP7#,NP7#..CD,CS,DX,RI,SE,SI,TBS,TOR,XL |
1 | ||
| 85533-10010 |
EP7# |
1 | ||
| Common parts | ||||
| 82711-20300 | ||||
| 90164-50048 | ||||
| 90183-05094 | ||||
| 93315-14012 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93540-15012 | ||||

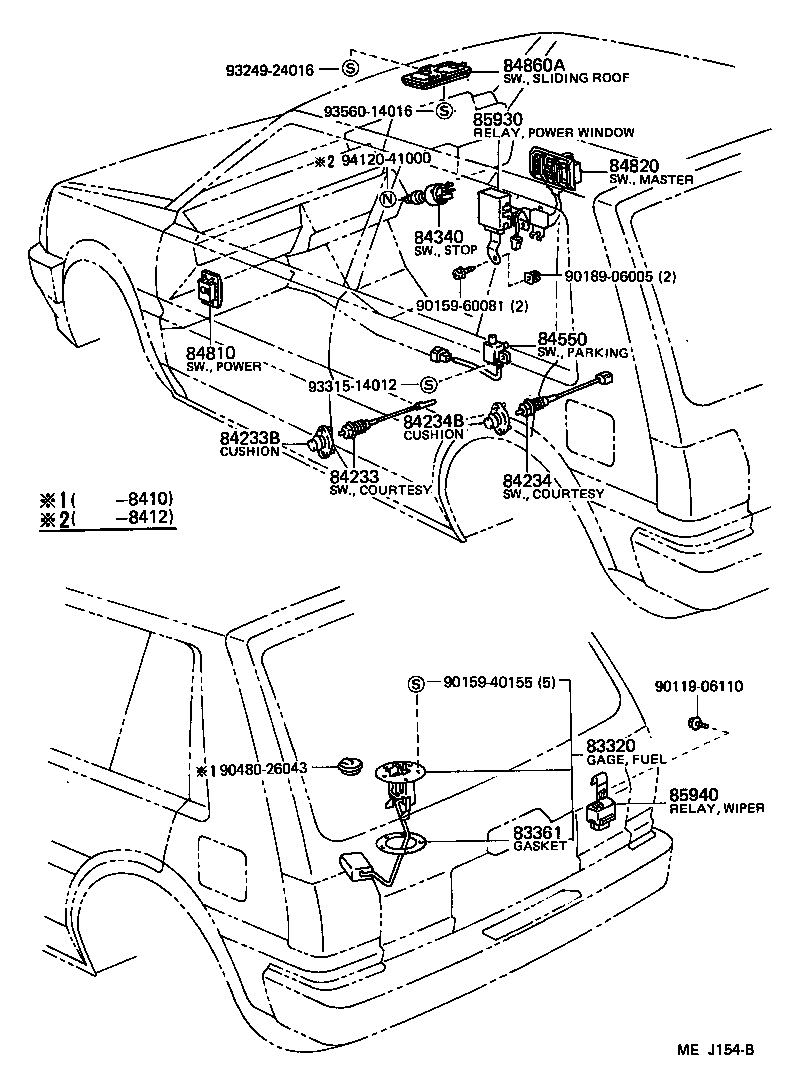

ILLUST NO. 5 OF 5(8410- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19785 |
EP7#,NP7#..CD,CS,DX,RI,STD,TOR,XL |
1 | ||
| 83320-19795 |
EP71..SE,SI,TBS |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
EP7#,NP7# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-12120 |
EP7#,NP7#..CD,DX,RI,SE,SI,TBS,TOR,XL |
2 | ||
| 84231-22060 |
EP7#,NP7#..CD,DX,RI,SE,SI,TBS,TOR,XL |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-22010 |
EP7#,NP7# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-10010 |
EP71,NP70..5D |
2 | ||
| 84230-10040 |
EP71,NP70..5D |
2 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-22010 |
EP71,NP70..5D |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-10020 |
EP7#,NP7# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16010 |
EP7#,NP7# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-1001006 |
EP71..SE,SI,TBS,XL BROWN,BROWN,TRIM4# |
1 | ||
| 84810-1001003 |
EP71..SE,SI,TBS,XL GRAY,GRAY,TRIM1# |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-1001006 |
EP71..SE,SI,TBS,XL BROWN,BROWN,TRIM4# |
1 | ||
| 84820-1001003 |
EP71..SE,SI,TBS,XL GRAY,GRAY,TRIM1# |
1 | ||
| 84860A - SWITCH ASSY, SLIDING ROOF | ||||
| 84860-1001018 |
EP71..RI,SE,SI,TBS,TOR IVORY,IVORY |
1 | ||
| 84860-1001008 |
EP71..RI,SE,SI,TBS,TOR IVORY,IVORY |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 85930-10010 |
EP71..SE,SI,TBS,XL |
1 | ||
| Common parts | ||||
| 90119-06110 | ||||
| 90159-40155 | ||||
| 90159-60081 | ||||
| 90189-06005 | ||||
| 90480-26043 | ||||
| 93249-24016 | ||||
| 93315-14012 | ||||
| 93560-14016 | ||||
| 94120-41000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
