EP71-PHKDS (1984)
Toyota Starlet
Production
Oct 1984
-
Dec 1989
Engine
2ELU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8410- )

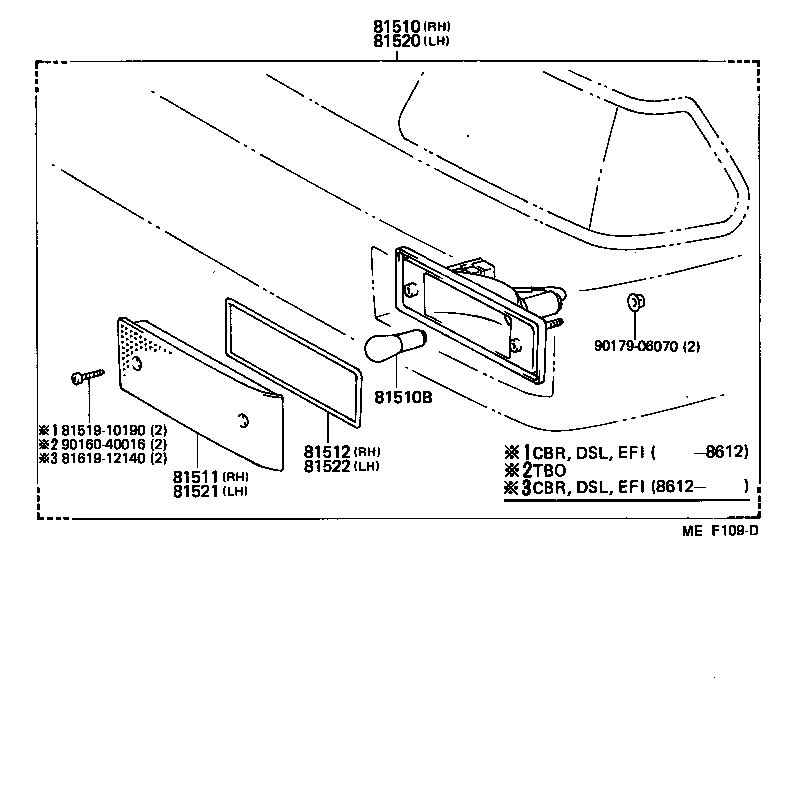

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-80044 |
EP7#,NP7#..CBR,DSL,EFI |
1 | ||
| 81510-80019 |
EP7#..CBR,EFI |
1 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11230 |
EP7# 12V 23W,12V 23W |
2 | ||
| 99132-11210 |
EP7#,NP7# 12V 21W,12V 21W |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-10220 |
EP7#,NP7#..CBR,DSL,EFI |
1 | ||
| 81511-10190 |
EP7#..CBR,EFI |
1 | ||
| 81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH | ||||
| 81512-10220 |
EP7#,NP7#..CBR,DSL,EFI |
1 | ||
| 81512-10190 |
EP7#..CBR,EFI |
1 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-80019 |
EP7#..CBR,EFI |
1 | ||
| 81520-80044 |
EP7#,NP7#..CBR,DSL,EFI |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-10190 |
EP7#..CBR,EFI |
1 | ||
| 81521-10220 |
EP7#,NP7#..CBR,DSL,EFI |
1 | ||
| 81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH | ||||
| 81512-10190 |
EP7#..CBR,EFI |
1 | ||
| 81512-10220 |
EP7#,NP7#..CBR,DSL,EFI |
1 | ||
| Common parts | ||||
| 81519-10190 | ||||
| 81619-12140 | ||||
| 90160-40016 | ||||
| 90179-06070 | ||||
