EP71-PHKDS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )5D

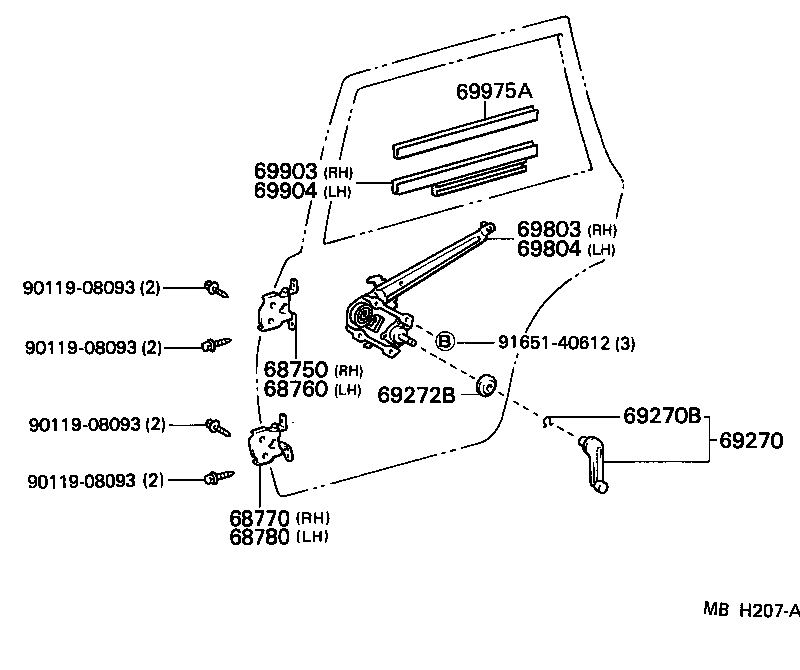

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69270 69270B 69272B 69803 69804 69903 69904 69975A 9011908093 9011908093 9011908093 9011908093 9165140612
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-20050

EP71,NP70..5D

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-20040

EP71,NP70..5D

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-12040

EP71,NP70..5D

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-12030

EP71,NP70..5D

 1
69270 - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-1004010

EP71,NP70..5D..(CBR,DSL)

SEPIA BROWN,SEPIA BROWN,TRIM4#

 1
69260-1004043

EP71,NP70..5D

GRAY,GRAY,TRIM1#

 1
69260-1004012

EP71..5D..DX

SOLEIL-L,MAROON,MAROON,TRIM3#

 2
69260-1004033

EP71..5D

GRAY,SHADOW GRAY,TRIM1#

 2
69260-1004024

EP71..5D..CBR

BLUE,BLUE,TRIM8#

 2
69270B - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01002

EP71,NP70..5D

 2
69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE
69285-2201008

EP71,NP70..5D

NATURAL WHITE

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69830-10030

EP71,NP70..5D

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-10030

EP71,NP70..5D

 1
69903 - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-10040

EP71,NP70..5D

 1
69904 - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69906-10040

EP71,NP70..5D

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-22020

EP71,NP70..5D

 2
Common parts
90119-08093
91651-40612
