EP71-PHKDS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )5D

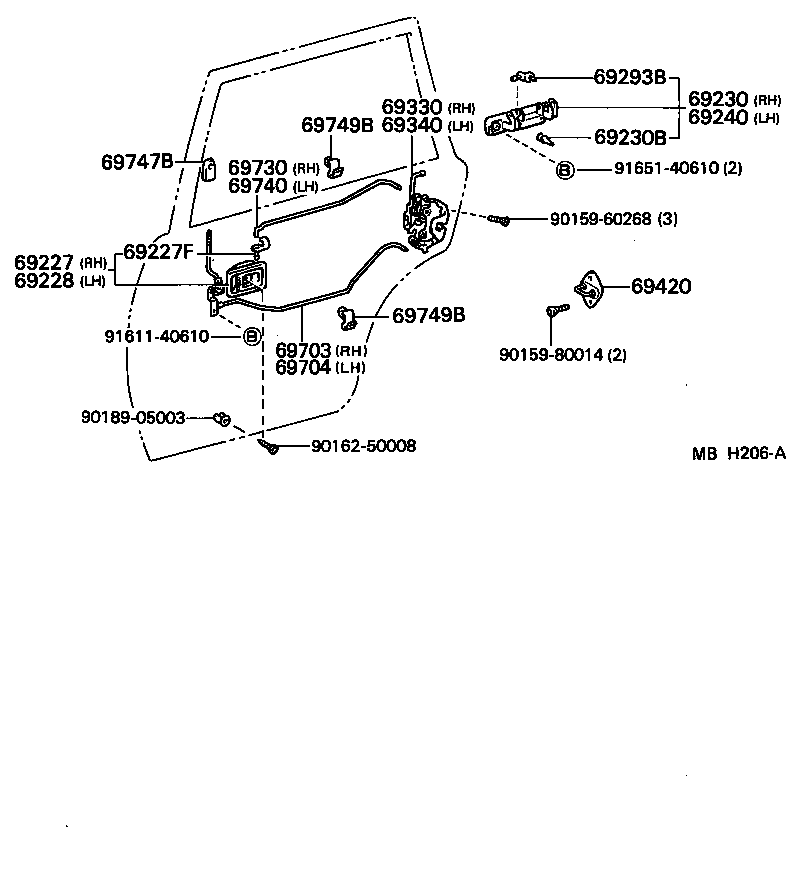

Click highlighted areas on diagram

diagram 69227 69227F 69228 69230 69230B 69240 69293B 69330 69340 69420 69703 69704 69730 69740 69747B 69749B 69749B 9015960268 9015980014 9016250008 9018905003 9161140610 9165140610
Part # Description Qty Price
69227 - HANDLE, REAR DOOR INSIDE, RH
69207-1002002

EP71..5D..DX

SOLEIL-L,MAROON,MAROON,TRIM3#

 1
69207-1004002

EP71..5D..DX

SOLEIL-L,COLD SPEC,MAROON,MAROON,TRIM3#

 1
69207-1002006

EP71,NP70..5D..(CBR,DSL)

BROWN,BROWN,TRIM4#

 1
69207-1004004

EP71..5D..CBR

COLD SPEC,BLUE,BLUE,TRIM8#

 1
69207-1002013

EP71,NP70..5D

GRAY,GRAY,TRIM1#

 1
69207-1004013

EP71,NP70..5D

COLD SPEC,GRAY,GRAY,TRIM1#

 1
69207-1002003

EP71..5D

GRAY,GRAY,TRIM1#

 1
69207-1004003

EP71..5D

COLD SPEC,GRAY,GRAY,TRIM1#

 1
69207-1002004

EP71..5D..CBR

BLUE,BLUE,TRIM8#

 1
69207-1004006

EP71,NP70..5D..(CBR,DSL)

COLD SPEC,BROWN,BROWN,TRIM4#

 1
69227F - SNAP(FOR REAR DOOR INSIDE HANDLE)
69759-20060

EP71,NP70..5D

RH

 1
69759-20070

EP71,NP70..5D

LH

 1
69228 - HANDLE, REAR DOOR INSIDE, LH
69208-1002004

EP71..5D..CBR

BLUE,BLUE,TRIM8#

 1
69208-1002013

EP71,NP70..5D

GRAY,GRAY,TRIM1#

 1
69208-1004013

EP71,NP70..5D

COLD SPEC,GRAY,GRAY,TRIM1#

 1
69208-1002003

EP71..5D

GRAY,GRAY,TRIM1#

 1
69208-1004003

EP71..5D

COLD SPEC,GRAY,GRAY,TRIM1#

 1
69208-1004004

EP71..5D..CBR

COLD SPEC,BLUE,BLUE,TRIM8#

 1
69208-1004002

EP71..5D..DX

SOLEIL-L,COLD SPEC,MAROON,MAROON,TRIM3#

 1
69208-1004006

EP71,NP70..5D..(CBR,DSL)

COLD SPEC,BROWN,BROWN,TRIM4#

 1
69208-1002006

EP71,NP70..5D..(CBR,DSL)

BROWN,BROWN,TRIM4#

 1
69208-1002002

EP71..5D..DX

SOLEIL-L,MAROON,MAROON,TRIM3#

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69240-12070

EP71,NP70..5D

 1
69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE)
90541-03021

EP71,NP70..5D

 2
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69230-12070

EP71,NP70..5D

 1
69293B - SNAP, REAR DOOR OUTSIDE HANDLE
69293-12040

EP71,NP70..5D

LH

 1
69293-12030

EP71,NP70..5D

RH

 1
69330 - LOCK ASSY, REAR DOOR, RH
69330-10041

EP71,NP70..5D

 1
69330-10040

EP71..5D

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-10040

EP71,NP70..5D

 1
69420 - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-87001

EP71,NP70..5D

 2
69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69770-10020

EP71..5D

 1
69770-10030

EP71,NP70..5D

 1
69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69780-10020

EP71..5D

 1
69780-10030

EP71,NP70..5D

 1
69730 - LINK ASSY, REAR DOOR OPEN CONTROL, RH
69713-10030

EP71,NP70..5D

 1
69740 - LINK ASSY, REAR DOOR OPEN CONTROL, LH
69714-10020

EP71,NP70..5D

 1
69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR)
69741-3201001

EP71..5D

BLACK

 2
69741-90K0001

EP71,NP70..5D

BLACK

 2
69749B - CLAMP, REAR DOOR LOCK LINK
69749-20010

EP71,NP70..5D

 3
69749B - CLAMP, REAR DOOR LOCK LINK
69749-20010

EP71,NP70..5D

 3
Common parts
90159-60268
90159-80014
90162-50008
90189-05003
91611-40610
91651-40610
