EP71-PHKDS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )5D

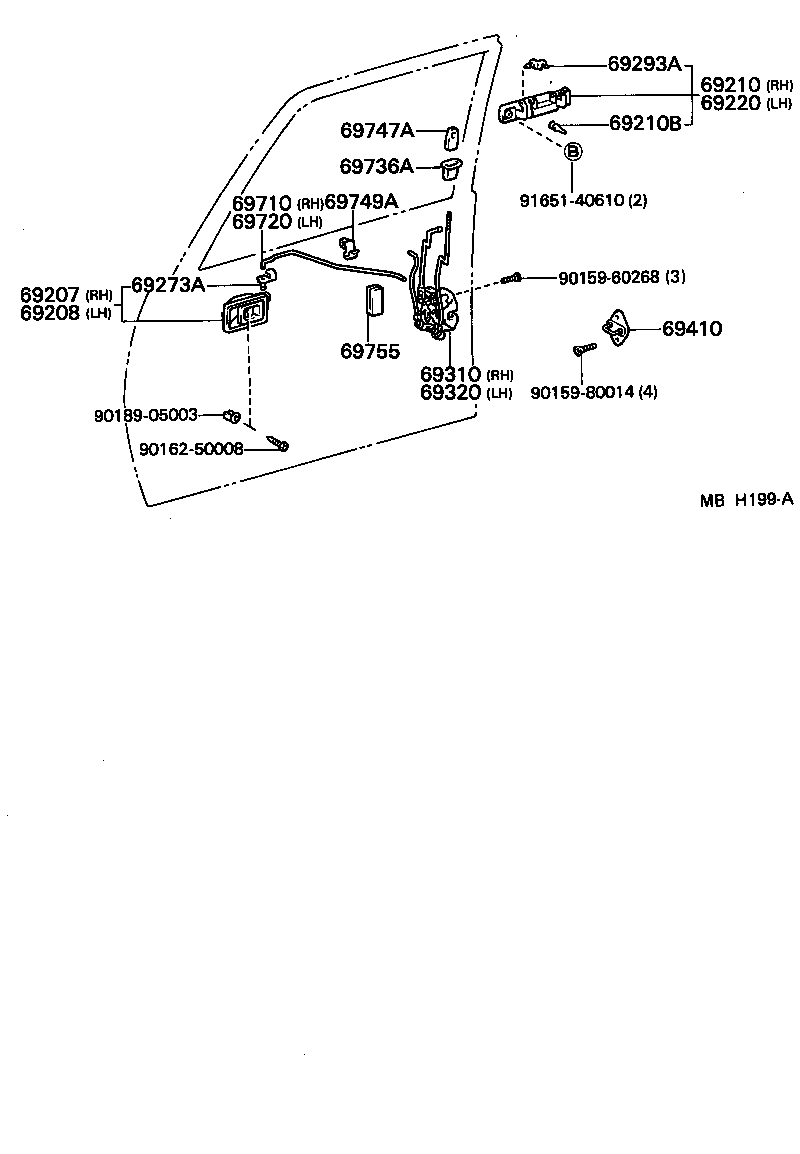

Click highlighted areas on diagram

diagram 69207 69208 69210 69210B 69220 69273A 69293A 69310 69320 69410 69710 69720 69736A 69747A 69749A 69755 9015960268 9015980014 9016250008 9018905003 9165140610
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-1003003

EP7#

GRAY,GRAY,TRIM1#

 1
69205-1003004

EP7#..CD,DX,SE,XL

BLUE,BLUE,TRIM8#

 1
69205-1005004

EP7#..CD,DX,SE,XL

COLD SPEC,BLUE,BLUE,TRIM8#

 1
69205-1005003

EP7#

COLD SPEC,GRAY,GRAY,TRIM1#

 1
69205-1005013

EP7#,NP7#

COLD SPEC,GRAY,GRAY,TRIM1#

 1
69205-1005002

EP71..DX

SOLEIL-L,COLD SPEC,MAROON,MAROON,TRIM3#

 1
69205-1005006

EP71,NP70..DX,SE,XL

COLD SPEC,BROWN,BROWN,TRIM4#

 1
69205-1004013

EP7#,NP7#

GRAY,GRAY,TRIM1#

 1
69205-1004004

EP7#..CD,DX,SE,XL

BLUE,BLUE,TRIM8#

 1
69205-1004002

EP71..DX

SOLEIL-L,MAROON,MAROON,TRIM3#

 1
69205-1004003

EP7#

GRAY,GRAY,TRIM1#

 1
69205-1004006

EP71,NP70..DX,SE,XL

BROWN,SEPIA BROWN,TRIM4#

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-1005003

EP7#

COLD SPEC,GRAY,GRAY,TRIM1#

 1
69206-1003004

EP7#..CD,DX,SE,XL

BLUE,BLUE,TRIM8#

 1
69206-1003003

EP7#

GRAY,GRAY,TRIM1#

 1
69206-1005002

EP71..DX

SOLEIL-L,COLD SPEC,MAROON,MAROON,TRIM3#

 1
69206-1004004

EP7#..CD,DX,SE,XL

BLUE,BLUE,TRIM8#

 1
69206-1005006

EP71,NP70..DX,SE,XL

COLD SPEC,BROWN,SEPIA BROWN,TRIM4#

 1
69206-1004006

EP71,NP70..DX,SE,XL

BROWN,SEPIA BROWN,TRIM4#

 1
69206-1004002

EP71..DX

SOLEIL-L,MAROON,MAROON,TRIM3#

 1
69206-1005013

EP7#,NP7#

COLD SPEC,GRAY,GRAY,TRIM1#

 1
69206-1004013

EP7#,NP7#

GRAY,GRAY,TRIM1#

 1
69206-1005004

EP7#..CD,DX,SE,XL

COLD SPEC,BLUE,BLUE,TRIM8#

 1
69206-1004003

EP7#

GRAY,GRAY,TRIM1#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69240-12070

EP7#,NP7#

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

EP7#,NP7#

 2
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69230-12070

EP7#,NP7#

 1
69273A - SNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
69759-20060

EP7#,NP7#

RH

 1
69759-20070

EP7#,NP7#

LH

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12040

EP7#,NP7#

LH

 1
69293-12030

EP7#,NP7#

RH

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-10110

EP71,NP70..5D

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-10110

EP71,NP70..5D

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-87001

EP7#,NP7#

 2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-10030

EP71,NP70..5D

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69712-10040

EP71,NP70..5D

 1
69736A - GUIDE, FRONT DOOR LOCK LINK
69736-10040

EP71,NP70..SE,SI,TBS,TOR,XL

 1
69736-22021

EP71..SE,SI,TBS,TOR,XL

 2
69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR)
69741-3201001

EP7#

BLACK

 2
69741-90K0001

EP7#,NP7#

BLACK

 2
69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1
69749-20010

EP71,NP70..5D

 3
69755 - SILENCER, FRONT DOOR LOCK LINK
69759-12011

EP7#,NP7#

40X80

 2
Common parts
90159-60268
90159-80014
90162-50008
90189-05003
91651-40610
