EP71-PHKDS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )CBR,DSL,EFI

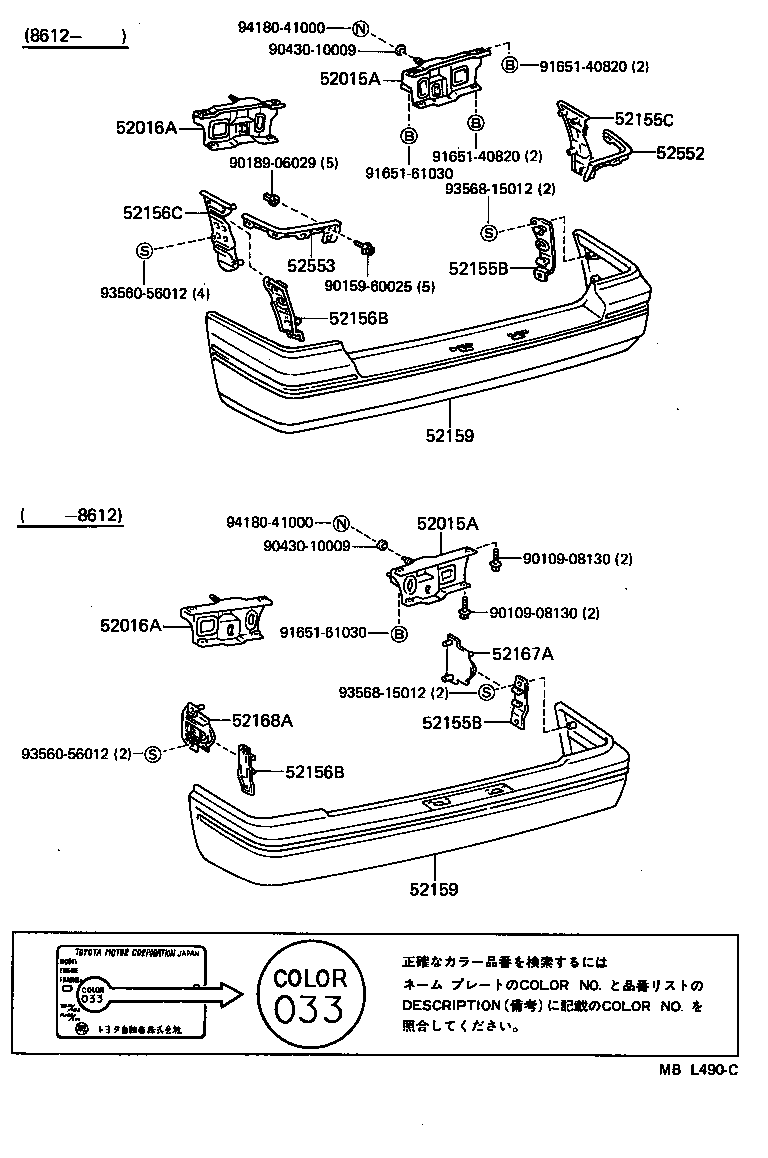

Click highlighted areas on diagram

diagram 52015A 52015A 52016A 52016A 52155B 52155B 52155C 52156B 52156B 52156C 52159 52159 52167A 52168A 52552 52553 9010908130 9010908130 9015960025 9018906029 9043010009 9043010009 9165140820 9165140820 9165161030 9165161030 9356056012 9356056012 9356815012 9356815012 9418041000 9418041000
Part # Description Qty Price
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-10060

EP7#..CBR,EFI

 1
52015-10080

EP7#,NP7#..CBR,DSL,EFI

 1
52015A - ARM SUB-ASSY, REAR BUMPER, RH
52015-10060

EP7#..CBR,EFI

 1
52015-10080

EP7#,NP7#..CBR,DSL,EFI

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-10060

EP7#..CBR,EFI

 1
52016-10080

EP7#,NP7#..CBR,DSL,EFI

 1
52016A - ARM SUB-ASSY, REAR BUMPER, LH
52016-10060

EP7#..CBR,EFI

 1
52016-10080

EP7#,NP7#..CBR,DSL,EFI

 1
52155B - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-10020

EP7#..CBR,EFI

 1
52157-10050

EP7#,NP7#..CBR,DSL,EFI

 1
52155B - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-10020

EP7#..CBR,EFI

 1
52157-10050

EP7#,NP7#..CBR,DSL,EFI

 1
52155C - SUPPORT, REAR BUMPER SIDE, NO.1 RH
52155-10030

EP7#,NP7#..CBR,DSL,EFI

 1
52156B - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-10020

EP7#,NP7#..CBR,DSL,EFI

 1
52157-10020

EP7#..CBR,EFI

 1
52156B - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-10020

EP7#,NP7#..CBR,DSL,EFI

 1
52157-10020

EP7#..CBR,EFI

 1
52156C - SUPPORT, REAR BUMPER SIDE, NO.1 LH
52156-10020

EP7#,NP7#..CBR,DSL,EFI

 1
52159 - COVER, REAR BUMPER
52159-10070

EP7#..CBR,EFI

 1
52159-10110

EP7#,NP7#..CD,CS,DX,RI,SI,STD,XL

 1
52159-1012003

EP71,NP70..SE

MEDIUM GRAY-M,MEDIUM GRAY METALLIC,157

 1
52159-1012008

EP71,NP70..SE

WHITE,WHITE,041

 1
52159-1012008

EP71..DX

SOLEIL-L,WHITE,WHITE,041

 1
52159-1012003

EP71..DX

SOLEIL-L,MEDIUM GRAY M;SOLEIL-L,MEDIUM GRAY-M,MEDIUM GRAY METALLIC,157

 1
52159-1012002

EP71,NP70..SE

RED,RED,3E6

 1
52159-1012002

EP71..DX

SOLEIL-L,RED,RED,3E6

 1
52159 - COVER, REAR BUMPER
52159-10070

EP7#..CBR,EFI

 1
52159-10110

EP7#,NP7#..CD,CS,DX,RI,SI,STD,XL

 1
52159-1012003

EP71,NP70..SE

MEDIUM GRAY-M,MEDIUM GRAY METALLIC,157

 1
52159-1012008

EP71,NP70..SE

WHITE,WHITE,041

 1
52159-1012008

EP71..DX

SOLEIL-L,WHITE,WHITE,041

 1
52159-1012003

EP71..DX

SOLEIL-L,MEDIUM GRAY M;SOLEIL-L,MEDIUM GRAY-M,MEDIUM GRAY METALLIC,157

 1
52159-1012002

EP71,NP70..SE

RED,RED,3E6

 1
52159-1012002

EP71..DX

SOLEIL-L,RED,RED,3E6

 1
52167A - SUPPORT, REAR BUMPER SIDE, NO.4 RH
52167-10020

EP7#..CBR,EFI

 1
52168A - SUPPORT, REAR BUMPER SIDE, NO.4 LH
52167-10020

EP7#..CBR,EFI

 1
52552 - FILLER, REAR BUMPER, RH
52552-10020

EP7#,NP7#..CBR,DSL,EFI

 1
52553 - FILLER, REAR BUMPER, LH
52553-10020

EP7#,NP7#..CBR,DSL,EFI

 1
Common parts
90109-08130
90159-60025
90189-06029
90430-10009
91651-40820
91651-61030
93560-56012
93568-15012
94180-41000
