EP71-PHKDS (1984)
Toyota Starlet

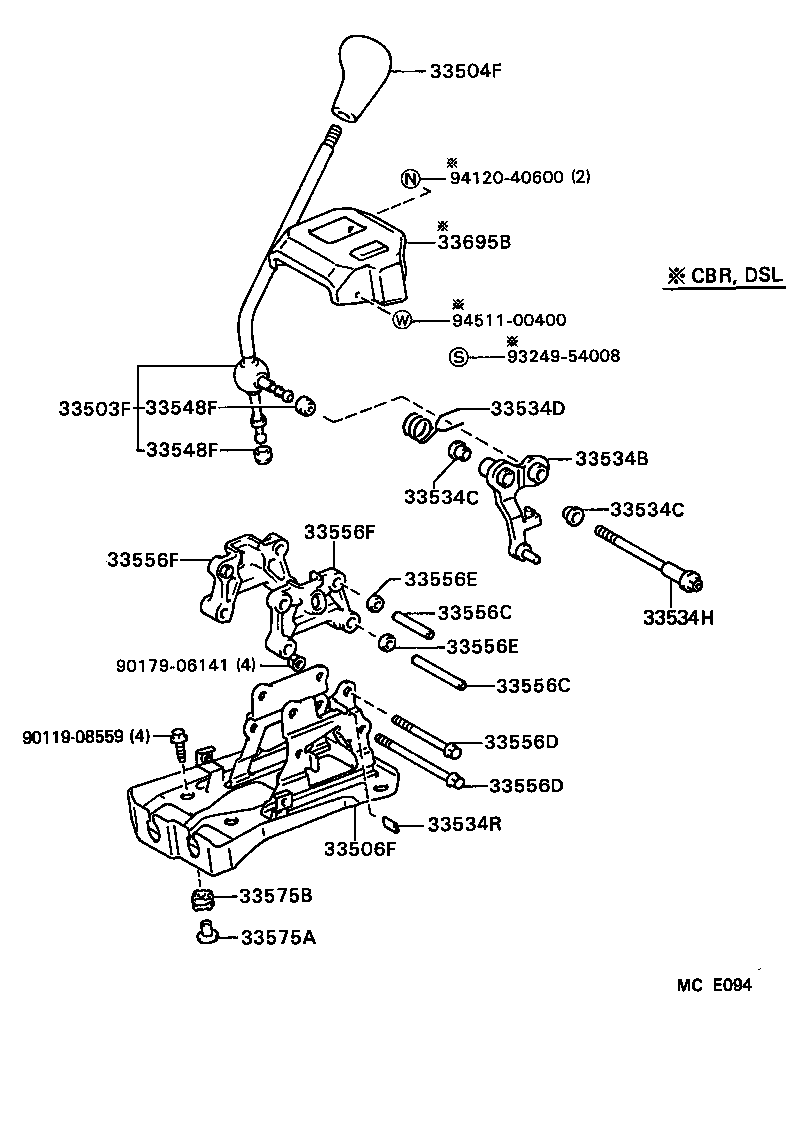

ILLUST NO. 1 OF 2(8410-8612)MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-10080 |
EP7#..MTM |
1 | ||
| 33503-16170 |
EP7#,NP7#..MTM..(CBR,DSL) |
1 | ||
| 33503-10080 |
EP7#..MTM..CBR |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-1404004 |
EP71..4F..(SE,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 33504-1404044 |
EP71..4F..(SE,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 33504-1404001 |
EP7#..4F BLACK,BLACK,TRIM1#,8# |
1 | ||
| 33504-1404026 |
EP71..4F..(SE,XL) BROWN,BROWN,TRIM4# |
1 | ||
| 33534B - CRANK, SELECTING BELL, NO.1 | ||||
| 33509-12040 |
EP7#..MTM |
1 | ||
| 33509-12050 |
EP7#..MTM |
1 | ||
| 33509-16010 |
EP7#,NP7#..MTM |
1 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12013 |
EP7#,NP7#..MTM |
2 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12013 |
EP7#,NP7#..MTM |
2 | ||
| 33534D - SPRING, TORSION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90508-20083 |
EP7#,NP7#..MTM |
1 | ||
| 90508-20062 |
EP7#..MTM |
1 | ||
| 33534P - WASHER, PLATE (FOR SELECTING BELLCRANK NO.1) | ||||
| 90201-12029 |
EP7#..MTM |
2 | ||
| 33534P - WASHER, PLATE (FOR SELECTING BELLCRANK NO.1) | ||||
| 90201-12029 |
EP7#..MTM |
2 | ||
| 33534Q - RING, E (FOR SELECTING BELLCRANK NO.1) | ||||
| 96160-00900 |
EP7#..MTM |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12021 |
EP7#,NP7#..MTM |
2 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12021 |
EP7#,NP7#..MTM |
2 | ||
| 33554 - CAP, SHIFT LEVER | ||||
| 33554-12040 |
EP7#..MTM |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-12030 |
EP7#..MTM UPR |
1 | ||
| 33556-12020 |
EP7#..MTM LWR |
1 | ||
| 33556-16030 |
EP7#,NP7#..MTM |
2 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-12030 |
EP7#..MTM UPR |
1 | ||
| 33556-12020 |
EP7#..MTM LWR |
1 | ||
| 33556-16030 |
EP7#,NP7#..MTM |
2 | ||
| 33556G - SPRING (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90561-35001 |
EP7#..MTM |
1 | ||
| 33556H - SHIM (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90564-30006 |
EP7#..MTM 厚さ=0.8,ﾏｰｸ F 0R 8,T=0.8,MARK F OR 8 |
1 | ||
| 90564-30005 |
EP7#..MTM 厚さ=0.7,ﾏｰｸ E 0R 7,T=0.7,MARK E OR 7 |
1 | ||
| 90564-30007 |
EP7#..MTM 厚さ=0.9,ﾏｰｸ G 0R 9,T=0.9,MARK G OR 9 |
1 | ||
| 90564-30003 |
EP7#..MTM 厚さ=0.5,ﾏｰｸ C 0R 5,T=0.5,MARK C OR 5 |
1 | ||
| 90564-30010 |
EP7#..MTM 厚さ=1.2,ﾏｰｸ L 0R 12,T=1.2,MARK L OR 12 |
1 | ||
| 90564-30008 |
EP7#..MTM 厚さ=1.0,ﾏｰｸ H 0R 10,T=1.0,MARK H OR 10 |
1 | ||
| 90564-30011 |
EP7#..MTM 厚さ=0.3,ﾏｰｸ A 0R 3,T=0.3,MARK A OR 3 |
1 | ||
| 90564-30012 |
EP7#..MTM 厚さ=0.4,ﾏｰｸ B 0R 4,T=0.4,MARK B OR 4 |
1 | ||
| 90564-30009 |
EP7#..MTM 厚さ=1.1,ﾏｰｸ K 0R 11,T=1.1,MARK K OR 11 |
1 | ||
| 90564-30004 |
EP7#..MTM 厚さ=0.6,ﾏｰｸ D 0R 6,T=0.6,MARK D OR 6 |
1 | ||
| 33575 - RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33506-10040 |
EP7#..MTM |
1 | ||
| 33575A - BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-08031 |
EP7#,NP7#..MTM |
4 | ||
| 33575B - BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-10018 |
EP7#,NP7#..MTM |
4 | ||
| 33593F - HOLDER, SPRING (FOR FLOOR SHIFT) | ||||
| 33593-12020 |
EP7#..MTM |
1 | ||
| 33618 - SUPPORT, SELECTING BELLCRANK, NO.1 | ||||
| 33618-12040 |
EP7#..MTM |
1 | ||
| 33618A - BOLT (FOR SELECTING BELLCRANK SUPPORT) | ||||
| 90119-06268 |
EP7#..MTM *6−1.00PX24−20,*6-1.0PX24-20 |
1 | ||
| 90105-08078 |
EP7#..MTM *8−1.25PX28−13,*8-1.25PX28-13 |
1 | ||
| 33618A - BOLT (FOR SELECTING BELLCRANK SUPPORT) | ||||
| 90119-06268 |
EP7#..MTM *6−1.00PX24−20,*6-1.0PX24-20 |
1 | ||
| 90105-08078 |
EP7#..MTM *8−1.25PX28−13,*8-1.25PX28-13 |
1 | ||
| 33695B - COVER, SELECTING SPRING (FOR FLOOR SHIFT) | ||||
| 33695-10010 |
EP7#..MTM..(CBR,EFI) |
1 | ||
| 33695-16020 |
EP7#,NP7#..MTM..(CBR,DSL) |
1 | ||
| Common parts | ||||
| 90119-06047 | ||||
| 90179-08054 | ||||
| 91111-50608 | ||||
| 91665-40830 | ||||
| 93249-54008 | ||||
| 93560-54008 | ||||
| 94511-00400 | ||||
| 94511-00600 | ||||
| 94612-10601 | ||||
ILLUST NO. 2 OF 2(8410- )MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33261D - BUSH (FOR SHIFT & SELECT LEVER) | ||||
| 90389-10009 |
EP7#,NP7#..MTM |
1 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-10030 |
EP7#..MTM |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-10030 |
EP7#..MTM |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
EP7#,NP7#..MTM |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
EP7#,NP7#..MTM |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
EP7#,NP7#..MTM |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
EP7#,NP7#..MTM |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-10030 |
EP7#,NP7#..MTM |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-10010 |
EP7#,NP7# CHKK |
1 | ||
| 33574-10020 |
EP7# TSK |
1 | ||
| 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 | ||||
| 33574-10030 |
EP7#,NP7# |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-10010 |
EP7#..MTM |
1 | ||
| 33608-10011 |
EP7#..MTM |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-10020 |
EP7#..MTM |
1 | ||
| 33821-10100 |
EP7#..MTM |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01291 |
EP7#,NP7#..MTM |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08267 |
EP7#,NP7#..MTM 外径=28,TRANSAXLE SIDE |
2 | ||
| 90201-10042 |
EP7#,NP7# SHIFT LEVER SIDE |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08267 |
EP7#,NP7#..MTM 外径=28,TRANSAXLE SIDE |
2 | ||
| 90201-10042 |
EP7#,NP7# SHIFT LEVER SIDE |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08267 |
EP7#,NP7#..MTM 外径=28,TRANSAXLE SIDE |
2 | ||
| 90201-10042 |
EP7#,NP7# SHIFT LEVER SIDE |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-10020 |
EP7#..MTM |
1 | ||
| Common parts | ||||
| 90468-14011 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 90468-14027 | ||||
| 91611-60822 | ||||
| 91612-61020 | ||||
| 91615-60616 | ||||
| 91651-40618 | ||||
| 93560-16012 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
ILLUST NO. 1 OF 2(8612- )MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-10080 |
EP7#..MTM |
1 | ||
| 33503-16170 |
EP7#,NP7#..MTM..(CBR,DSL) |
1 | ||
| 33503-10080 |
EP7#..MTM..CBR |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-1404004 |
EP71..4F..(SE,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 33504-1404044 |
EP71..4F..(SE,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 33504-1404001 |
EP7#..4F BLACK,BLACK,TRIM1#,8# |
1 | ||
| 33504-1404026 |
EP71..4F..(SE,XL) BROWN,BROWN,TRIM4# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-10050 |
EP7#,NP7#..MTM |
1 | ||
| 33534B - CRANK, SELECTING BELL, NO.1 | ||||
| 33509-12040 |
EP7#..MTM |
1 | ||
| 33509-12050 |
EP7#..MTM |
1 | ||
| 33509-16010 |
EP7#,NP7#..MTM |
1 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12013 |
EP7#,NP7#..MTM |
2 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12013 |
EP7#,NP7#..MTM |
2 | ||
| 33534D - SPRING, TORSION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90508-20083 |
EP7#,NP7#..MTM |
1 | ||
| 90508-20062 |
EP7#..MTM |
1 | ||
| 33534H - BOLT (FOR SELECTING BELLCRANK NO.1) | ||||
| 90109-06113 |
EP7#,NP7#..MTM |
1 | ||
| 33534R - CUSHION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90540-04005 |
EP7#,NP7#..MTM |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12021 |
EP7#,NP7#..MTM |
2 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12021 |
EP7#,NP7#..MTM |
2 | ||
| 33556C - COLLAR (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90387-06039 |
EP7#,NP7#..MTM L=57.8 |
2 | ||
| 90387-06038 |
EP7#,NP7#..MTM L=37.8 |
2 | ||
| 33556C - COLLAR (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90387-06039 |
EP7#,NP7#..MTM L=57.8 |
2 | ||
| 90387-06038 |
EP7#,NP7#..MTM L=37.8 |
2 | ||
| 33556D - BOLT (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90105-06095 |
EP7#,NP7#..MTM *6-1.00PX55-14.5 |
1 | ||
| 90105-06096 |
EP7#,NP7#..MTM *6-1.00PX71-10.5 |
2 | ||
| 33556D - BOLT (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90105-06095 |
EP7#,NP7#..MTM *6-1.00PX55-14.5 |
1 | ||
| 90105-06096 |
EP7#,NP7#..MTM *6-1.00PX71-10.5 |
2 | ||
| 33556E - CUSHION (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90540-08016 |
EP7#,NP7#..MTM |
8 | ||
| 33556E - CUSHION (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90540-08016 |
EP7#,NP7#..MTM |
8 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-12030 |
EP7#..MTM UPR |
1 | ||
| 33556-12020 |
EP7#..MTM LWR |
1 | ||
| 33556-16030 |
EP7#,NP7#..MTM |
2 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-12030 |
EP7#..MTM UPR |
1 | ||
| 33556-12020 |
EP7#..MTM LWR |
1 | ||
| 33556-16030 |
EP7#,NP7#..MTM |
2 | ||
| 33575A - BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-08031 |
EP7#,NP7#..MTM |
4 | ||
| 33575B - BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-10018 |
EP7#,NP7#..MTM |
4 | ||
| 33695B - COVER, SELECTING SPRING (FOR FLOOR SHIFT) | ||||
| 33695-10010 |
EP7#..MTM..(CBR,EFI) |
1 | ||
| 33695-16020 |
EP7#,NP7#..MTM..(CBR,DSL) |
1 | ||
| Common parts | ||||
| 90119-08559 | ||||
| 90179-06141 | ||||
| 93249-54008 | ||||
| 94120-40600 | ||||
| 94511-00400 | ||||
