EP71-PHKDS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )2EL#

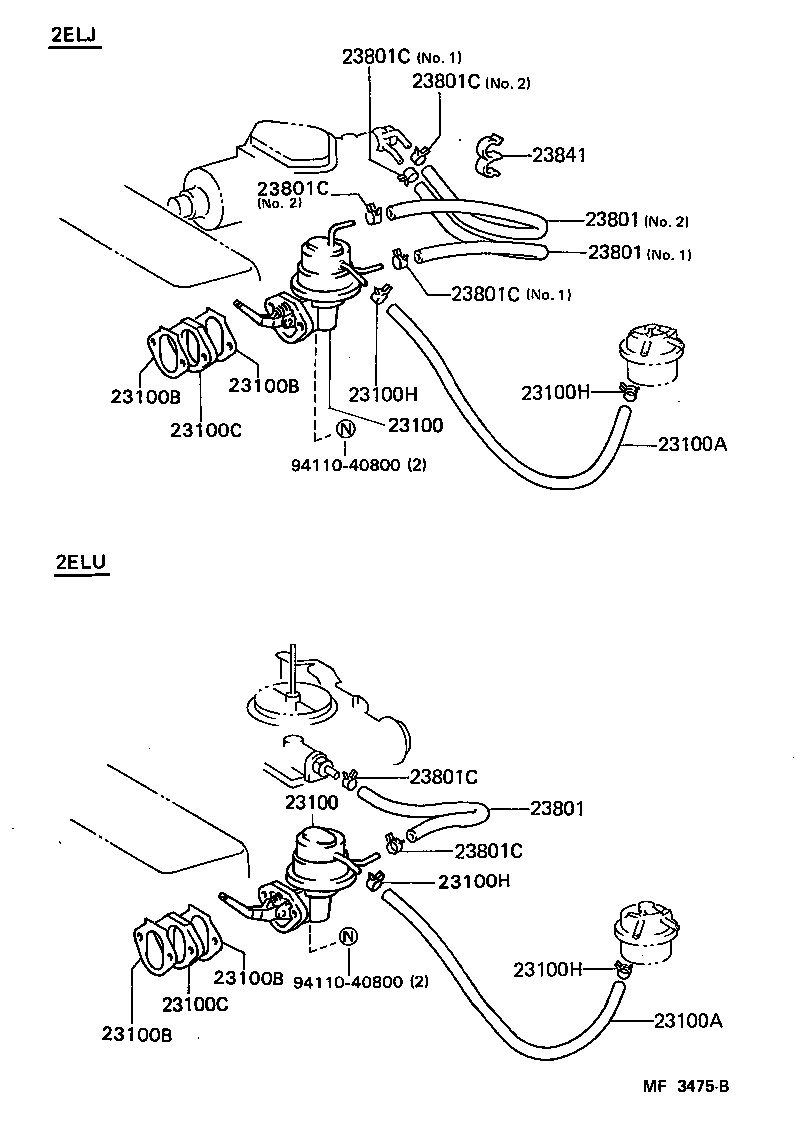

Click highlighted areas on diagram

diagram 23100 23100 23100A 23100A 23100B 23100B 23100B 23100B 23100C 23100C 23100H 23100H 23100H 23100H 23801 23801 23801 23801C 23801C 23801C 23801C 23801C 23801C 23841 9411040800 9411040800
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-11030

2ELU..EP71

 1
23100-11031

2ELU..EP71

 1
23100-11032

2ELU..EP71

 1
23100-11033

2ELU..EP71

 1
23100 - PUMP ASSY, FUEL
23100-11030

2ELU..EP71

 1
23100-11031

2ELU..EP71

 1
23100-11032

2ELU..EP71

 1
23100-11033

2ELU..EP71

 1
23100A - HOSE, FUEL
95332-06040

2EL#..EP7#

*H,L=360

 1
95333-06040

2EL#..EP7#

 1
95333-06036

2EL#..EP7#

 1
23100A - HOSE, FUEL
95332-06040

2EL#..EP7#

*H,L=360

 1
95333-06040

2EL#..EP7#

 1
95333-06036

2EL#..EP7#

 1
23100B - GASKET, FUEL PUMP
90923-05017

2EL#..EP7#

 2
23100B - GASKET, FUEL PUMP
90923-05017

2EL#..EP7#

 2
23100B - GASKET, FUEL PUMP
90923-05017

2EL#..EP7#

 2
23100B - GASKET, FUEL PUMP
90923-05017

2EL#..EP7#

 2
23100C - INSULATOR, FUEL PUMP
23915-10020

2EL#..EP7#

 1
23100C - INSULATOR, FUEL PUMP
23915-10020

2EL#..EP7#

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2EL#..EP7#

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2EL#..EP7#

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2EL#..EP7#

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2EL#..EP7#

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
95332-06030

2EL#..EP7#

*H,L=220,NO.1

 1
95333-06022

2EL#..EP7#

*H,L=220,NO.1

 1
95333-06030

2EL#..EP7#

*H,L=220,NO.1

 1
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
95332-06030

2EL#..EP7#

*H,L=220,NO.1

 1
95333-06022

2EL#..EP7#

*H,L=220,NO.1

 1
95333-06030

2EL#..EP7#

*H,L=220,NO.1

 1
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
95332-06030

2EL#..EP7#

*H,L=220,NO.1

 1
95333-06022

2EL#..EP7#

*H,L=220,NO.1

 1
95333-06030

2EL#..EP7#

*H,L=220,NO.1

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
90467-11049

2EL#..EP7#

NO.1

 2
96132-30600

2EL#..EP7#

NO.1

 2
90467-11009

2EL#..EP7#

NO.1

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
90467-11049

2EL#..EP7#

NO.1

 2
96132-30600

2EL#..EP7#

NO.1

 2
90467-11009

2EL#..EP7#

NO.1

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
90467-11049

2EL#..EP7#

NO.1

 2
96132-30600

2EL#..EP7#

NO.1

 2
90467-11009

2EL#..EP7#

NO.1

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
90467-11049

2EL#..EP7#

NO.1

 2
96132-30600

2EL#..EP7#

NO.1

 2
90467-11009

2EL#..EP7#

NO.1

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
90467-11049

2EL#..EP7#

NO.1

 2
96132-30600

2EL#..EP7#

NO.1

 2
90467-11009

2EL#..EP7#

NO.1

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
90467-11049

2EL#..EP7#

NO.1

 2
96132-30600

2EL#..EP7#

NO.1

 2
90467-11009

2EL#..EP7#

NO.1

 2
Common parts
94110-40800
