EP71-PHKDS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )2ELU

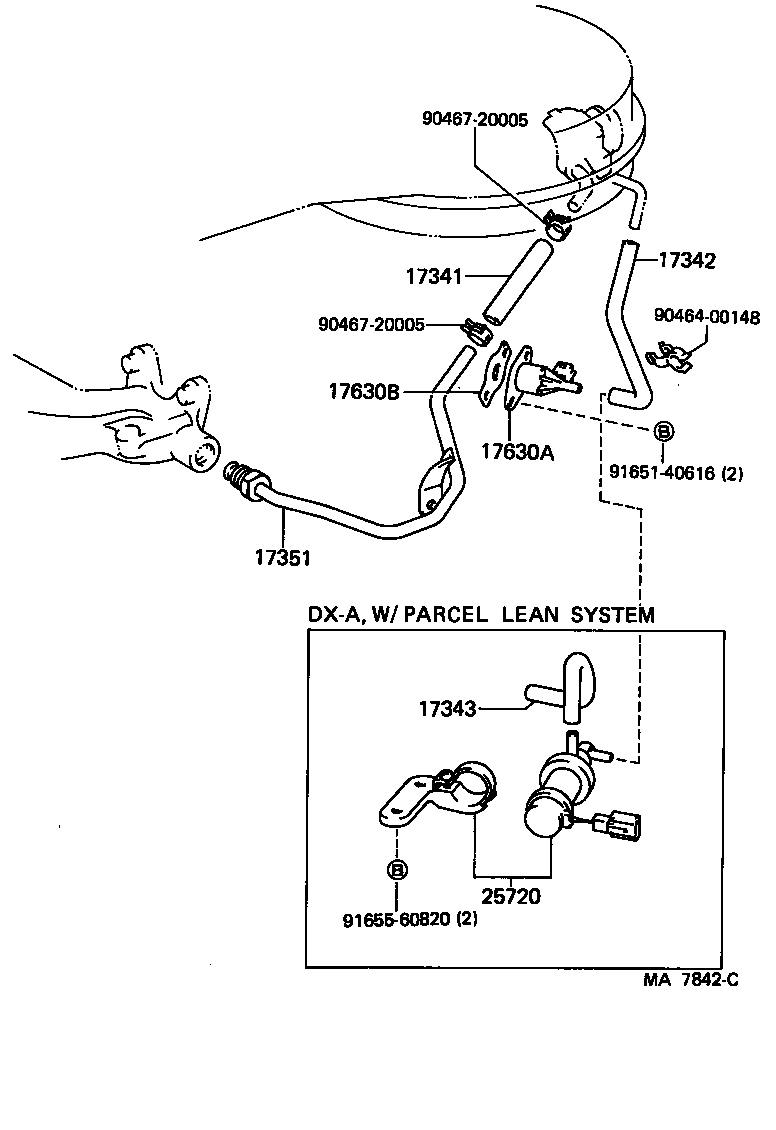

Click highlighted areas on diagram

diagram 17341 17342 17343 17351 17630A 17630B 25720 9046400148 9046720005 9046720005 9165140616 9165560820
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-11020

2ELU..EP71

 1
17341-11021

2ELU..EP71

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-11010

2ELU..EP71

 1
17351 - MANIFOLD, AIR INJECTION
17306-11010

2ELU..EP71

 1
17630A - VALVE ASSY, AIR CONTROL
17630-11010

2ELU..EP71

 1
17630B - GASKET, AIR CONTROL VALVE
25717-11010

2ELU..EP71

 1
Common parts
90464-00148
90467-20005
91651-40616
91655-60820
