EP71-PHKDS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )2ELU

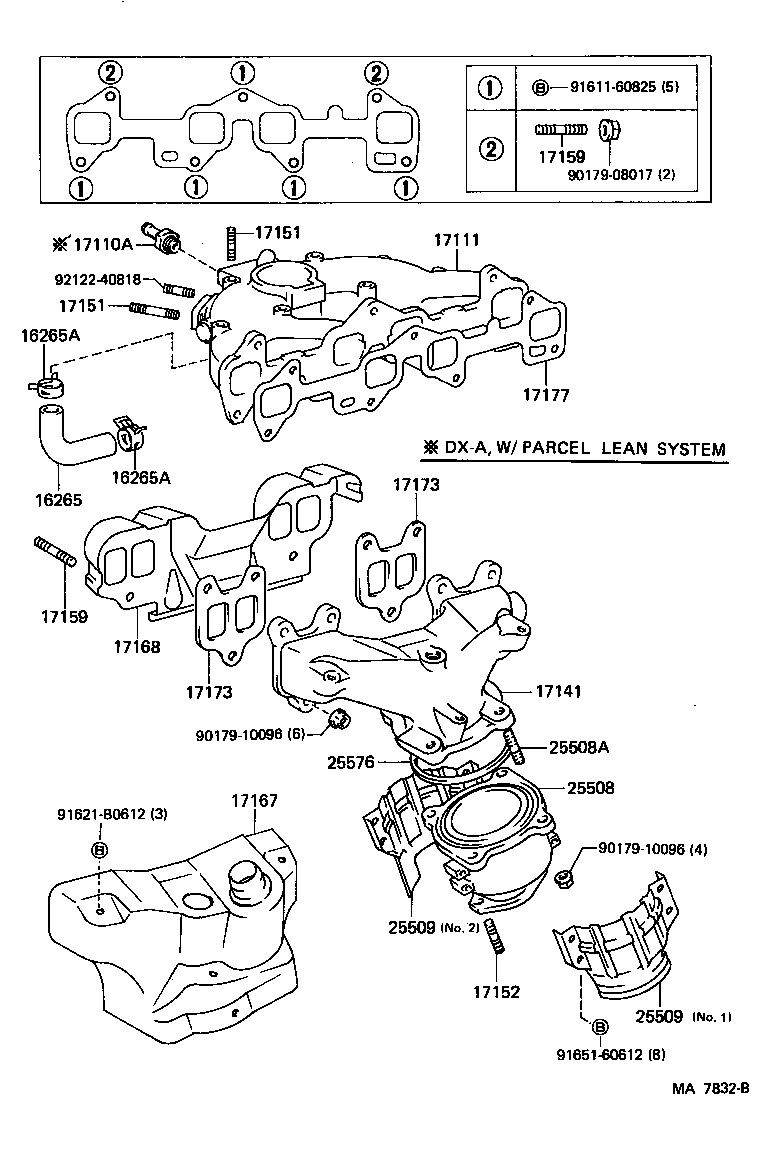

Click highlighted areas on diagram

diagram 16265 16265A 16265A 17110A 17111 17141 17151 17151 17152 17159 17159 17167 17168 17173 17173 17177 25508 25508A 25509 25509 25576 9017908017 9017910096 9017910096 9161160825 91621B0612 9165160612 9212240818
Part # Description Qty Price
16265 - HOSE, INTAKE MANIFOLD WATER
16265-11010

2EL#..EP7#

 1
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
90467-21001

2EL#..EP7#

 2
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
90467-21001

2EL#..EP7#

 2
17111 - MANIFOLD, INTAKE
17101-11100

2EL#..EP7#

 1
17101-11180

2EL#..EP7#

 1
17141 - MANIFOLD, EXHAUST
17141-11010

2ELU..EP71

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08204

2EL#..EP7#

 5
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08204

2EL#..EP7#

 5
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10017

2E#..EP7#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92132-60825

2E#..EP7#

INTAKE MANIFOLD

 2
92122-61028

2E#..EP7#

EXHAUST MANIFOLD

 6
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92132-60825

2E#..EP7#

INTAKE MANIFOLD

 2
92122-61028

2E#..EP7#

EXHAUST MANIFOLD

 6
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17107-11081

2ELU..EP71

COLD SPEC

 1
17107-11080

2ELU..EP71

COLD SPEC

 1
17107-11010

2ELU..EP71

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-10010

2EELU,2EL#..EP7#

 1
17168-10011

2EELU,2EL#..EP7#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-10020

2EELU,2EL#..EP7#

 2
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-10020

2EELU,2EL#..EP7#

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-10010

2E#..EP7#

 1
25508 - CONVERTER SUB-ASSY, MANIFOLD
25508-11011

2EELU,2ELU..EP71

 1
25508-11041

2EELU,2ELU..EP71

 1
25508-11050

2EELU,2ELU..EP71

 1
25508-11010

2EELU,2ELU..EP71

 1
25508A - BOLT, STUD(FOR MANIFOLD CONVERTER)
90116-10087

2EELU,2ELU..EP71

 4
90116-10056

2EELU,2ELU..EP71

 4
25509 - INSULATOR SUB-ASSY, MANIFOLD CONVERTOR
25586-11010

2EELU,2ELU..EP71

NO.1

 1
25587-11010

2EELU,2ELU..EP71

NO.2

 1
25509 - INSULATOR SUB-ASSY, MANIFOLD CONVERTOR
25586-11010

2EELU,2ELU..EP71

NO.1

 1
25587-11010

2EELU,2ELU..EP71

NO.2

 1
25576 - GASKET, MANIFOLD CONVERTER
25576-15010

2EELU,2ELU,2ETELU..EP71

 1
25576-11020

2EELU,2ELU,2ETELU..EP71

 1
Common parts
90179-08017
90179-10096
91611-60825
91621-B0612
91651-60612
92122-40818
