EP71-PHHNS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )

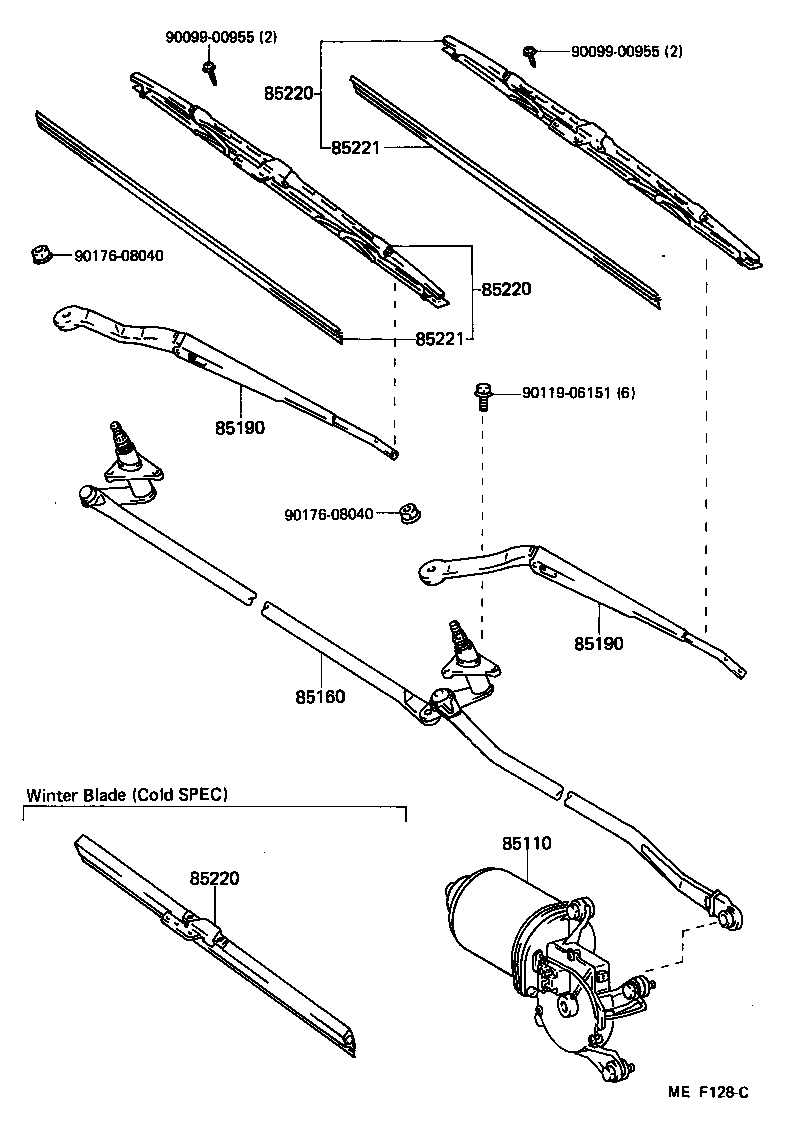

Click highlighted areas on diagram

diagram 85110 85160 85190 85190 85220 85220 85220 85221 85221 9009900955 9009900955 9011906151 9017608040 9017608040
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-10261

EP7#,NP7#

 1
85110-10260

EP7#

 1
85110-10320

EP7#,NP7#

COLD SPEC

 1
85110-10322

EP7#,NP7#

COLD SPEC

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-10210

EP7#,NP7#

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-10400

EP7#,NP7#

RH

 1
85210-10070

EP7#,NP7#

LH

 1
85210-10050

EP7#

LH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-10400

EP7#,NP7#

RH

 1
85210-10070

EP7#,NP7#

LH

 1
85210-10050

EP7#

LH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-22481

EP7#,NP7#

LH

 1
85220-12620

EP7#,NP7#

RH,WINTER BLADE

 1
85220-22480

EP7#

LH

 1
85220-24040

EP7#

RH,WINTER BLADE

 1
85220-14170

EP7#,NP7#

LH,WINTER BLADE

 1
85220-16350

EP7#,NP7#

RH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-22481

EP7#,NP7#

LH

 1
85220-12620

EP7#,NP7#

RH,WINTER BLADE

 1
85220-22480

EP7#

LH

 1
85220-24040

EP7#

RH,WINTER BLADE

 1
85220-14170

EP7#,NP7#

LH,WINTER BLADE

 1
85220-16350

EP7#,NP7#

RH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-22481

EP7#,NP7#

LH

 1
85220-12620

EP7#,NP7#

RH,WINTER BLADE

 1
85220-22480

EP7#

LH

 1
85220-24040

EP7#

RH,WINTER BLADE

 1
85220-14170

EP7#,NP7#

LH,WINTER BLADE

 1
85220-16350

EP7#,NP7#

RH

 1
85221 - BLADE, WINDSHIELD WIPER
85221-89103

EP7#

LH

 1
85221-10070

EP7#,NP7#

LH

 1
85221-30120

EP7#,NP7#

RH

 1
85221 - BLADE, WINDSHIELD WIPER
85221-89103

EP7#

LH

 1
85221-10070

EP7#,NP7#

LH

 1
85221-30120

EP7#,NP7#

RH

 1
Common parts
90099-00955
90119-06151
90176-08040
