EP71-PHHNS (1984)
Toyota Starlet

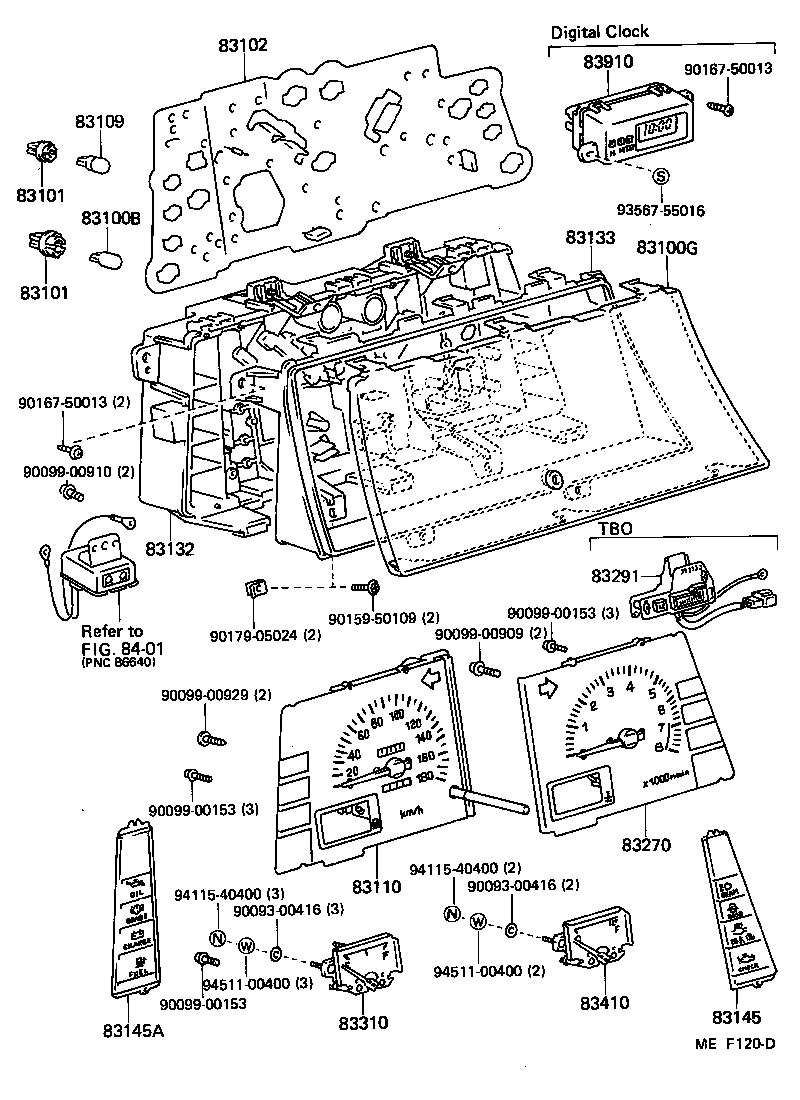

ILLUST NO. 1 OF 3(8410-8612)CD,CS,DX,STD,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
EP7#,NP7# 12V 3.4W,12V 3.4W |
7 | ||
| 90981-11018 |
EP7#,NP7# 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
11 | ||
| 90981-11018 |
EP71..RI,SE,SI,TBS,TOR 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
6 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-10350 |
EP7#..CD,DX,XL W/TRIP COUNTER & ANALOG.CLOCK |
1 | ||
| 83138-10410 |
EP71,NP70..XL W/TRIP COUNTER & ANALOG.CLOCK |
1 | ||
| 83138-10410 |
EP7#,NP7#..CD,DX,XL W/TRIP COUNTER & ANALOG.CLOCK |
1 | ||
| 83138-10050 |
EP71..RI,SE,SI,TBS,TOR |
1 | ||
| 83138-10390 |
EP71,NP70..RI,SE,SI,TBS,TOR |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
EP7#,NP7# 12V 3.4W |
10 | ||
| 83101-14040 |
EP71..RI,SE,SI,TBS,TOR 12V 1.4W |
6 | ||
| 83101-14040 |
EP7#,NP7# 12V 1.4W |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
EP7#,NP7# 12V 3.4W |
10 | ||
| 83101-14040 |
EP71..RI,SE,SI,TBS,TOR 12V 1.4W |
6 | ||
| 83101-14040 |
EP7#,NP7# 12V 1.4W |
11 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1C050 |
EP71..SE |
1 | ||
| 83247-1C450 |
EP71..DX,XL W/ANALOGUE CLOCK |
1 | ||
| 83247-1C450 |
EP71..XL W/ANALOGUE CLOCK |
1 | ||
| 83247-1C730 |
EP71..SE |
1 | ||
| 83247-10830 |
EP71..DX,XL W/ANALOGUE CLOCK |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24030 |
EP7#,NP7#..CBR,DSL 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
4 | ||
| 83109-24030 |
EP7#..CBR 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1C300 |
EP71..SE |
1 | ||
| 83110-1C170 |
EP7#..CD,DX,XL W/TRIP COUNTER |
1 | ||
| 83110-1C180 |
EP71..SE |
1 | ||
| 83110-1C380 |
EP7#..CD,DX,XL W/TRIP COUNTER |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-10450 |
EP71..DX,STD,XL |
1 | ||
| 83132-10830 |
EP71..RI,SE,SI,TBS,TOR |
1 | ||
| 83132-10690 |
EP71..DX,STD,XL |
1 | ||
| 83132-10570 |
EP71..RI,SE,SI |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-10750 |
EP7#,NP7#..CD,DX,XL W/TRIP COUNTER & ANALOG.CLOCK |
1 | ||
| 83133-10770 |
EP71,NP70..RI,SE,SI,TBS,TOR |
1 | ||
| 83133-10690 |
EP71..RI,SE,SI,TBS,TOR |
1 | ||
| 83133-10630 |
EP7#..CD,DX,XL W/TRIP COUNTER & ANALOG.CLOCK |
1 | ||
| 83133-10750 |
EP71,NP70..XL W/TRIP COUNTER & ANALOG.CLOCK |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-10250 |
EP71..SE |
1 | ||
| 83243-10230 |
EP7#..CD,CS,DX,STD,XL |
1 | ||
| 83243-10330 |
EP71,NP70..SE |
1 | ||
| 83243-10330 |
EP71..SE |
1 | ||
| 83243-10310 |
EP7#..CD,CS,DX,STD,XL |
1 | ||
| 83243-10310 |
EP7#,NP7#..CD,CS,DX,STD,XL |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-10190 |
EP71..SE |
1 | ||
| 83244-10150 |
EP7#..CD,CS,DX,STD,XL |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-14012 |
EP7#..CD,DX,XL ANALOGUE |
1 | ||
| 83909-14012 |
EP7#,NP7#..CD,DX,XL ANALOGUE |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-10140 |
EP7#..CD,CS,DX,SE,STD DIGITAL |
1 | ||
| 83910-10130 |
EP7#..CD,DX,XL ANALOGUE |
1 | ||
| 83910-10141 |
EP7#,NP7#..CD,CS,DX,SE,STD,TOR DIGITAL |
1 | ||
| 83910-10160 |
EP7#,NP7#..CD,DX,XL ANALOGUE |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-10140 |
EP7#..CD,CS,DX,SE,STD DIGITAL |
1 | ||
| 83910-10130 |
EP7#..CD,DX,XL ANALOGUE |
1 | ||
| 83910-10141 |
EP7#,NP7#..CD,CS,DX,SE,STD,TOR DIGITAL |
1 | ||
| 83910-10160 |
EP7#,NP7#..CD,DX,XL ANALOGUE |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-14012 |
EP7#,NP7#..CD,DX,XL ANALOGUE |
1 | ||
| 83919-14012 |
EP71,NP70..XL ANALOGUE |
1 | ||
| 83919-14012 |
EP7#..CD,DX,XL ANALOGUE |
1 | ||
| Common parts | ||||
| 90093-00416 | ||||
| 90099-00153 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90159-50109 | ||||
| 90167-50013 | ||||
| 90179-05024 | ||||
| 93567-55016 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 3(8410-8612)RI,SE,SI,TBS,TOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
EP7#,NP7# 12V 3.4W,12V 3.4W |
7 | ||
| 90981-11018 |
EP7#,NP7# 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
11 | ||
| 90981-11018 |
EP71..RI,SE,SI,TBS,TOR 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
6 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-10350 |
EP7#..CD,DX,XL W/TRIP COUNTER & ANALOG.CLOCK |
1 | ||
| 83138-10410 |
EP71,NP70..XL W/TRIP COUNTER & ANALOG.CLOCK |
1 | ||
| 83138-10410 |
EP7#,NP7#..CD,DX,XL W/TRIP COUNTER & ANALOG.CLOCK |
1 | ||
| 83138-10050 |
EP71..RI,SE,SI,TBS,TOR |
1 | ||
| 83138-10390 |
EP71,NP70..RI,SE,SI,TBS,TOR |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
EP7#,NP7# 12V 3.4W |
10 | ||
| 83101-14040 |
EP71..RI,SE,SI,TBS,TOR 12V 1.4W |
6 | ||
| 83101-14040 |
EP7#,NP7# 12V 1.4W |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
EP7#,NP7# 12V 3.4W |
10 | ||
| 83101-14040 |
EP71..RI,SE,SI,TBS,TOR 12V 1.4W |
6 | ||
| 83101-14040 |
EP7#,NP7# 12V 1.4W |
11 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1C050 |
EP71..SE |
1 | ||
| 83247-1C450 |
EP71..DX,XL W/ANALOGUE CLOCK |
1 | ||
| 83247-1C450 |
EP71..XL W/ANALOGUE CLOCK |
1 | ||
| 83247-1C730 |
EP71..SE |
1 | ||
| 83247-10830 |
EP71..DX,XL W/ANALOGUE CLOCK |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24030 |
EP7#,NP7#..CBR,DSL 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
4 | ||
| 83109-24030 |
EP7#..CBR 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1C300 |
EP71..SE |
1 | ||
| 83110-1C170 |
EP7#..CD,DX,XL W/TRIP COUNTER |
1 | ||
| 83110-1C180 |
EP71..SE |
1 | ||
| 83110-1C380 |
EP7#..CD,DX,XL W/TRIP COUNTER |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-10450 |
EP71..DX,STD,XL |
1 | ||
| 83132-10830 |
EP71..RI,SE,SI,TBS,TOR |
1 | ||
| 83132-10690 |
EP71..DX,STD,XL |
1 | ||
| 83132-10570 |
EP71..RI,SE,SI |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-10750 |
EP7#,NP7#..CD,DX,XL W/TRIP COUNTER & ANALOG.CLOCK |
1 | ||
| 83133-10770 |
EP71,NP70..RI,SE,SI,TBS,TOR |
1 | ||
| 83133-10690 |
EP71..RI,SE,SI,TBS,TOR |
1 | ||
| 83133-10630 |
EP7#..CD,DX,XL W/TRIP COUNTER & ANALOG.CLOCK |
1 | ||
| 83133-10750 |
EP71,NP70..XL W/TRIP COUNTER & ANALOG.CLOCK |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-10010 |
EP71..SE |
1 | ||
| 83145-10230 |
EP71..SE |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-10110 |
EP71..RI,SE,SI |
1 | ||
| 83145-10370 |
EP71..SE |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-10410 |
EP71..SE |
1 | ||
| 83242-10230 |
EP71..SE |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-10250 |
EP71..SE |
1 | ||
| 83243-10230 |
EP7#..CD,CS,DX,STD,XL |
1 | ||
| 83243-10330 |
EP71,NP70..SE |
1 | ||
| 83243-10330 |
EP71..SE |
1 | ||
| 83243-10310 |
EP7#..CD,CS,DX,STD,XL |
1 | ||
| 83243-10310 |
EP7#,NP7#..CD,CS,DX,STD,XL |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-10190 |
EP71..SE |
1 | ||
| 83244-10150 |
EP7#..CD,CS,DX,STD,XL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-10140 |
EP7#..CD,CS,DX,SE,STD DIGITAL |
1 | ||
| 83910-10130 |
EP7#..CD,DX,XL ANALOGUE |
1 | ||
| 83910-10141 |
EP7#,NP7#..CD,CS,DX,SE,STD,TOR DIGITAL |
1 | ||
| 83910-10160 |
EP7#,NP7#..CD,DX,XL ANALOGUE |
1 | ||
| Common parts | ||||
| 90093-00416 | ||||
| 90099-00153 | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90159-50109 | ||||
| 90167-50013 | ||||
| 90179-05024 | ||||
| 93567-55016 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
| Linked diagrams | ||||
| 8401 | ||||

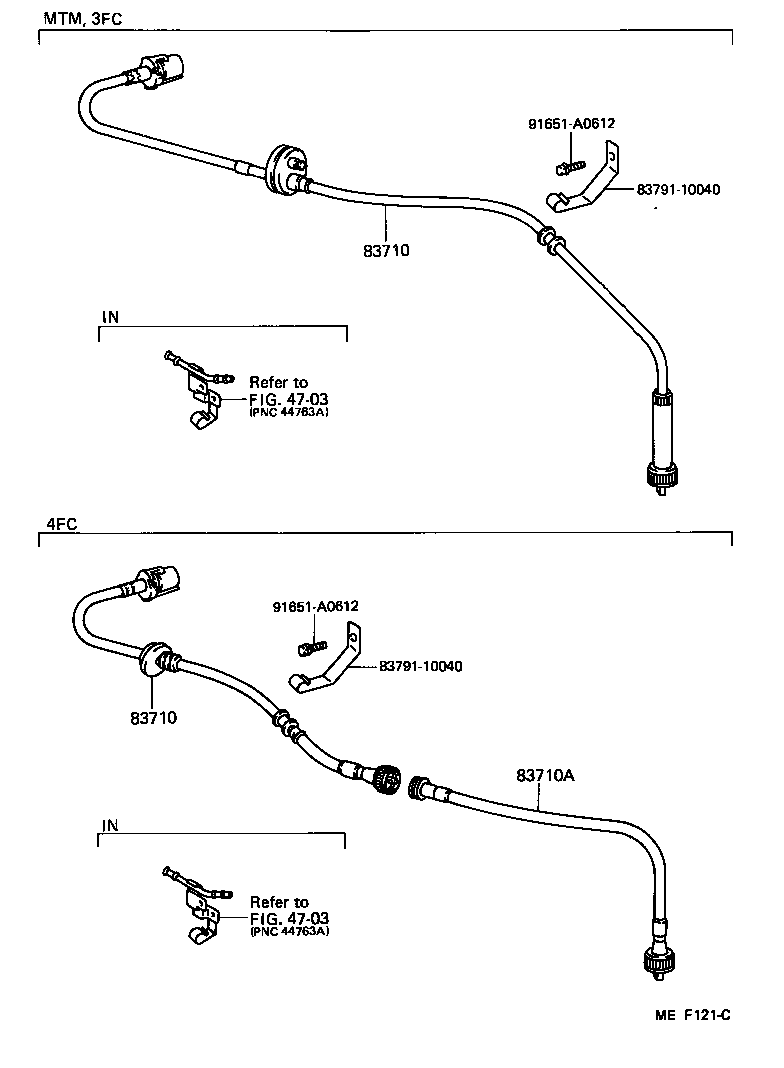

ILLUST NO. 2 OF 3(8410- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-10240 |
EP71..3FC |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-10240 |
EP71..3FC |
1 | ||
| Common parts | ||||
| 83791-10040 | ||||
| 91651-A0612 | ||||
| Linked diagrams | ||||
| 4703 | ||||
ILLUST NO. 1 OF 3(8612- )CD,CS,DX,STD,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
EP7#,NP7# 12V 3.4W,12V 3.4W |
7 | ||
| 90981-11018 |
EP7#,NP7# 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
11 | ||
| 90981-11018 |
EP71..RI,SE,SI,TBS,TOR 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
6 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-10350 |
EP7#..CD,DX,XL W/TRIP COUNTER & ANALOG.CLOCK |
1 | ||
| 83138-10410 |
EP71,NP70..XL W/TRIP COUNTER & ANALOG.CLOCK |
1 | ||
| 83138-10410 |
EP7#,NP7#..CD,DX,XL W/TRIP COUNTER & ANALOG.CLOCK |
1 | ||
| 83138-10050 |
EP71..RI,SE,SI,TBS,TOR |
1 | ||
| 83138-10390 |
EP71,NP70..RI,SE,SI,TBS,TOR |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
EP7#,NP7# 12V 3.4W |
10 | ||
| 83101-14040 |
EP71..RI,SE,SI,TBS,TOR 12V 1.4W |
6 | ||
| 83101-14040 |
EP7#,NP7# 12V 1.4W |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
EP7#,NP7# 12V 3.4W |
10 | ||
| 83101-14040 |
EP71..RI,SE,SI,TBS,TOR 12V 1.4W |
6 | ||
| 83101-14040 |
EP7#,NP7# 12V 1.4W |
11 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1C050 |
EP71..SE |
1 | ||
| 83247-1C450 |
EP71..DX,XL W/ANALOGUE CLOCK |
1 | ||
| 83247-1C450 |
EP71..XL W/ANALOGUE CLOCK |
1 | ||
| 83247-1C730 |
EP71..SE |
1 | ||
| 83247-10830 |
EP71..DX,XL W/ANALOGUE CLOCK |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24030 |
EP7#,NP7#..CBR,DSL 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
4 | ||
| 83109-24030 |
EP7#..CBR 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1C300 |
EP71..SE |
1 | ||
| 83110-1C170 |
EP7#..CD,DX,XL W/TRIP COUNTER |
1 | ||
| 83110-1C180 |
EP71..SE |
1 | ||
| 83110-1C380 |
EP7#..CD,DX,XL W/TRIP COUNTER |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-10450 |
EP71..DX,STD,XL |
1 | ||
| 83132-10830 |
EP71..RI,SE,SI,TBS,TOR |
1 | ||
| 83132-10690 |
EP71..DX,STD,XL |
1 | ||
| 83132-10570 |
EP71..RI,SE,SI |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-10750 |
EP7#,NP7#..CD,DX,XL W/TRIP COUNTER & ANALOG.CLOCK |
1 | ||
| 83133-10770 |
EP71,NP70..RI,SE,SI,TBS,TOR |
1 | ||
| 83133-10690 |
EP71..RI,SE,SI,TBS,TOR |
1 | ||
| 83133-10630 |
EP7#..CD,DX,XL W/TRIP COUNTER & ANALOG.CLOCK |
1 | ||
| 83133-10750 |
EP71,NP70..XL W/TRIP COUNTER & ANALOG.CLOCK |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-10250 |
EP71..SE |
1 | ||
| 83243-10230 |
EP7#..CD,CS,DX,STD,XL |
1 | ||
| 83243-10330 |
EP71,NP70..SE |
1 | ||
| 83243-10330 |
EP71..SE |
1 | ||
| 83243-10310 |
EP7#..CD,CS,DX,STD,XL |
1 | ||
| 83243-10310 |
EP7#,NP7#..CD,CS,DX,STD,XL |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-14012 |
EP7#..CD,DX,XL ANALOGUE |
1 | ||
| 83909-14012 |
EP7#,NP7#..CD,DX,XL ANALOGUE |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-10140 |
EP7#..CD,CS,DX,SE,STD DIGITAL |
1 | ||
| 83910-10130 |
EP7#..CD,DX,XL ANALOGUE |
1 | ||
| 83910-10141 |
EP7#,NP7#..CD,CS,DX,SE,STD,TOR DIGITAL |
1 | ||
| 83910-10160 |
EP7#,NP7#..CD,DX,XL ANALOGUE |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-10140 |
EP7#..CD,CS,DX,SE,STD DIGITAL |
1 | ||
| 83910-10130 |
EP7#..CD,DX,XL ANALOGUE |
1 | ||
| 83910-10141 |
EP7#,NP7#..CD,CS,DX,SE,STD,TOR DIGITAL |
1 | ||
| 83910-10160 |
EP7#,NP7#..CD,DX,XL ANALOGUE |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-14012 |
EP7#,NP7#..CD,DX,XL ANALOGUE |
1 | ||
| 83919-14012 |
EP71,NP70..XL ANALOGUE |
1 | ||
| 83919-14012 |
EP7#..CD,DX,XL ANALOGUE |
1 | ||
| Common parts | ||||
| 90093-00416 | ||||
| 90099-00910 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90159-50109 | ||||
| 90167-50013 | ||||
| 90179-05024 | ||||
| 90183-05103 | ||||
| 93567-55018 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 3(8612- )RI,SE,SI,TBS,TOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
EP7#,NP7# 12V 3.4W,12V 3.4W |
7 | ||
| 90981-11018 |
EP7#,NP7# 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
11 | ||
| 90981-11018 |
EP71..RI,SE,SI,TBS,TOR 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
6 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
EP7#,NP7# 12V 3.4W,12V 3.4W |
7 | ||
| 90981-11018 |
EP7#,NP7# 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
11 | ||
| 90981-11018 |
EP71..RI,SE,SI,TBS,TOR 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
6 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-10350 |
EP7#..CD,DX,XL W/TRIP COUNTER & ANALOG.CLOCK |
1 | ||
| 83138-10410 |
EP71,NP70..XL W/TRIP COUNTER & ANALOG.CLOCK |
1 | ||
| 83138-10410 |
EP7#,NP7#..CD,DX,XL W/TRIP COUNTER & ANALOG.CLOCK |
1 | ||
| 83138-10050 |
EP71..RI,SE,SI,TBS,TOR |
1 | ||
| 83138-10390 |
EP71,NP70..RI,SE,SI,TBS,TOR |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
EP7#,NP7# 12V 3.4W |
10 | ||
| 83101-14040 |
EP71..RI,SE,SI,TBS,TOR 12V 1.4W |
6 | ||
| 83101-14040 |
EP7#,NP7# 12V 1.4W |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
EP7#,NP7# 12V 3.4W |
10 | ||
| 83101-14040 |
EP71..RI,SE,SI,TBS,TOR 12V 1.4W |
6 | ||
| 83101-14040 |
EP7#,NP7# 12V 1.4W |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
EP7#,NP7# 12V 3.4W |
10 | ||
| 83101-14040 |
EP71..RI,SE,SI,TBS,TOR 12V 1.4W |
6 | ||
| 83101-14040 |
EP7#,NP7# 12V 1.4W |
11 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1C050 |
EP71..SE |
1 | ||
| 83247-1C450 |
EP71..DX,XL W/ANALOGUE CLOCK |
1 | ||
| 83247-1C450 |
EP71..XL W/ANALOGUE CLOCK |
1 | ||
| 83247-1C730 |
EP71..SE |
1 | ||
| 83247-10830 |
EP71..DX,XL W/ANALOGUE CLOCK |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24030 |
EP7#,NP7#..CBR,DSL 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
4 | ||
| 83109-24030 |
EP7#..CBR 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1C300 |
EP71..SE |
1 | ||
| 83110-1C170 |
EP7#..CD,DX,XL W/TRIP COUNTER |
1 | ||
| 83110-1C180 |
EP71..SE |
1 | ||
| 83110-1C380 |
EP7#..CD,DX,XL W/TRIP COUNTER |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-10450 |
EP71..DX,STD,XL |
1 | ||
| 83132-10830 |
EP71..RI,SE,SI,TBS,TOR |
1 | ||
| 83132-10690 |
EP71..DX,STD,XL |
1 | ||
| 83132-10570 |
EP71..RI,SE,SI |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-10750 |
EP7#,NP7#..CD,DX,XL W/TRIP COUNTER & ANALOG.CLOCK |
1 | ||
| 83133-10770 |
EP71,NP70..RI,SE,SI,TBS,TOR |
1 | ||
| 83133-10690 |
EP71..RI,SE,SI,TBS,TOR |
1 | ||
| 83133-10630 |
EP7#..CD,DX,XL W/TRIP COUNTER & ANALOG.CLOCK |
1 | ||
| 83133-10750 |
EP71,NP70..XL W/TRIP COUNTER & ANALOG.CLOCK |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-10010 |
EP71..SE |
1 | ||
| 83145-10230 |
EP71..SE |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-10110 |
EP71..RI,SE,SI |
1 | ||
| 83145-10370 |
EP71..SE |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-10410 |
EP71..SE |
1 | ||
| 83242-10230 |
EP71..SE |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-10250 |
EP71..SE |
1 | ||
| 83243-10230 |
EP7#..CD,CS,DX,STD,XL |
1 | ||
| 83243-10330 |
EP71,NP70..SE |
1 | ||
| 83243-10330 |
EP71..SE |
1 | ||
| 83243-10310 |
EP7#..CD,CS,DX,STD,XL |
1 | ||
| 83243-10310 |
EP7#,NP7#..CD,CS,DX,STD,XL |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-10140 |
EP7#..CD,CS,DX,SE,STD DIGITAL |
1 | ||
| 83910-10130 |
EP7#..CD,DX,XL ANALOGUE |
1 | ||
| 83910-10141 |
EP7#,NP7#..CD,CS,DX,SE,STD,TOR DIGITAL |
1 | ||
| 83910-10160 |
EP7#,NP7#..CD,DX,XL ANALOGUE |
1 | ||
| Common parts | ||||
| 90093-00416 | ||||
| 90099-00910 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00941 | ||||
| 90159-50109 | ||||
| 90167-50013 | ||||
| 90179-05024 | ||||
| 93315-14014 | ||||
| 93567-55018 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
