EP71-PHHNS (1984)
Toyota Starlet
Production
Oct 1984
-
Dec 1989
Engine
2ELU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8410- )2EL#

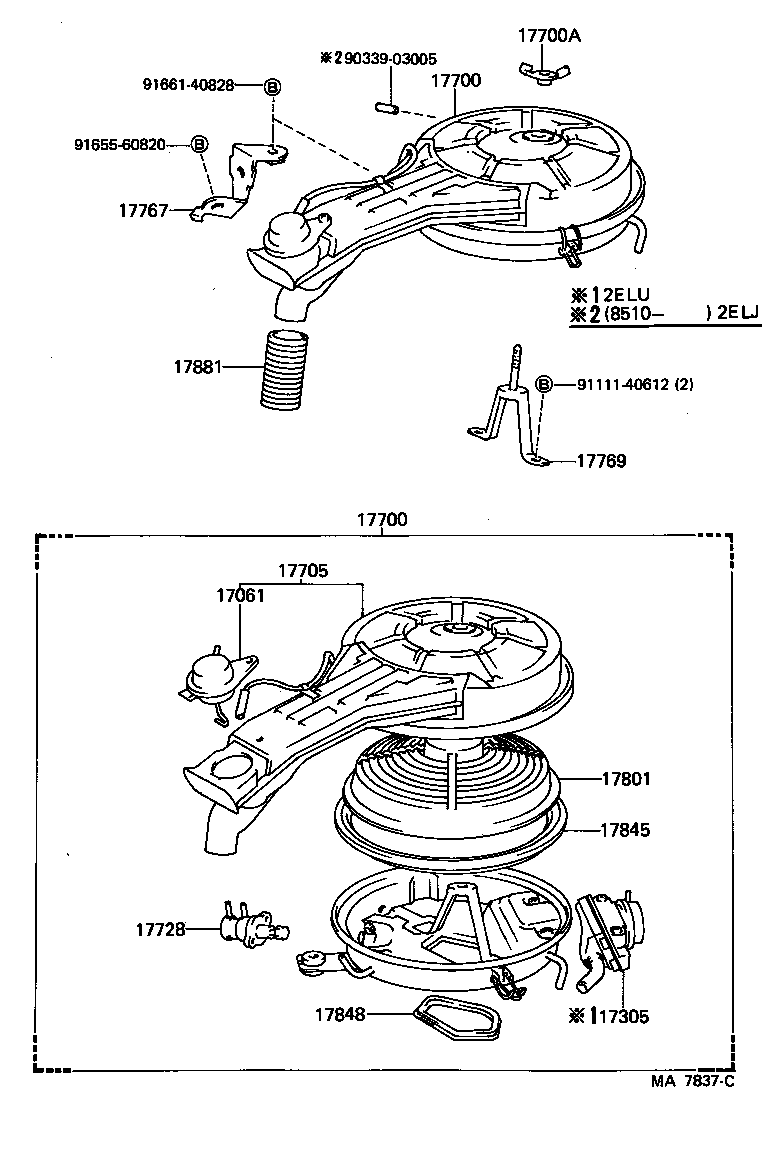

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-11010 |
2EL#..EP7# |
1 | ||
| 17305 - VALVE SUB-ASSY, REED | ||||
| 17350-11010 |
2ELU..EP71 |
1 | ||
| 17350-11011 |
2ELU..EP71 |
1 | ||
| 17350-11040 |
2ELU..EP71 |
1 | ||
| 17350-11041 |
2ELU..EP71 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-11172 |
2ELU..EP71 |
1 | ||
| 17700-11171 |
2ELU..EP71 |
1 | ||
| 17700-11170 |
2ELU..EP71 |
1 | ||
| 17700-11173 |
2ELU..EP71 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-11172 |
2ELU..EP71 |
1 | ||
| 17700-11171 |
2ELU..EP71 |
1 | ||
| 17700-11170 |
2ELU..EP71 |
1 | ||
| 17700-11173 |
2ELU..EP71 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06009 |
2EL#..EP7# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-11160 |
2EL#..EP7# |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-11020 |
2ELU..EP71 |
1 | ||
| 17728-11050 |
2ELU..EP71 |
1 | ||
| 17767 - BRACKET, AIR CLEANER | ||||
| 17771-11010 |
2EL#..EP7# |
1 | ||
| 17769 - SUPPORT, AIR CLEANER | ||||
| 17769-11020 |
2EL#..EP7# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-10030 |
2EL#..EP7# |
1 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-10020 |
2EL#..EP7# |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-15010 |
2EL#..EP7# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-10030 |
2EL#..EP7# |
1 | ||
| 17881-10031 |
2EL#..EP7# |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 91111-40612 | ||||
| 91655-60820 | ||||
| 91661-40828 | ||||
