EP71-PHHDS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

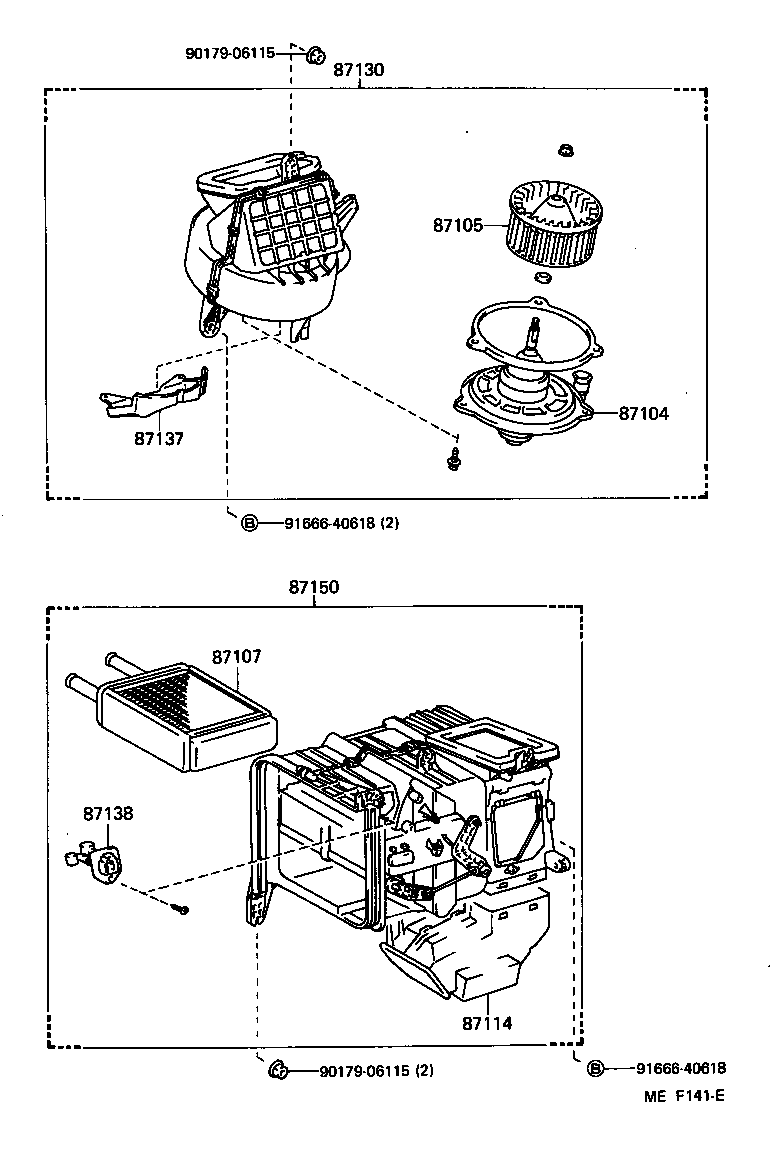

ILLUST NO. 1 OF 2(8410- )

Click highlighted areas on diagram

diagram 87104 87105 87107 87114 87130 87137 87138 87150 9017906115 9017906115 9166640618 9166640618
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-89110

EP7#,NP7#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030

EP7#,NP7#

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-10190

EP7#

COLD SPEC

 1
87107-10180

EP7#

 1
87114 - COVER, HEATER
87114-10050

EP7#,NP7#

COLD SPEC

 1
87114-10040

EP7#,NP7#

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-10170

EP7#

COLD SPEC

 1
87130-10171

EP7#,NP7#

COLD SPEC

 1
87130-10110

EP7#

 1
87130-10111

EP7#,NP7#

 1
87137 - COVER, HEATER BLOWER
87137-10010

EP7#,NP7#

 1
87138 - RESISTOR, HEATER BLOWER
88635-10030

EP71,NP70..SE,SI,TBS

W/*AAC

 1
87138-10090

EP7#,NP7#

 1
87150 - RADIATOR ASSY, HEATER
87150-10130

EP7#

 1
87150-10140

EP7#

COLD SPEC

 1
Common parts
90179-06115
91666-40618

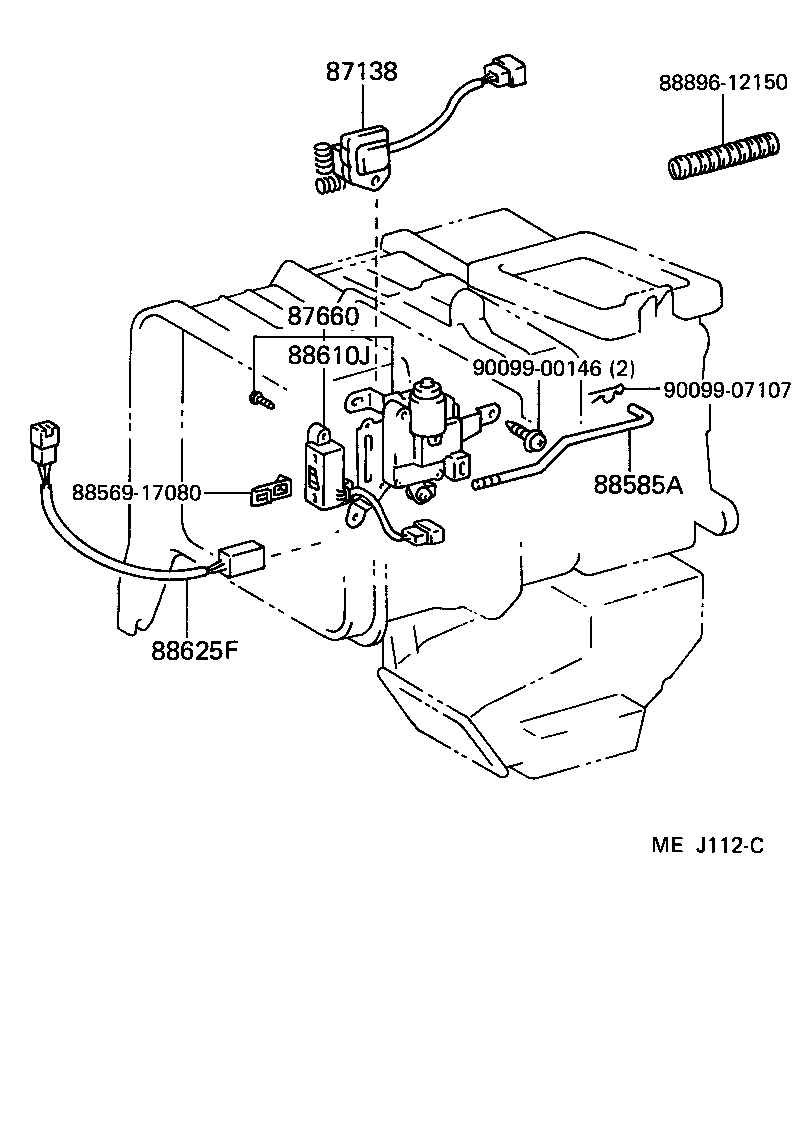

ILLUST NO. 2 OF 2(8612- )

Click highlighted areas on diagram

diagram 87138 87660 8856917080 88585A 88610J 88625F 8889612150 9009900146 9009907107
Part # Description Qty Price
87138 - RESISTOR, HEATER BLOWER
88635-10030

EP71,NP70..SE,SI,TBS

W/*AAC

 1
87138-10090

EP7#,NP7#

 1
87660 - SERVO ASSY, AIR CONDITIONER
88660-10021

EP71,NP70..SE,SI,TBS

W/*AAC

 1
88660-10020

EP71..SE,SI,TBS

W/*AAC

 1
88585A - SHAFT, HEATER AIR DAMPER
88585-10010

EP71,NP70..SE,SI,TBS

W/*AAC

 1
88610J - SWITCH ASSY, CONTROL
88610-10020

EP71,NP70..SE,SI,TBS

W/*AAC

 1
88625F - SENSOR, TEMPERATURE
88625-10070

EP71,NP70..SE,SI,TBS

W/*AAC

 1
Common parts
88569-17080
88896-12150
90099-00146
90099-07107
