EP71-PHHDS (1984)

Toyota Starlet

Production Oct 1984 - Dec 1989
Engine 2ELU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8410- )EP7#

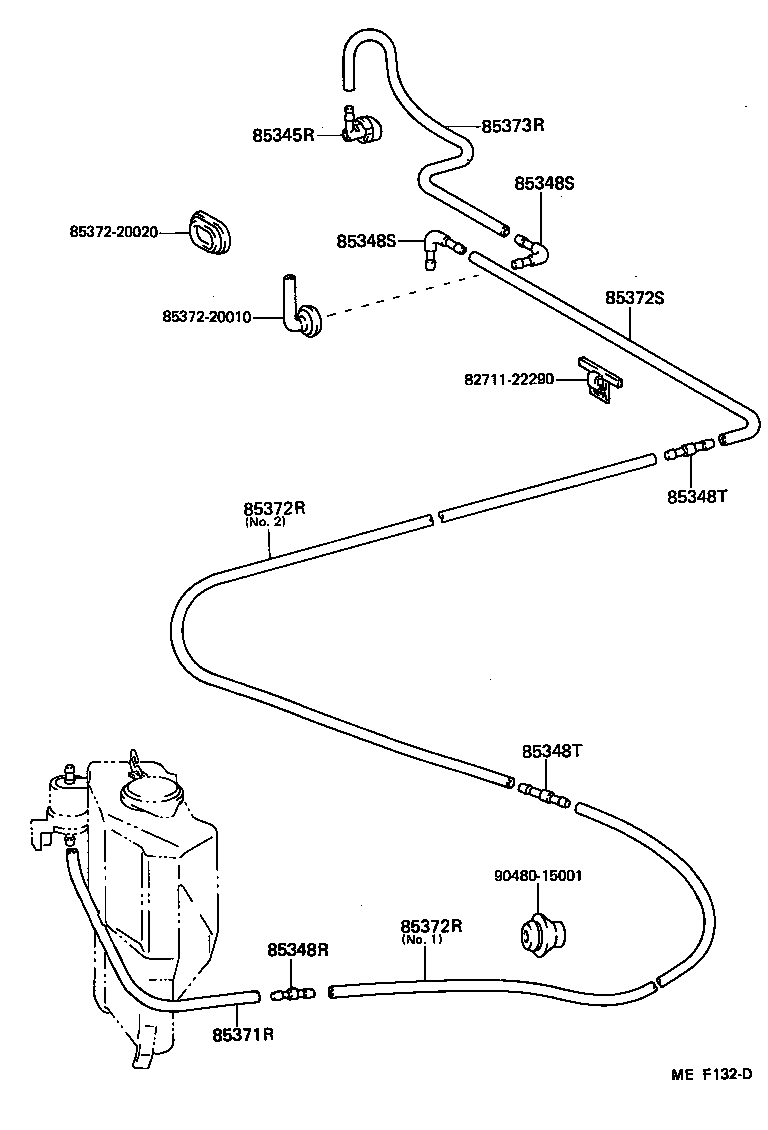

Click highlighted areas on diagram

diagram 8271122290 85345R 85348R 85348S 85348S 85348T 85348T 85371R 8537220010 8537220020 85372R 85372R 85372S 85373R 9048015001
Part # Description Qty Price
85345R - NOZZLE, REAR WASHER
85035-12160

EP7#,NP7#..CD,DX,RI,SE,SI,TBS,TOR,XL

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85355-87201

EP7#..CD,DX,RI,SE,SI,TBS,TOR,XL

 1
85349-89122

EP7#..CD,DX,RI,SE,SI,TBS,TOR,XL

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20200

EP7#,NP7#..CD,DX,RI,SE,SI,TBS,TOR,XL

 2
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20200

EP7#,NP7#..CD,DX,RI,SE,SI,TBS,TOR,XL

 2
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

EP7#,NP7#..CD,DX,RI,SE,SI,TBS,TOR,XL

 2
85355-87201

EP7#..CD,DX,RI,SE,SI,TBS,TOR,XL

 2
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

EP7#,NP7#..CD,DX,RI,SE,SI,TBS,TOR,XL

 2
85355-87201

EP7#..CD,DX,RI,SE,SI,TBS,TOR,XL

 2
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-06013

EP7#..CD,DX,RI,SE,SI,TBS,TOR,XL

*H,L=310

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
85354-10230

EP7#,NP7#..CD,DX,RI,SE,SI,TBS,TOR,XL

NO.2,L=2300

 1
90446-07001

EP7#..CD,DX,RI,SE,SI,TBS,TOR,XL

*H,L=780,NO.1

 1
85343-10090

EP7#..CD,DX,RI,SE,SI,TBS,TOR,XL

長さ=2200,NO.2

 1
90446-06006

EP7#..CD,DX,RI,SE,SI,TBS,TOR,XL

NO.1,*H,L=1200

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
85354-10230

EP7#,NP7#..CD,DX,RI,SE,SI,TBS,TOR,XL

NO.2,L=2300

 1
90446-07001

EP7#..CD,DX,RI,SE,SI,TBS,TOR,XL

*H,L=780,NO.1

 1
85343-10090

EP7#..CD,DX,RI,SE,SI,TBS,TOR,XL

長さ=2200,NO.2

 1
90446-06006

EP7#..CD,DX,RI,SE,SI,TBS,TOR,XL

NO.1,*H,L=1200

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90446-06013

EP7#..CD,DX,RI,SE,SI,TBS,TOR,XL

*H,L=400

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
85343-10100

EP7#,NP7#..CD,DX,RI,SE,SI,TBS,TOR,XL

長さ=150

 1
Common parts
82711-22290
85372-20010
85372-20020
90480-15001
