EP71-PHHDS (1984)
Toyota Starlet
Production
Oct 1984
-
Dec 1989
Engine
2ELU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8410- )2ELU

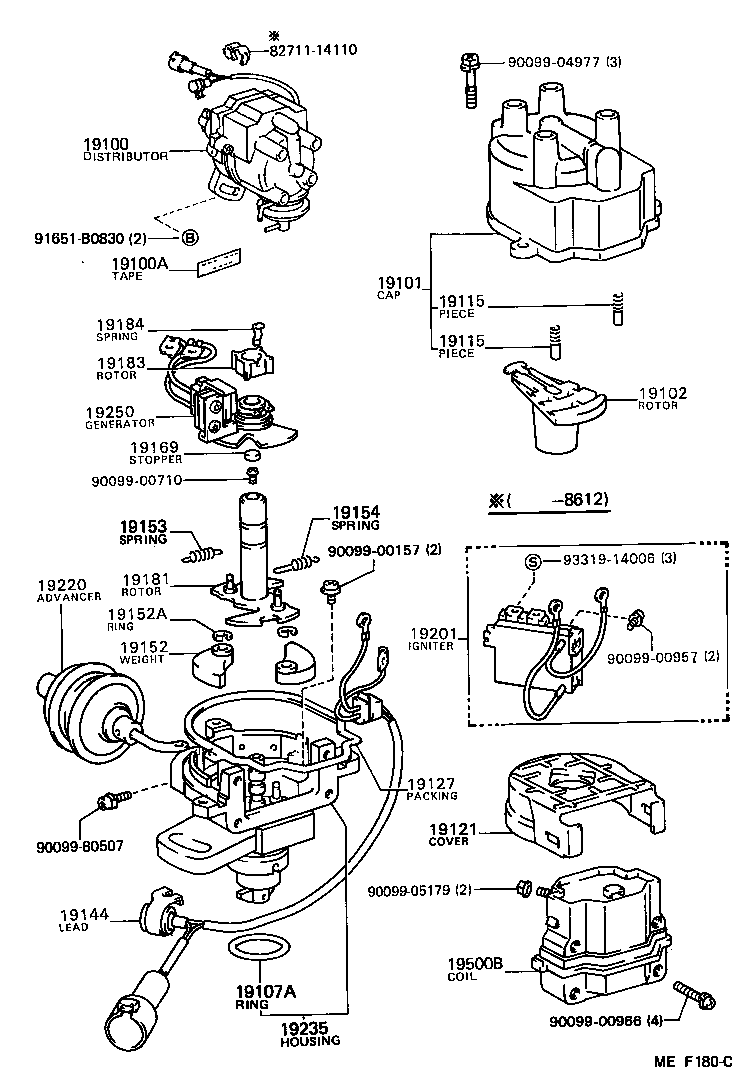

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19020-11012 |
2ELU..EP71 |
1 | ||
| 19020-11011 |
2ELU..EP71 |
1 | ||
| 19020-11010 |
2ELU..EP71 |
1 | ||
| 19100A - TAPE, SEALING | ||||
| 90919-24004 |
2E#..EP7# |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-11010 |
2ELU..EP71 |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-11010 |
2ELU..EP71 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 96711-35030 |
2E#..EP7# |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-63010 |
2ELU..EP71 |
2 | ||
| 19115-63010 |
2EELU,2ELU..EP71 |
2 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-63010 |
2ELU..EP71 |
2 | ||
| 19115-63010 |
2EELU,2ELU..EP71 |
2 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-11080 |
2ELU..EP71 |
1 | ||
| 19121-11010 |
2ELU..EP71 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-11010 |
2ELU..EP71 |
1 | ||
| 19127-15120 |
2ELU..EP71 |
1 | ||
| 19144 - LEAD, DISTRIBUTOR BREAKER | ||||
| 19144-11080 |
2ELU..EP71 |
1 | ||
| 19144-11010 |
2ELU..EP71 |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-15160 |
2EL#..EP7# |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07122 |
2EL#..EP7# |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-11010 |
2ELU..EP71 |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-11010 |
2ELU..EP71 |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-63011 |
2ELU..EP71 |
1 | ||
| 19181 - ROTOR, DISTRIBUTOR, SIGNAL | ||||
| 19181-11018 |
2ELU..EP71 |
1 | ||
| 19181-11010 |
2ELU..EP71 |
1 | ||
| 19181-11014 |
2ELU..EP71 |
1 | ||
| 19183 - ROTOR, SIGNAL | ||||
| 19183-15010 |
2ELU..EP71 |
1 | ||
| 19184 - SPRING, ROTOR SET | ||||
| 19184-63010 |
2ELU..EP71 |
1 | ||
| 19201 - IGNITER | ||||
| 89620-10090 |
2ELU..EP71 |
1 | ||
| 89620-12340 |
2ELU..EP71 |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-11010 |
2ELU..EP71 |
1 | ||
| 19235 - HOUSING, DISTRIBUTOR | ||||
| 19235-11080 |
2ELU..EP71 |
1 | ||
| 19235-11010 |
2ELU..EP71 |
1 | ||
| 19250 - GENERATOR ASSY, SIGNAL | ||||
| 19251-15091 |
2ELU..EP71 |
1 | ||
| 19251-16100 |
2ELU..EP71 |
1 | ||
| 19500B - COIL ASSY, IGNITION | ||||
| 90919-02164 |
2ELU..EP71 |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 90099-00157 | ||||
| 90099-00710 | ||||
| 90099-00957 | ||||
| 90099-00966 | ||||
| 90099-04977 | ||||
| 90099-05179 | ||||
| 90099-80507 | ||||
| 91651-B0830 | ||||
| 93319-14006 | ||||
